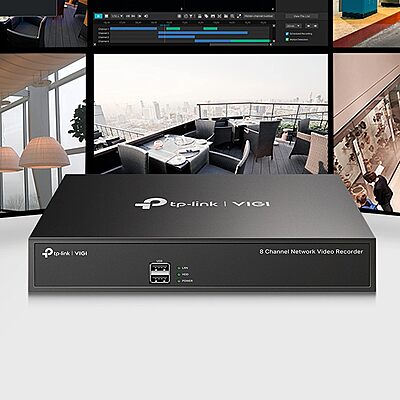

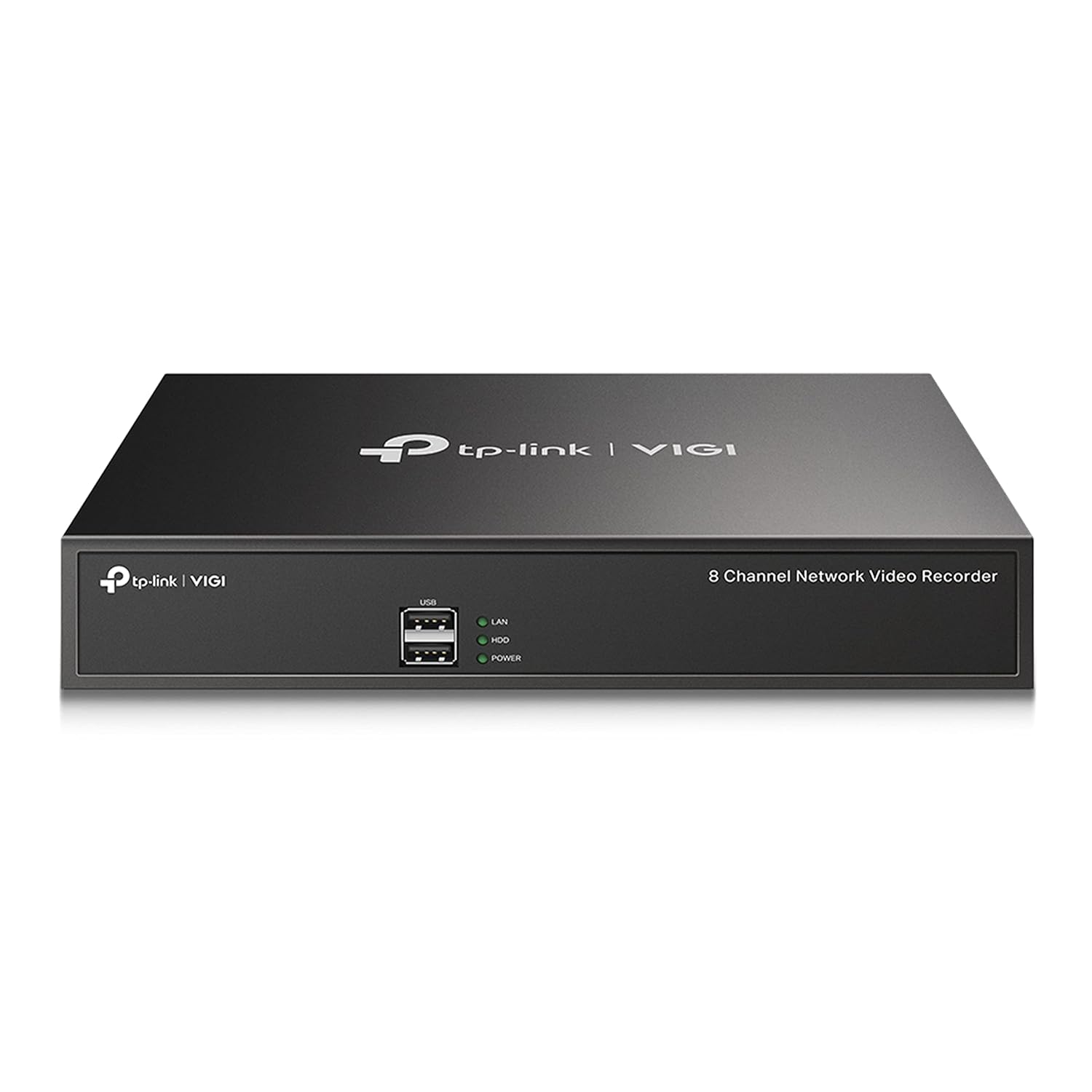

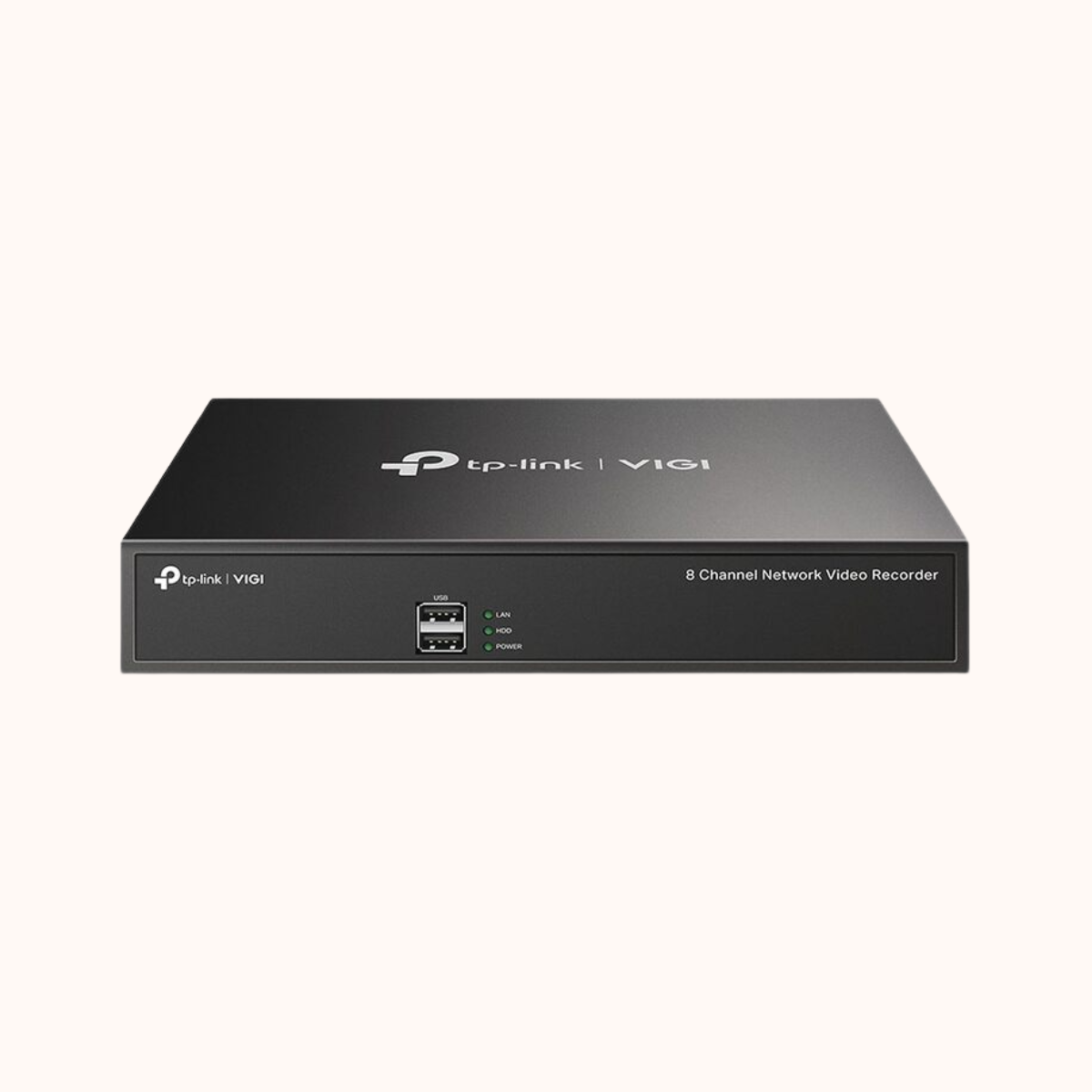

TP-Link VIGI 8 Channel Network Video Recorder-NVR1008H

Video and Audio

IP Video Input

8-Channel

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

60 Mbps

HDMI Output Resolution

3840 × 2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output Resolution

1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode

HDMI/VGA Simultaneous Output

Multi-View Display

1/4/6/8

Decoding

Audio Compression

G.711A/G.711U/G.726

Decoding Format

H.265+/H.265/ H.264+/H.264

Video Compression

H.265+/H.265/ H.264+/H.264

Record Resolution

8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Live View/Playback Resolution

8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous Playback

4-Channel (1-ch @ 8MP, 2-ch @ 4MP, 4-ch @ 2MP)

Record Management

Record Mode

Manual Recording, Scheduling Recording, Motion Detection Recording

Playback Mode

Instant Playback, Regular Playback, Tag Playback, Event Playback

Backup Mode

Regular Backup, Video Clip Backup

Playback Function

Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

Network

Protocol

TCP/IP, DHCP, DNS, NTP, UPnP

Mobile Phone Access

Android, iOS

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

60 Mbps

Web Browser

Chrome (57+), Firefox (52+), Edge (91+)

Interoperability

ONVIF, CGI

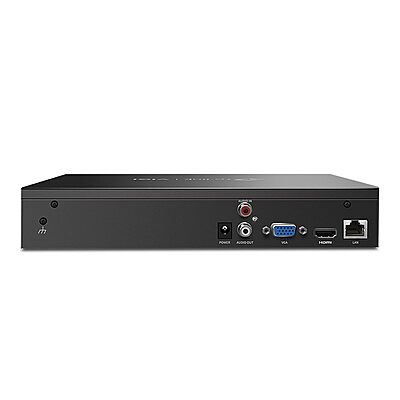

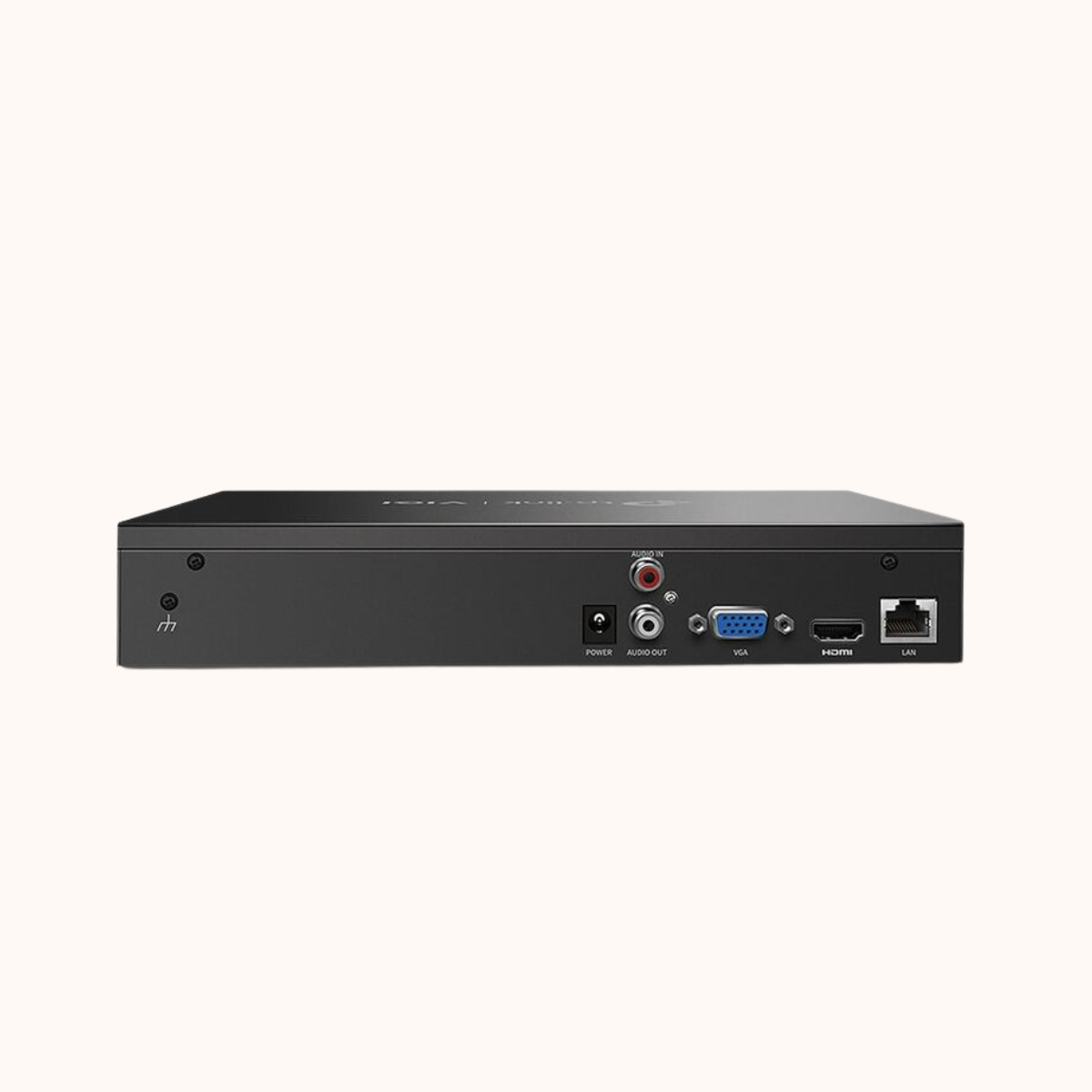

External Interface

Network Interface

1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface

2× USB 2.0

Audio Interface

1, Audio In; 1, Audio Out

Alarm In/Out

N/A

Serial Interface

N/A

Power

1× DC Jack

Reset Button

1

HDMI

1

VGA

1

Hard Disk

SATA

1 SATA Interface

Capacity

Up to 16 TB

Alarm

General Alarm

Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection

Anomaly Alarm

Video Loss, Offline and IP Conflict, Disk Exception, Login Exception

Alarm Linkage

Recording, White Light Alarm, Buzzer, Log, Audible Alarm

General

Operating Temperature

-10–55 °C

Storage Temperature

-40–70 °C

Storage Humidity

10%~90% RH Non-Condensing

Weight

578.5 g

Package Content

VIGI Network Video Recorder, Power Adapter, HDD Screws, Mouse, Quick Installation Guide

Working Temperature

NVR: -10–55 °C, Power Adapter: 0–40 °C

Working Humidity

10%~90% RH Non-Condensing

Dimensions (W x D x H)

246.2 × 148.2 × 45 mm

External Power Supply

DC 12V/1.5A

Net Weight

0.59 Kg

Gross Weight

0.95 Kg

Max. Power Consumption

4.25 W (without disk)

Certifications

CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Video/Image

Video Input

8-Channel IP Video Input, up to 8 MP Resolution

Video Output

Recording Resolution: 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

HDMI/VGA Output Resolution

3840 × 2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Recording Resolution

8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
