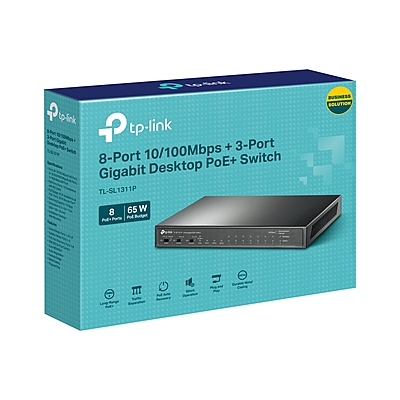

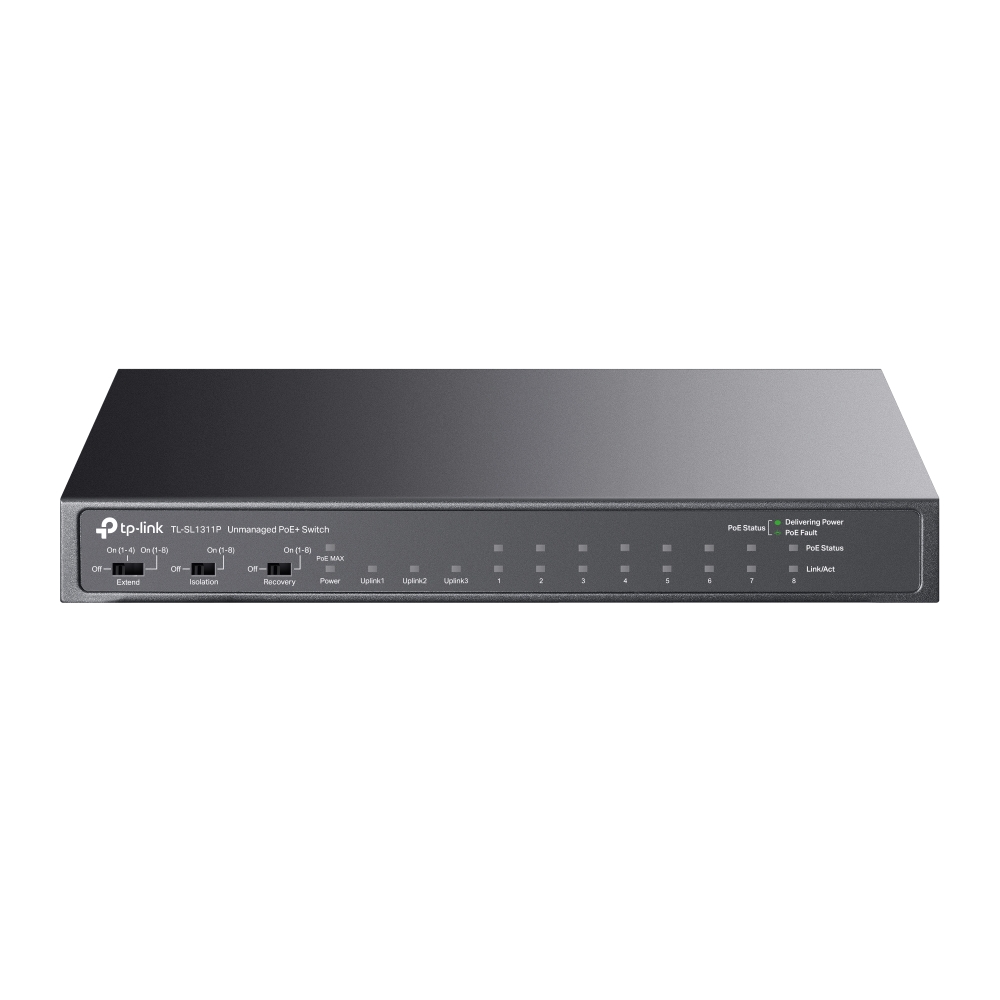

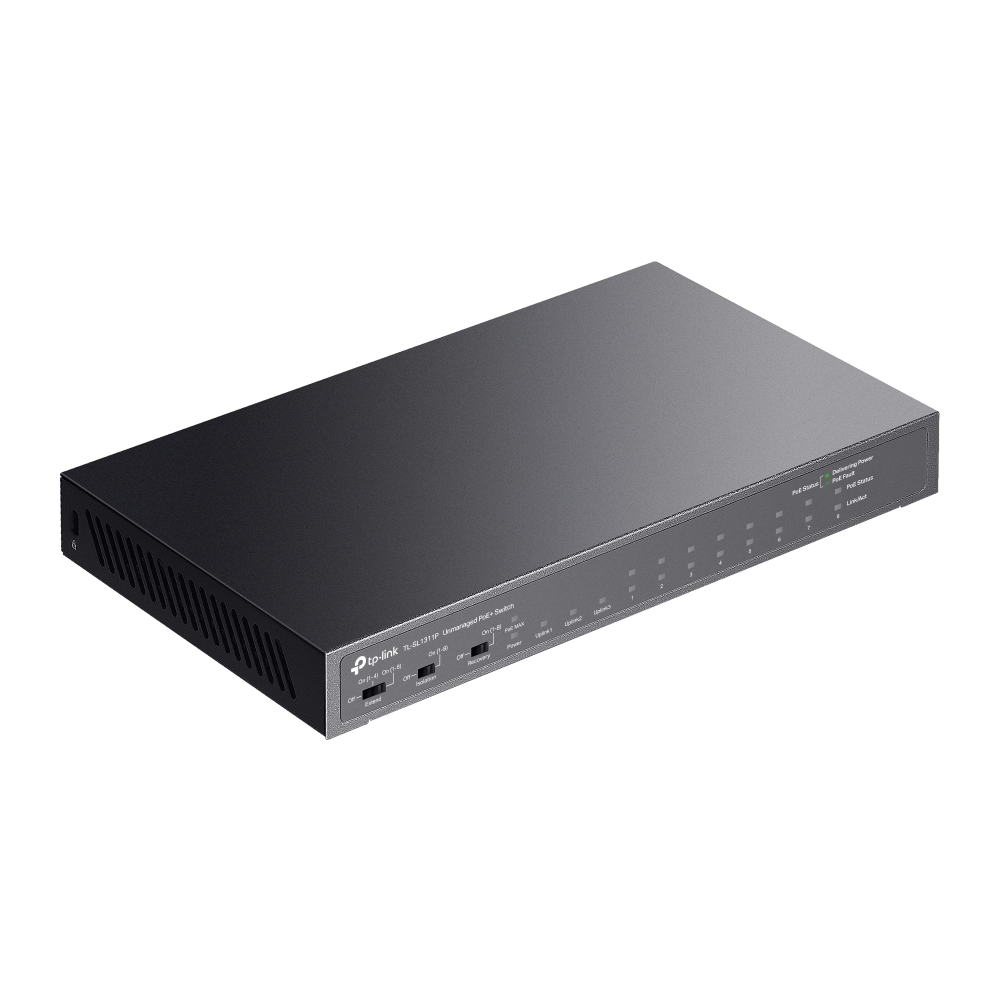

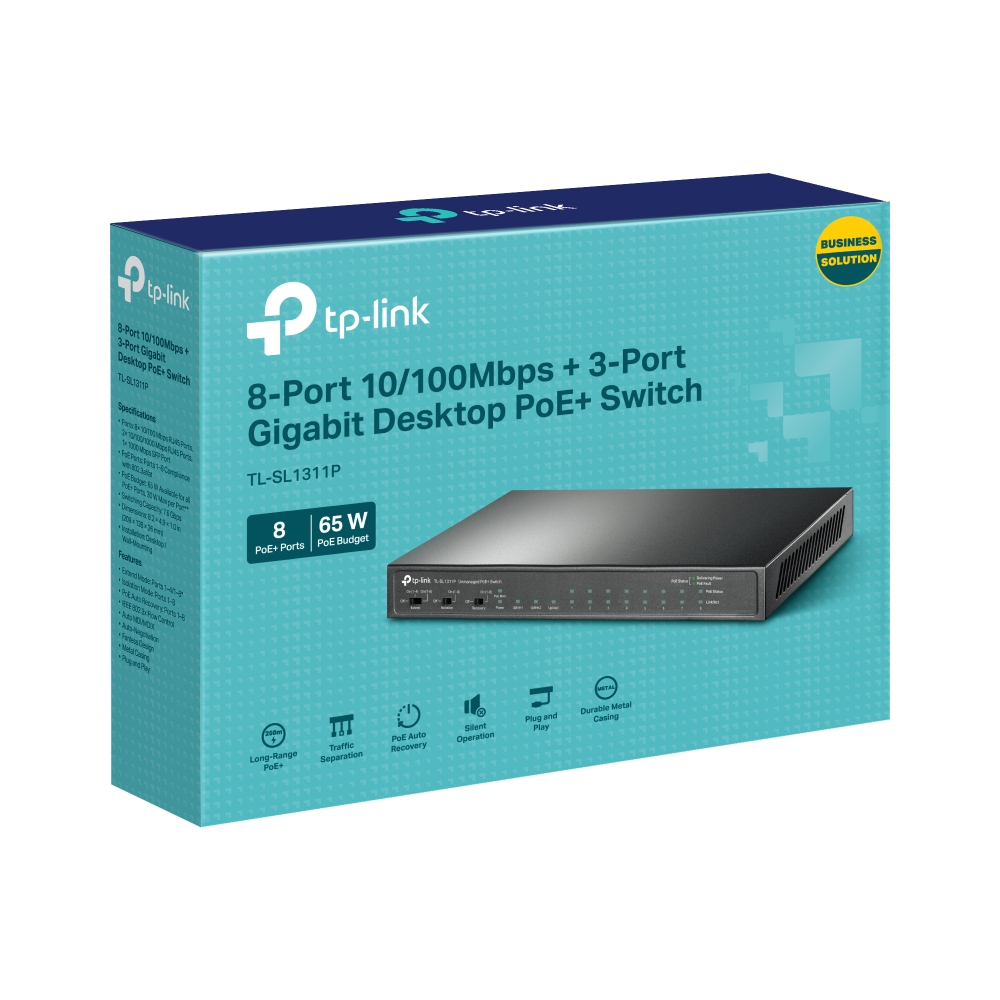

TP-Link 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+( TL-SL1311P ))
Key Point | Description |
|---|---|
PoE+ Ports | 8 × PoE+ ports, providing data and power on individual cables. |
PoE Power Support | Up to 30 W per PoE port, 65 W total for all 8 PoE ports. |
Extended Range | Data and power transmission range up to 250 meters in Extend Mode. |
Isolation Mode | One-click client traffic separation for higher security and performance. |
Fanless Design | Reduces power consumption and operates silently. |
Category | Details |
|---|---|
Interface | 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port, Auto Negotiation, Auto MDI/MDIX |
Network Media | 10BASE-T: UTP Cat 3, 4, 5 (Max 100m); 100BASE-TX: UTP Cat 5, 5e (Max 100m); EIA/TIA-568 100Ω STP (Max 100m) |
Fan Quantity | Fanless |
Physical Security Lock | Yes |
External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
Packet Forwarding Rate | 5.6544 Mpps |
PoE Ports (RJ45) | 8 Ports (1–8), Power Supply: 65 W, IEEE 802.3af/at compliant |
MAC Address Table | 2K |
Jumbo Frame | 16 KB |
Switching Capacity | 7.6 Gbps |
Dimensions (W x D x H) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
Max Power Consumption | 5.61 W (No PD connected, 220 V/50 Hz), 77.32 W (With 65 W PD connected, 110 V/50 Hz) |
Max Heat Dissipation | 19.13 BTU/h (No PD connected), 263.7 BTU/h (With 65 W PD connected) |
Advanced Features | IEEE 802.3af/at Compliant PDs, Extend Mode (Up to 250m PoE), Isolation Mode, PoE Auto Recovery, Mac Address Auto-Learning and Auto-Aging |
Transmission Method | Store-and-Forward |
General
- TypesUnManaged
- Switching Capacity7.6 Gbit/s
- Port TypeRJ45
- No. Of SFP Ports1
- No. Of RJ45 Ports8
- Rack MountingNo
