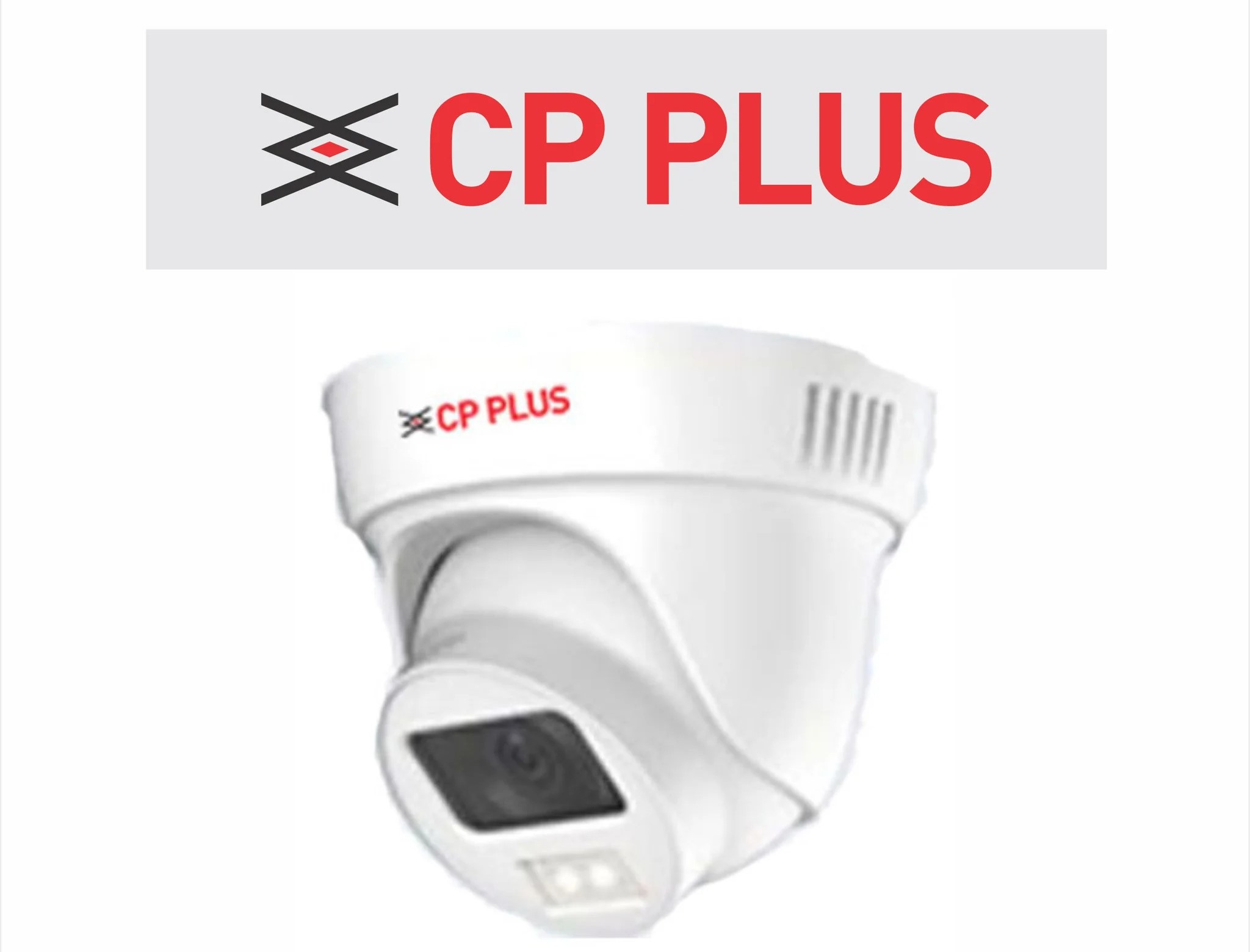

CP PLUS Full-color Guard+ Audio Dome Camera (CP-GPC-DA24PL2C-SE)

Image Sensor

1/2.8" 2.4MP CMOS (0.9071 cm)

Minimum Illumination

0.01Lux/F1.6; 0Lux with white light on

Body Type

Dome

Max Aperture

F1.6

White Balance

Auto / Manual

Lens Type

Fixed-focal 3.6mm (2.8mm Optional)

Gain Control (AGC)

Auto / Manual

DORI Distance (2.8mm)

Detect: 38.6m, Observe: 15.4m, Recognize: 7.7m, Identify: 3.9m

DORI Distance (3.6mm)

Detect: 55.2m, Observe: 22.1m, Recognize: 11.0m, Identify: 5.5m

Angle of View (2.8mm)

Diagonal: 126.2°, Horizontal: 106°, Vertical: 56.5°

Angle of View (3.6mm)

Diagonal: 103.6°, Horizontal: 86.9°, Vertical: 46.3°

S/N Ratio

>65dB

Backlight Compensation

BLC / DWDR

Video Streaming

CVI/TVI/AHD/CVBS; up to 1080p @25/30fps

Privacy Mask

Off/On (8 rectangular areas)

Video Output

1 BNC port (CVI/TVI/AHD/CVBS selectable)

IR/White Light Range

20 meters with Smart Illumination

Operating Temperature

-40°C to +60°C; <95% RH (non-condensation)

Power Source

12V DC ±30%

Power Consumption

Max 3.0W (White Light on)

Weatherproof Rating

IP67

Dimensions

φ97.1 mm × 91.4 mm

Casing Material

Metal + Plastic (Core: Metal/Plastic, Cover: Plastic, Pedestal: Plastic)

Weight

0.21 kg
