Atpos at 2200D 2D Barcode QR Scanner Wired | USB Wired | Billing for Retail Stores, Warehouse | Plug and Play (2D+1D Wired)
【 High-quality scanning function】 Fast decoding and reading with high accuracy. Scans 2D QR + 1D Bar Codes

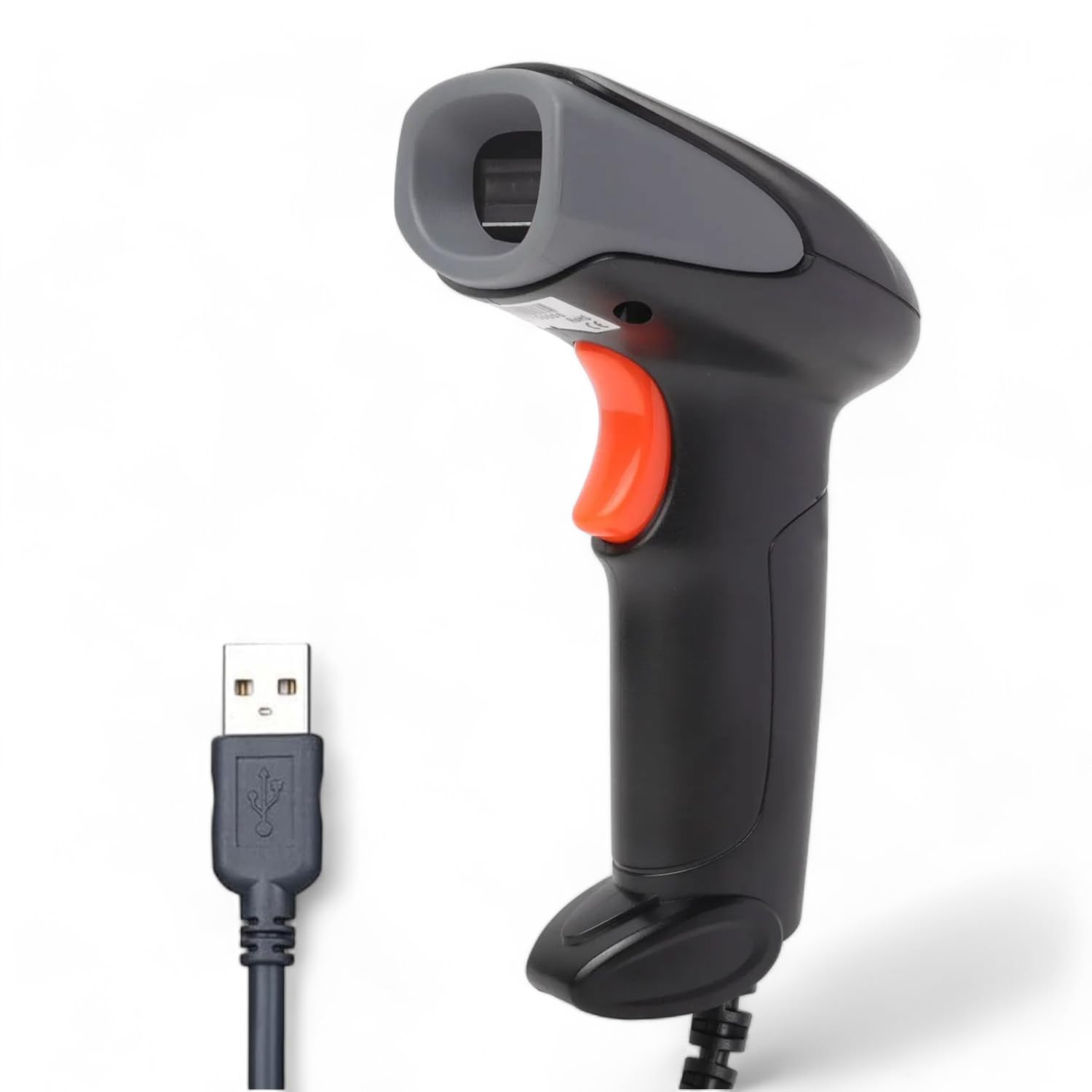

【Plug and Play – Simple to use】Ergonomic Design Handheld type Barcode Scanner with LED and buzzer indicators, 200 scans per second.
【Durable】 Shock Resistant: 1.5m drop on a concrete surface. Cable: 1.75M (5.5ft) straight cable.
【Widely used】Widely used in supermarkets, shopping malls, bookstores, convenience stores, retail stores, libraries, and pharmacies.
Key Features:
Simple Installation & Easy to Use: Ideal for various workplace environments, with a stylish design and unbeatable functionality.
Handheld & Versatile: Equipped with a USB port cable, LED and buzzer indicators for a seamless user experience.
Fast Scanning: 200 scans per second, ensuring quick and efficient barcode processing.
High Scanning Accuracy: Scans barcodes with 0.10 mm accuracy, even on hard-to-read codes.
Wide Compatibility: Supports 1D & 2D barcodes, including QR codes, UPC, EAN, PDF417, and more.
Scans from Screens & Incomplete Codes: Perfect for scanning screen codes, fuzzy, or incomplete barcodes.
Multi-Purpose Use: Ideal for use in businesses, shops, warehouses, libraries, and inventory management.
Specifications:
Parameter | Value |
|---|---|
Light Source | CMOS, wavelength 650-670nm |
Scanning Mode | Single line scan |
Scanning Speed | 200 scans per second |
Scanning Accuracy | 0.10 mm (PCS 0.9) |
Scanning Width | 30mm @ scanner window, 220mm @ 200mm |
Scanning Depth of Field | 0-250 mm (PCS 90%) |
Scanning Angles | Inclination: 55°, Elevation: 65° |
Decoding Ability | 1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 93, QR Code, DataMatrix, PDF417, Micro PDF417, and more |
Interface | USB Printer Interface |
Error Rate | 1/5,000,000 |
Prompt | Buzzer indicator |
Scanning Mode | Manual normally on |
Dimensions | 165mm x 67mm x 97mm |
Weight | 200g |
Material | ABS + PC |
Cable Length | 1.7 meters |
Voltage | 5V |
Working Current | 400mA |
Static Current | 36mA |
Laser Safety | Complies with national secondary laser safety standards |
Electromagnetic Compatibility | CE & FCC DOC compliance |
Operating Temperature | 0°C – 45°C |
Storage Temperature | -20°C to 60°C |
Humidity | 5%-95% (without condensation) |
Environmental Brightness | Max. 5,000 Lux |
Drop Resistance | Can withstand drops up to 1.5 meters |
General
- Types Of ScannersBarcode Scanners
- Scanner Parameter2D + 1D
- InterfaceUSB
