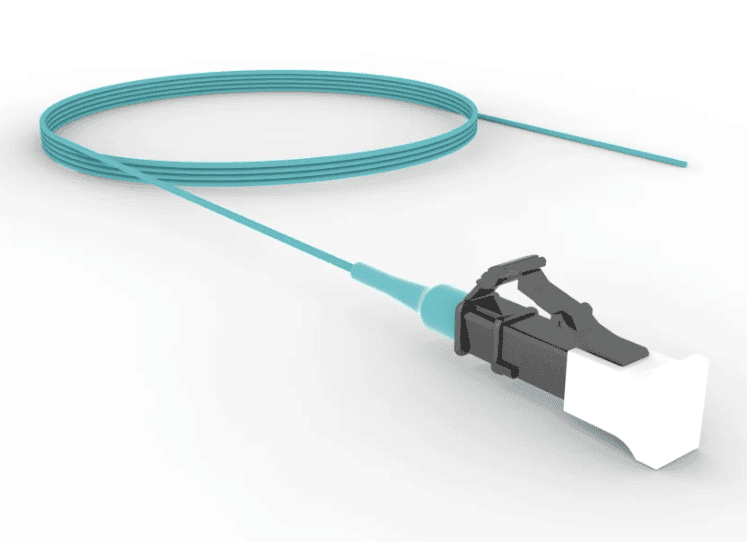

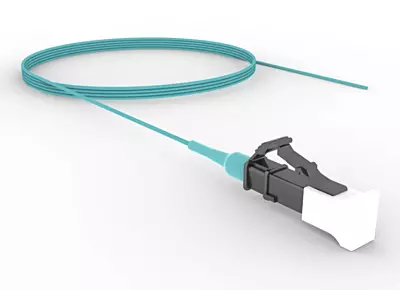

CommScope LC Type MM Pigtails 5 MTR (FBXLCUC11-MXF005)
Type: LC Type MM Pigtails for multimode fiber optic applications.
Fiber Type: Supports multimode (MM) fiber, optimized for high-speed, short-distance data transmission.
Length: 5 meters for flexible connectivity in network setups.
Application: Perfect for use in fiber optic patch panels and networking installations where high-speed, short-range multimode fiber connections are needed.
Feature | Description |
|---|---|
Product Name | CommScope LC Type MM Pigtails 5 MTR (FBXLCUC11-MXF005) |
Model Number | FBXLCUC11-MXF005 |
Type | LC Type Multi-Mode (MM) Pigtails |
Fiber Type | Multi-Mode (MM) |
Connector Type | LC (Lucent Connector) for fiber optic connections |
Pigtail Length | 5 meters (5M) |
Number of Pigtails | 12 (Standard pack typically includes 12 individual pigtails) |
Cable Type | Multi-mode fiber (MM) |
Mode Type | OM3/OM4 (depending on the variant) |
Fiber Count | 12 fibers (usually in a single assembly) |
Connector Color | Typically blue for LC connectors, consistent with standard Multi-mode fiber |
Fiber Diameter | 50/125 µm (standard for OM3/OM4 fibers) |
Connector Material | Typically made of plastic (PVC or LSZH), providing durability and strain relief |
Applications | Suitable for high-speed networking, data centers, telecom rooms, and enterprise fiber installations |
Compatibility | Compatible with standard LC-type fiber optic connectors and Multi-mode fiber networks |
Connector Standard | LC Standard for fiber optic connections |
Pigtail Quality | High-quality fiber and connectors for reliable, low-loss connections |
Cable Jacket | PVC or LSZH (Low Smoke Zero Halogen) material, depending on variant |
Connector Loss | Low insertion loss and high return loss, optimized for high-speed data transmission |
Max Fiber Diameter | Typically supports fiber cables with a diameter up to 3.0mm |
Environmental Ratings | UL, RoHS compliant |
Operating Temperature | -20°C to 70°C (standard operating temperature range for most pigtails) |
Durability | Designed to withstand up to 500 cycles of insertion/extraction with minimal performance degradation |
Storage Temperature | -40°C to 85°C |
Fiber Optic Standards | Compliant with industry standards for Multi-mode fiber (OM3, OM4) and low insertion loss performance |
Termination Style | Factory-terminated with LC connectors for quick installation |
Pigtail Cable Type | Typically a round cable (3.0mm to 5.0mm diameter) |
Connector Performance | Provides stable and reliable connections for high-density applications |
Warranty | Manufacturer's warranty (typically 1 year or more, depending on supplier) |
