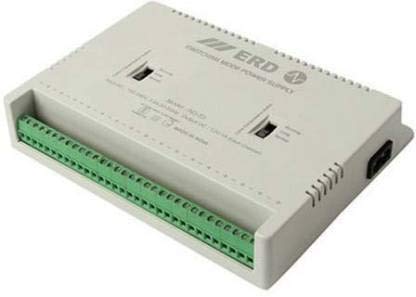

ERD CCTV 16 Channel Power Supply (AD-33)

Rs.1,170.00 Rs.2,300.00

Feature

Description

Channel Support

Powers up to 16 CCTV cameras simultaneously

Power Output

Stable 12V DC with overload and short-circuit protection

Build Quality

Durable metal enclosure with ventilation for safe operation

Safety & Maintenance

Individual fuses for each channel ensure safer and easier maintenance

Choose Quantity
+ Add to Cart
Product Details
Specifications

Category

Details

Product Name

ERD AD-33 16 Channel CCTV Power Supply

Applications

- 16 Channel Security Camera Power Supply
- Power LED Monitor for each channel
- Individual Camera Drive

Features

- BIS Approved
- SMPS Switcher IC Design
- Stabilized Output, Low Interference
- Surge, Over Temp, Current, Voltage & Load Protection
- High Efficiency, Low Power Consumption
- Resettable Fuse on each output
- Voltage Boosting via Cable Compensation Switches
- Short Circuit Auto Restart
- Low Ripple Voltage (<5%)
- ABS Cabinet in Grey
- Compact, Lightweight & Shock Proof
- Wall Mountable / Desktop Type

Specifications

- Input Voltage: 150V to 285V AC, 50/60Hz
- Output Voltage: 12V โ€“ 1A (Max) per channel

Warranty

6 Months warranty
(Only for manufacturing defects. No coverage for physical damage, scratches, or water/liquid damage.)

General
  • Wattage
    1200 Watt
  • Compatible Devices
    Camera
