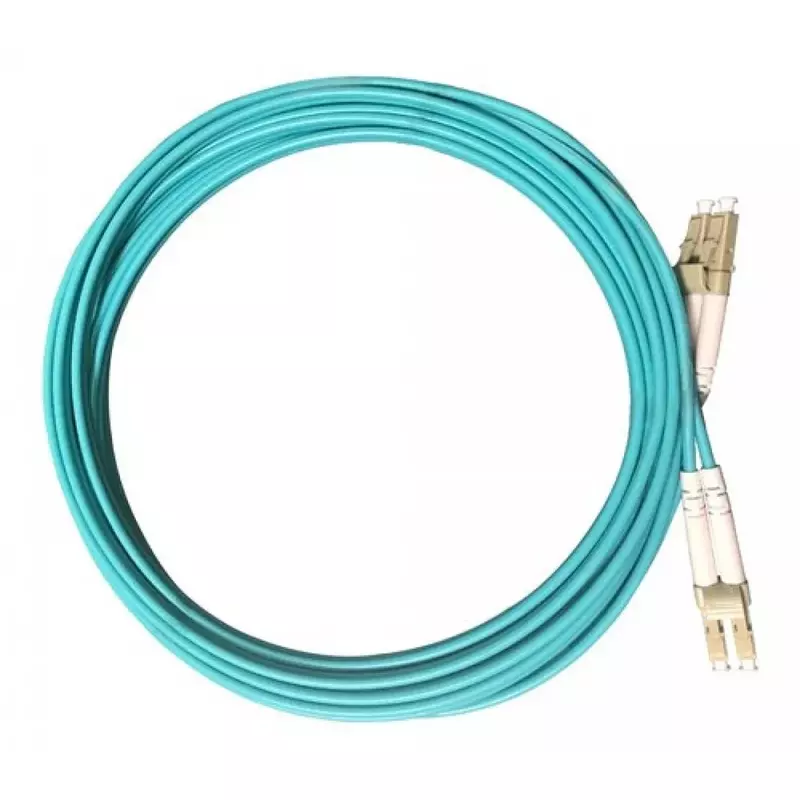

D-Link LC LC Duplex, OM3 Patch Cord 10 Mtr (NCB-FM51D-LCLC-10)
LC to LC Duplex: Connects two LC fiber optic ports with a duplex configuration for bidirectional data transmission
OM3 Multimode: High-performance OM3 fiber for faster speeds and higher bandwidth over longer distances
10 Meter Length: Provides flexibility in network setups, ideal for medium-range fiber connections
Durable & Reliable: Designed for stable and long-lasting performance in fiber optic networks
Feature | Description |
|---|---|
Model | D-Link NCB-FM51D-LCLC-10 |
Type | LC LC Duplex Patch Cord |
Fiber Type | OM3 Multi-Mode Fiber |
Cable Length | 10 meters |
Connector Type | LC to LC Duplex Fiber Optic Connectors |
Fiber Mode | OM3 – Optimized for high-speed data transmission over short to medium distances |
Core Diameter | 50/125 µm (microns) |
Wavelength | 850nm |
Operating Bandwidth | Supports high-speed network applications with bandwidth of 2000 MHz·km at 850 nm |
Transmission Distance (at 10Gbps) | Up to 300 meters |
Jacket Material | LSZH (Low Smoke Zero Halogen) material for improved safety, reducing smoke and toxic fumes in case of fire |
Connector Material | High-Quality Ceramic Ferrules for low insertion loss and reliable connection |
Applications | - Ideal for data centers, telecommunications, and high-speed networks - Suitable for connecting switches, routers, and servers in fiber optic networks |
Weight | 0.35 kg (0.77 lbs) |
Dimensions (H x W x D) | - Typically 3.0mm outer diameter cable |
Color | Typically Aqua color to indicate OM3 multi-mode fiber |
Durability | - High durability for long-term use in industrial environments - Resistant to mechanical stress and bending |
Insertion Loss | Low insertion loss for better signal quality and network efficiency |
Flexibility | Designed for flexible deployment in tight spaces, with excellent bend radius |
Compliance | - RoHS Compliant - CE Certified |
Connector Polarity | Straight-through (LC to LC) for easy connection |
Warranty | 1-Year Limited Warranty |
Additional Features | - Designed for high-speed data transmission in 10 Gigabit Ethernet (10GbE) networks - High-performance OM3 fiber for short to medium-range data center connections |
