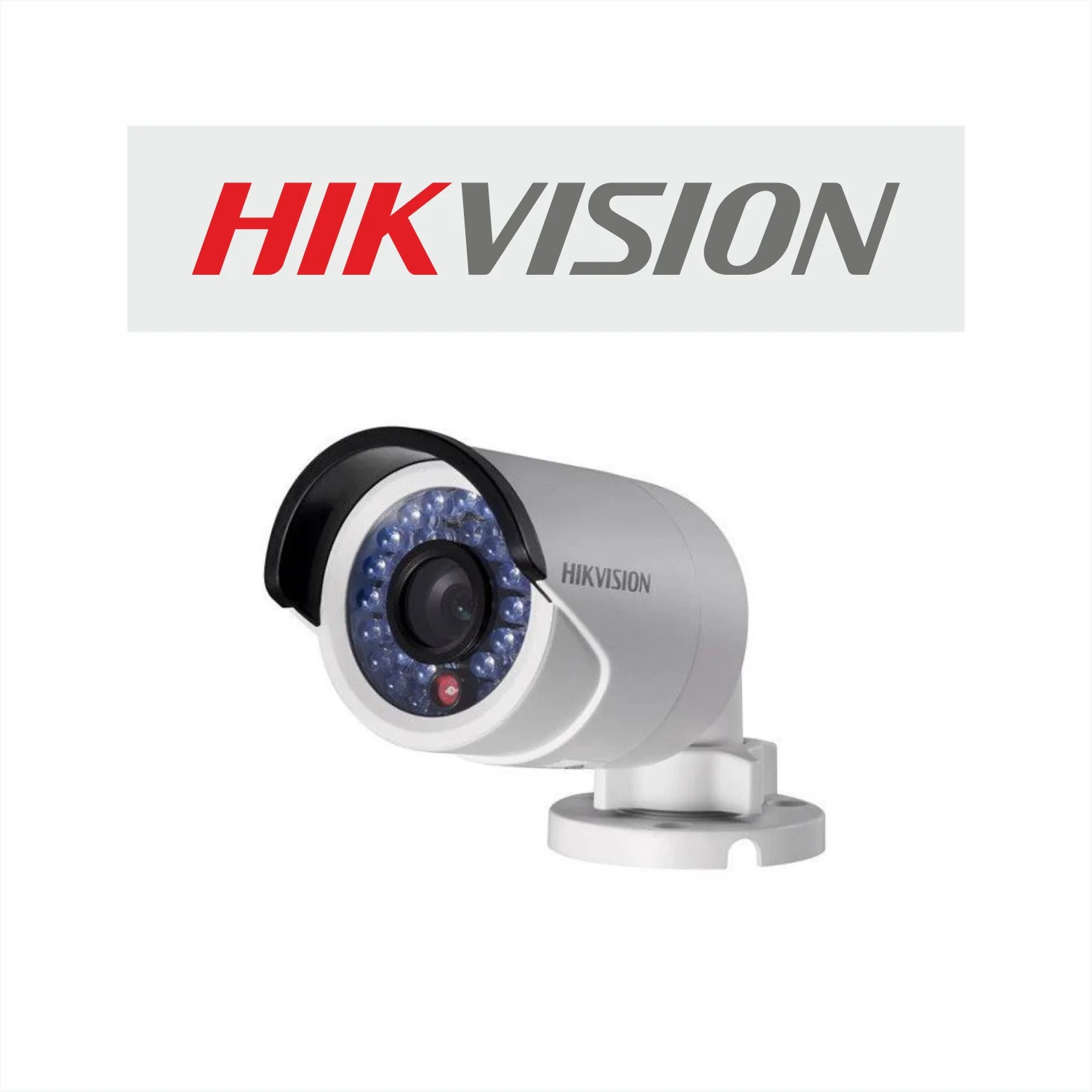

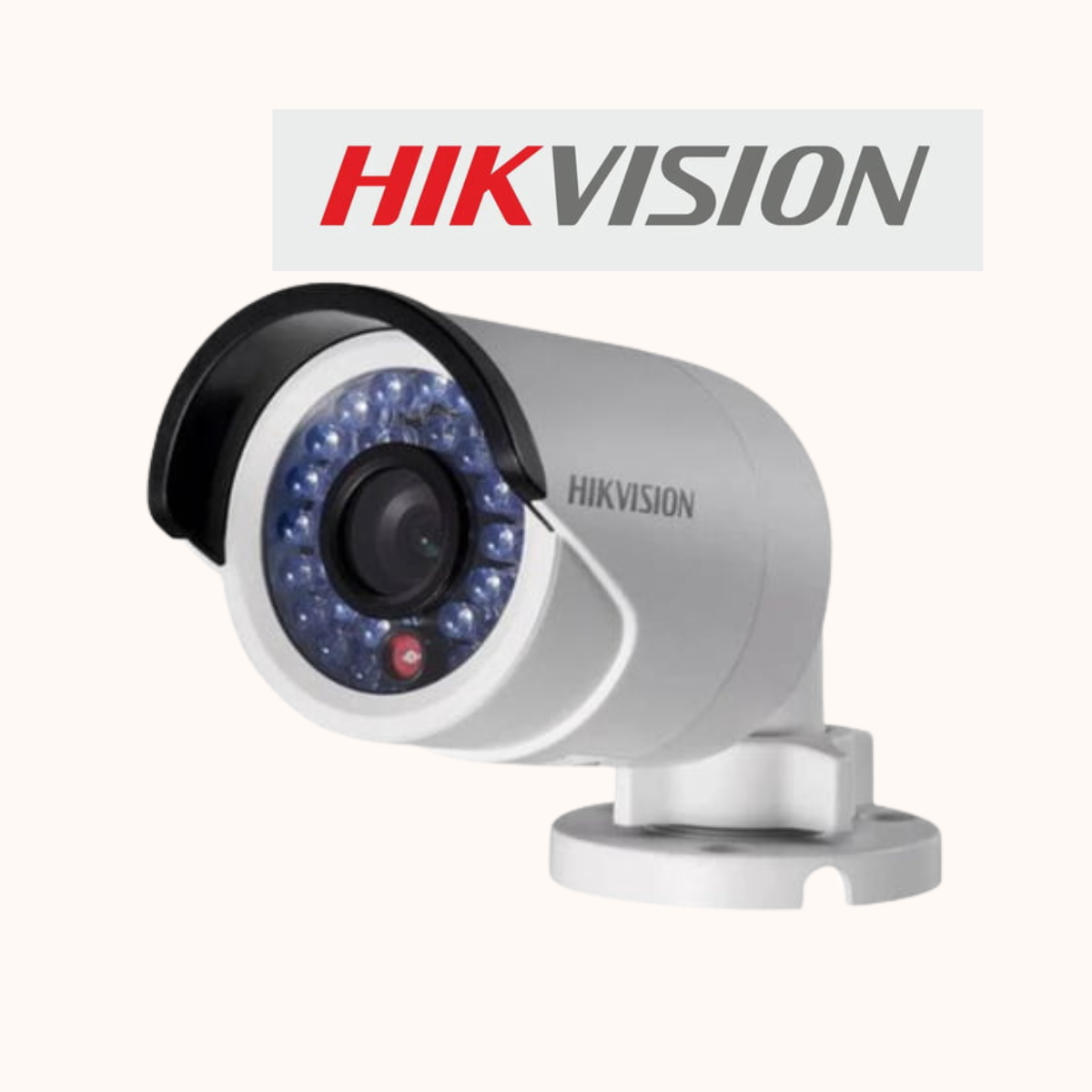

HIKVISION 1MP Bullet ECO Camera DS-2CE- 1AC0T-IRP
Feature | Specification |
|---|---|
Camera Type | Bullet Camera |
Image Sensor | 1.0 Megapixel high-performance CMOS |
Resolution | 720P (HD), 1296(H) × 732(V) Effective Pixels |
Video Output | Analog HD Output |
IR Distance | Up to 20 meters |
Illumination | 0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Signal System | PAL/NTSC |
Day/Night Mode | True Day/Night |
Image Enhancements | DNR (Digital Noise Reduction), Smart IR |
Weatherproof Rating | IP66 |
LEDs | 12 LEDs |
Cable | 2 wire cable |
Compatibility | Works with Hikvision HGHI, HQHI, and ECO series Turbo HD DVRs only |
Online Viewing | Supported |
Warranty | 2 Years Seller Warranty (Excludes physical damage & burning) |
Installation | Not included |
Category | Specification |
|---|---|
Image Sensor | 1 MP CMOS image sensor |
Signal System | PAL/NTSC |
Effective Pixels | 1296(H) x 732(V) |
Min. Illumination | 0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time | 1/25 (1/30)s to 1/50,000s |
Lens Options | 2.8 mm, 3.6 mm, 6 mm |
Field of View | 70.9° (3.6 mm), 92° (2.8 mm) |
Lens Mount | M12 |
Day & Night | ICR (Infrared Cutfilter Removal) |
Angle Adjustment | Pan: 0°–360°, Tilt: 0°–180°, Rotation: 0°–360° |
Synchronization | Internal synchronization |
Video Frame Rate | 720p @ 25fps / 30fps |
HD Video Output | 1 analog HD output |
S/N Ratio | >62dB |
General Specifications | Details |
|---|---|
Operating Conditions | -40°C to 60°C (-40°F to 140°F), Humidity ≤ 90% (non-condensing) |
Power Supply | 12 V DC ±15% |
Power Consumption | Max. 4 W |
Protection Level | IP66 (Weatherproof) |
IR Range | Up to 20 meters |
Dimensions | 70 mm × 154.5 mm (2.76" × 6.08") |
Weight | 300 g (0.66 lb.) |
General
- TypesAnalog
- Placement SupportedIndoor/Outdoor
- Megapixel (Approx.)1 MP
- Mounting TypeCeiling/Wall
- Connectivity TechnologyWireless
- Video Motion DetectionYes
- Wi-FiYes
- Power Over EthernetNo
- Ethernet LANNo
