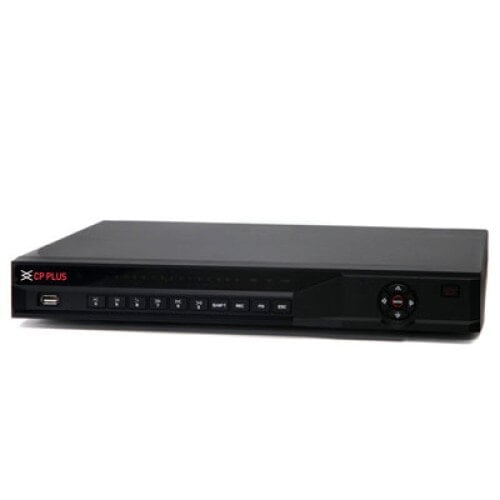

CP Plus 16 Ch. 4K NVR Network Video Recorder (CP-UNR-4K4162-V3 16)
16 Channels: Supports up to 16 IP cameras for comprehensive surveillance coverage
4K Resolution: Records video in 4K resolution for high-definition clarity and detailed footage
Advanced Compression: Utilizes H.265 video compression for efficient storage and bandwidth usage
Network-Enabled: Can be remotely accessed and managed over a network for easy monitoring and playback
Feature | Description |
---|---|
Model | CP Plus CP-UNR-4K4162-V3 16 |
Type | 16 Channel 4K NVR (Network Video Recorder) |
Video Input | 16 Channels of IP Camera Input |
Video Resolution | Supports 4K (Ultra HD) video resolution for crystal clear image quality |
Recording Resolution | Up to 8 MP per channel |
Compression Format | Supports H.265, H.264 video compression for efficient storage and bandwidth management |
Storage | - Supports 16TB total storage (using 2x 8TB HDD) |
Hard Disk Drive (HDD) | Supports 2 x 3.5โ SATA HDDs |
Audio Input | 2 x Audio Input Channels |
Audio Output | 1 x Audio Output Channel |
Playback Resolution | 4K Video Playback |
Network Interface | 1 x RJ45 Gigabit Ethernet Port for network connectivity |
POE Support | Supports Power over Ethernet (PoE) for easy camera setup and eliminating the need for additional power sources |
Video Output | HDMI and VGA video output for connecting to external monitors or displays |
Max. Bitrate | 256 Mbps |
Recording Modes | - Continuous Recording - Motion Detection Recording - Schedule Recording |
Remote Access | Remote Monitoring via PC, Mac, and Mobile App (iOS & Android) for live viewing and playback |
PTZ Control | Supports PTZ (Pan-Tilt-Zoom) Control for compatible cameras |
On-Screen Display (OSD) | Supports OSD for displaying camera information, time, and other details on the screen |
Backup Methods | Supports USB Backup, Network Backup, and Cloud Backup for data security and redundancy |
Security Features | - User Authentication with different permission levels - IP Filtering for network security - Password Protection |
Dual Stream | Supports Dual Stream (Main and Sub Stream) for efficient video streaming and remote monitoring |
Motion Detection | Advanced Motion Detection for automatic recording and event-triggered actions |
Alarm I/O | Supports Alarm In/Out for connecting external alarms or sensors |
Operating Temperature | 0ยฐC to 50ยฐC |
Power Supply | DC 12V / 3A |
Dimensions (H x W x D) | 44 x 315 x 245 mm |
Weight | 2.3 kg |
Warranty | 2-Year Limited Warranty |
Applications | - Surveillance Systems - Security Monitoring for businesses, offices, and homes - Retail, Warehouse, and Industrial Surveillance |
