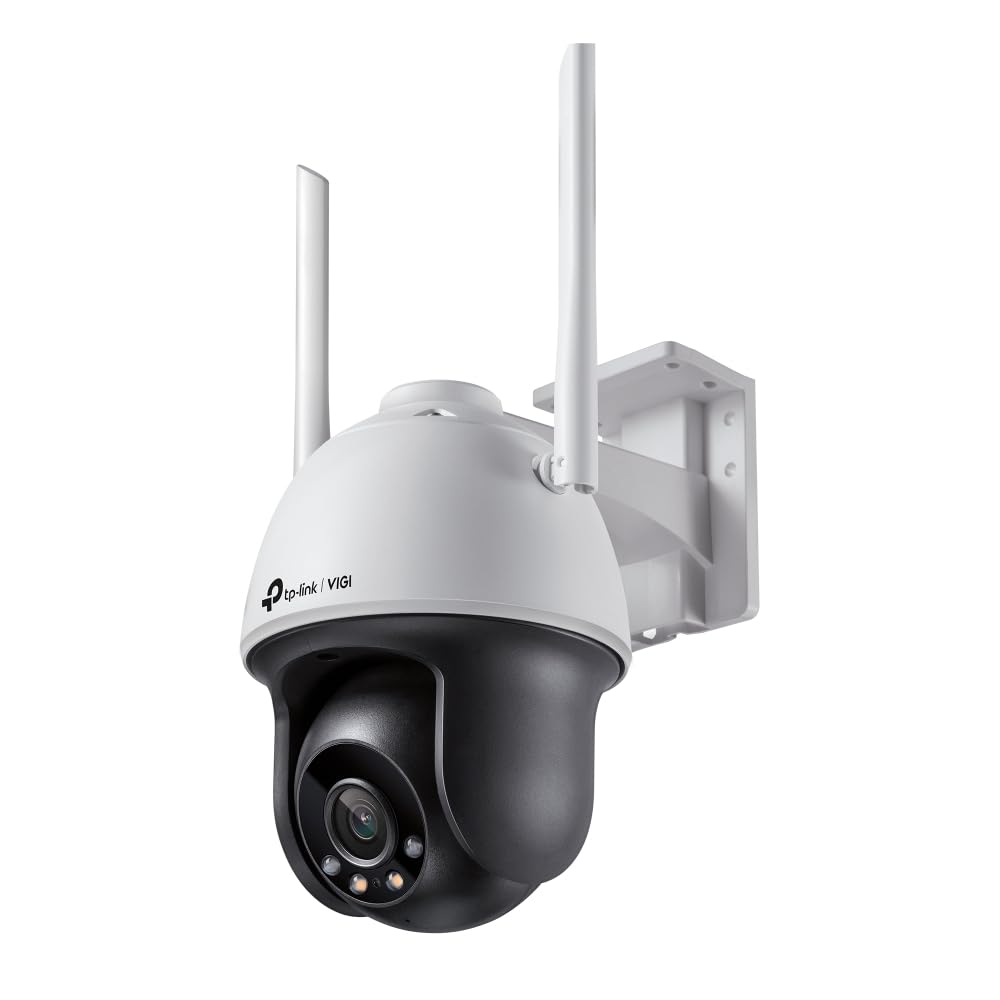

TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera-C540-W

Camera

Image Sensor

1/3” Progressive Scan CMOS

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Minimum Illumination

0.005 Lux; 0 Lux with IR/White Light

Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

Lens

Type

Fixed Focal Lens

Focal Length

4 mm

Aperture

F1.6

FOV (4 mm)

Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Lens Mount

M12

DORI Distance (4 mm)

Detect: 80 m (262 ft), Observe: 33 m (109 ft), Recognize: 16 m (52 ft), Identify: 8 m (26 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 350°, Tilt: 0° to 120°

Pan Speed

Configurable from 8° to 44°/s, Preset Speed: 44°/s

Tilt Speed

Configurable from 8° to 44°/s, Preset Speed: 44°/s

Manual Control Speed

Configurable from 8° to 35°/s

Presets

300

Patrol Scan

8 patrols, up to 8 presets for each patrol

Power-off Memory

Yes; Auto restore to previous PT and lens status after power failure

Park Action

Yes; Preset; Patrol Scan

3D Positioning

Yes

Illuminator

IR LED

Quantity: 2, Range: 30m, Wavelength: 850nm

White LED

Quantity: 2, Range: 30m

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off

Video

Max Resolution

2560 X 1440

Main Stream Resolution

2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Stream Resolution

640x480, 352x288, 320x240

Frame Rate (Main)

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Frame Rate (Sub)

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Bit Rate Control

CBR, VBR

Video Compression

Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264

H.264 Type

High Profile

H.265 Type

Main Profile

Video Bit Rate (Main)

256 Kbps to 4 Mbps

Video Bit Rate (Sub)

64 Kbps to 512 Kbps


Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Rotation (90°/270°)

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range (WDR)

DWDR

SNR

≥ 52 dB

Privacy Mask

Up to 4 Masks

Region of Interest (ROI)

1 Region

Audio

Audio Communication

Two-Way Audio

Audio Input

Yes

Audio Output

Yes

Audio Compression

Yes

Audio Sampling Rate

8KHz

Environment Noise Filtering

Yes

Audio Bit Rate

64 Kbps(G.711 alaw)

Network

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP

ONVIF

Yes

API

Open Network Video Interface (Profile S)

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Client

VIGI App, VIGI Security Manager, Web UI

Cloud

Yes

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Wireless

Standards and Protocols

IEEE 802.11b/g/n

WiFi Channels

UN: 1-13, US: 1-11

Frequency

2.4 GHz

Wireless Transmit Power

High

Wireless Security

WPA/WPA2-PSK

Wireless Mode

AP, AP Client
