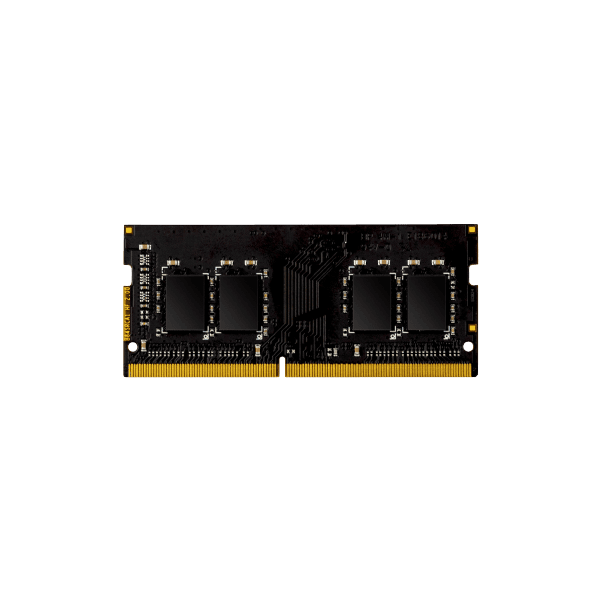

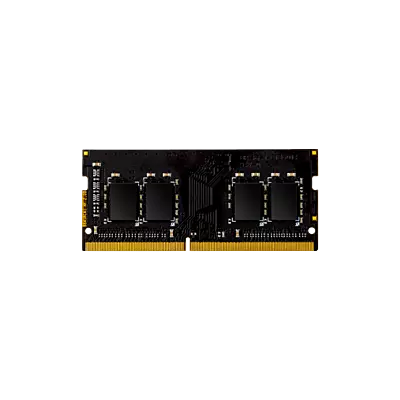

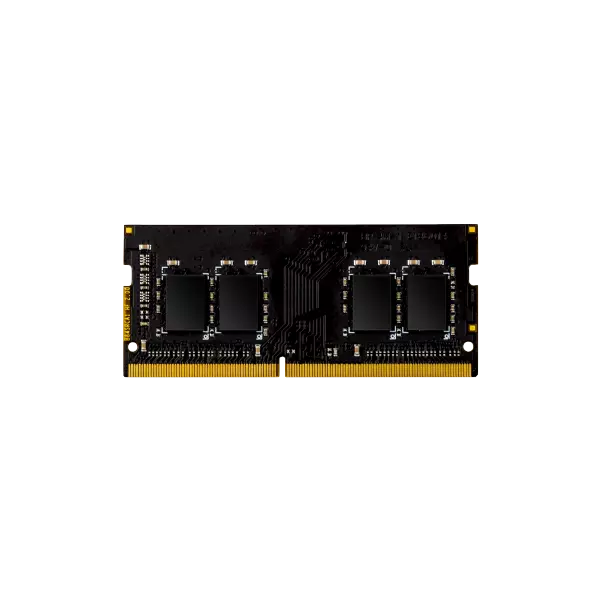

AGI 8 GB, DDR4 SODIMM 3200MHz, SD138
Feature | Description |
---|---|
Speed | High speed up to 3200MHz |
Standard Compliance | Meets JEDEC standards |
Chip Quality | Carefully selected high-quality chips from original manufacturers |
Power Efficiency | Saves 20% power compared to DDR3 |
PCB Quality | High-quality PCB for improved signal transfer and system stability |
Specification | Details |
---|---|
Capacity Options | 4GB / 8GB / 16GB / 32GB |
Module Type | 260-pin SODIMM |
Power Supply | VDD and VDDQ = 1.2V ยฑ 0.06V |
DRAM Activation Power (VPP) | 2.5V (Min: 2.375V, Max: 2.75V) |
DRAM VCC | DDR4 Standard 1.2V |
Dimensions (L x W x H) | 69.6 x 30 x 1.20 mm |
Weight | 8g |
Warranty | Lifetime |
General
- Form FactorSODIMM
Features
- Capacity8GB
- DDR TypeDDR4
- Speed3200MHz
