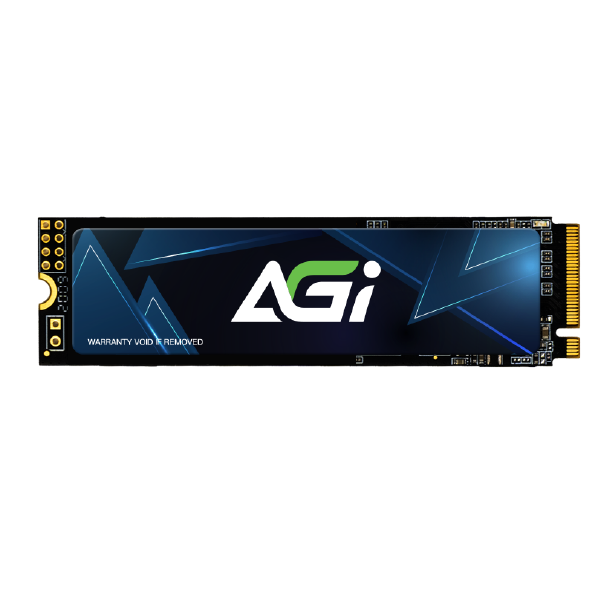

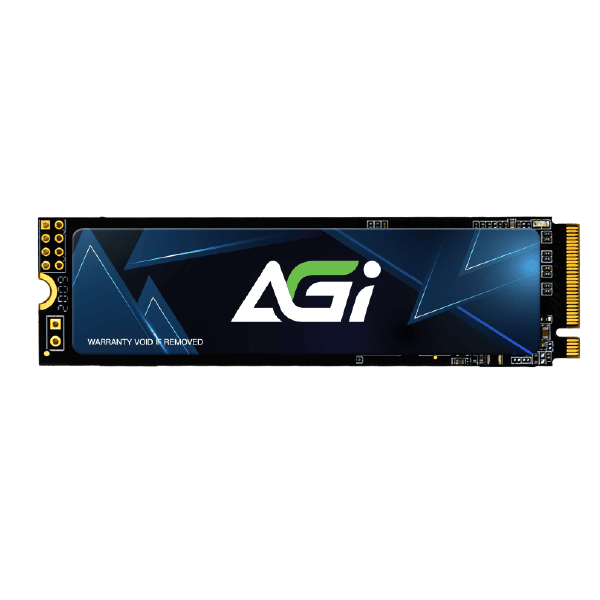

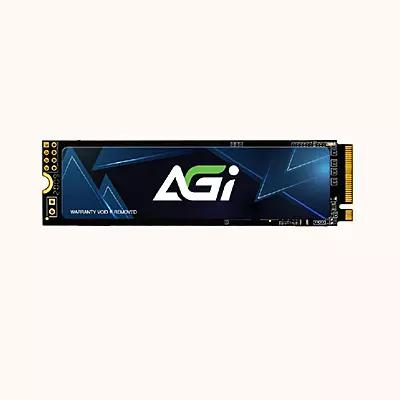

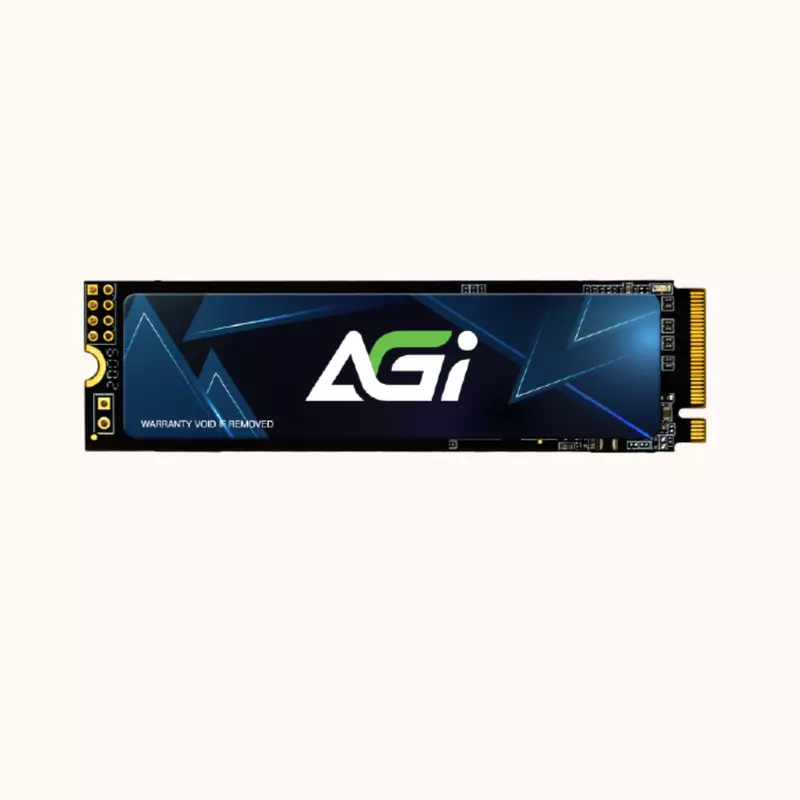

AGI M.2 PCIe Gen4 SSD, 3 Year Warranty-2 TB, AI808

Capacity

1TB / 2TB

NAND Flash

3D NAND

Interface

PCIe Gen 4 x 4

Form Factor

M.2 2280

Dimensions (L x W x H)

80 x 22 x 5.4 mm (with heat sink)
80 x 22 x 2.1 mm (without heat sink)

Weight

7.5g ± 0.2g
1TB: 11.2g (w/ heat sink) / 5.2g (w/o heat sink)
2TB: 11.2g (w/ heat sink) / 5.2g (w/o heat sink)

MTBF

1,600,000 hours

Operating Voltage

3.3V ± 5%

Humidity

5% to ~98% RH (Non-condensing)

Operating Temperature

0°C to 70°C

Storage Temperature

-40°C to 85°C

Operating Vibration

15G (7 to 2000Hz)

Shock Resistance

1500G / 0.5ms

Certifications

CE, FCC, BSMI, RoHS
