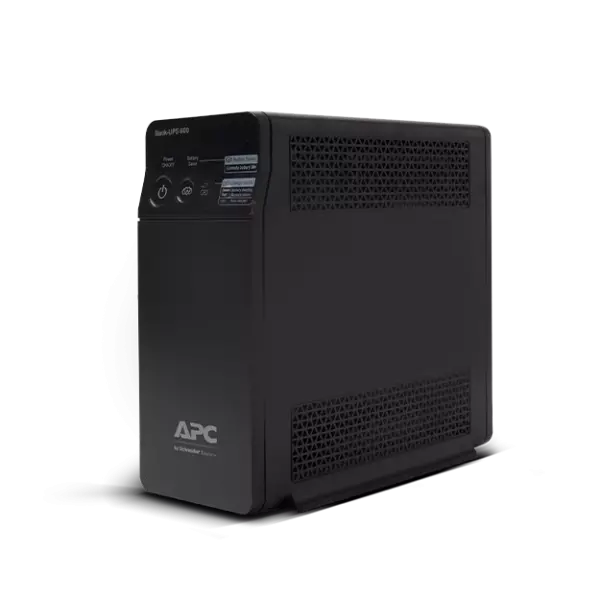

APC BACK-UPS 600VA, 230V
Category | Feature | Description |
|---|
Power Management | Audible Alarms | Alerts for power and UPS status changes |
Automatic Self-Test | Early detection of battery issues |
AVR (Automatic Voltage Regulation) | Stabilizes voltage fluctuations |
Battery Saver | Extends battery life by preventing unnecessary discharges |
Boost AVR | Corrects low voltage without using battery power |
Cold-Start Capable | Provides battery power during outages |
Fast Battery Charging | Reduces recharge time and protects battery health |
Generator Compatibility | Allows recharging while on generator power |
Indicators & Alerts | Battery Charging Indicator | Displays battery charge status |
LED Indicators | Shows power and battery conditions |
LED Status Display | Visual indicators for quick status checks |
Safety & Protection | Safety-Agency Approved | Tested and certified for safe operation |
Battery & Surge Protected Outlets | Protects hardware from outages and surges |
Surge-Only Outlets | Shields non-critical devices from power spikes |
Battery & Availability | Intelligent Battery Management | Enhances battery performance and lifespan |
Battery Failure Notification | Warns about potential battery issues |
Feature Category | Feature | Details |
|---|
Output | Output Power Capacity | 360 Watts / 600 VA |
Max Configurable Power (Watts) | 360 Watts / 600 VA |
Nominal Output Voltage | 230V |
Output Frequency (Sync to Mains) | 47 - 63 Hz |
Topology | Line Interactive |
Waveform Type | Stepped Approximation to a Sinewave |
Input | Nominal Input Voltage | 230V |
Input Frequency | 47 - 63 Hz |
Input Connections | India 3-pin 6A |
Cord Length | 1.22 meters |
Input Voltage Range for Main Operations | 145 - 290V |
Number of Power Cords | 1 |
Batteries & Runtime | Battery Type | Maintenance-free Sealed Lead-Acid Battery (Leakproof) |
Typical Recharge Time | 6 hours |
Communications & Management | Control Panel | LED Status Display with Online, On Battery, Replace Battery, and Building Wiring Fault Indicators |
Audible Alarm | Alarm when on Battery, Distinctive Low Battery Alarm, Overload Continuous Tone Alarm |
Surge Protection & Filtering | Surge Energy Rating | 255 Joules |
Physical Dimensions | Maximum Height | 21.8 cm |
Maximum Width | 10.7 cm |
Maximum Depth | 23.7 cm |
Net Weight | 4.7 kg |
Shipping Weight | 5.2 kg |
Shipping Height | 29.5 cm |
Shipping Width | 16.5 cm |
Shipping Depth | 31.0 cm |
Environmental | Operating Temperature | 0 - 40 °C |
Operating Relative Humidity | 0 - 95% |
Operating Elevation | 0 - 3000 meters |
Storage Temperature | -15 - 45 °C |
Storage Relative Humidity | 0 - 95% |
Storage Elevation | 0 - 15000 meters |
Conformance | Approvals | BIS Approved |
Warranty | Warranty | 2 Years |
