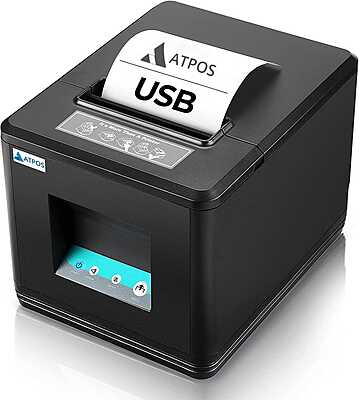

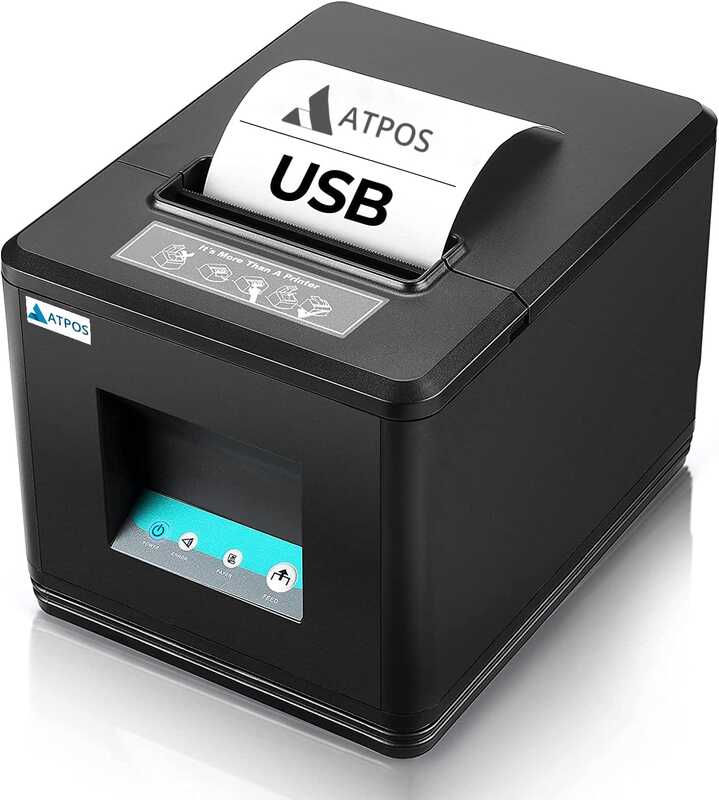

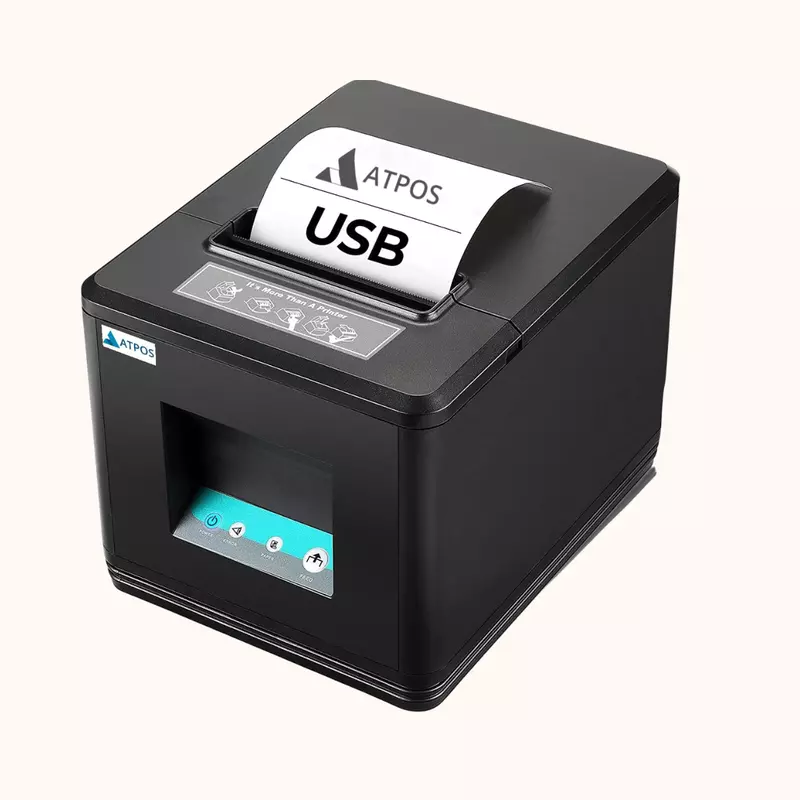

Atpos AT-301 80mm (3 Inch) Thermal Receipt Printer | USB/Bluetooth Interface
Direct Thermal Printing uses thermal paper instead of ink
80mm thermal printer with Auto-cutter function
Interface Options: Only USB / Bluetooth + USB
With high efficiency and clear printing, print speed can reach to 200- 260mm/s.
Up to 100 Km Head Life, Support Window software based on ESC/POS command.
Specification
Product name | Atpos AT-301 Printer |
Printing method | Direct thermal printing |
Effective printing width | 72mm |
Resolution | 203dpi |
Printing speed | 200mm/s (USB) & 260mm/s (BT+USB) |
Printing density | 576 dots/line |
Character set | Chinese โ GB18030 English, Japanese, Korea etc. custom (contact us for the latest information) |
Paper width | 79.5ยฑ0.5mm |
Paper roll diameter | ฮฆ83mm |
Paper loading | Easy paper loading |
Code type | 1D โ UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/ CODE128 2D โ QR code |
Auto cutter | 1.5million cuts |
Interface | USB, USB+RS232, USB+Lan, USB+BT, USB+WIFI |
Emulation | ESC/POS |
Driver | Win XP/Vista/Win7/Win8/Win10/Win 2000/Win CE/OPOS/JPOS |
Power supply | Input โ AC 100V-240V/60HZ Output โ DC 24V/2.5A |
Cash drawer control | Yes |
General
- InterfaceUSB
Print Details
- Printing MethodDirect Thermal
- Resolution203 DPI
- Printing SpeedMax 220mm/s
- CutterAuto
