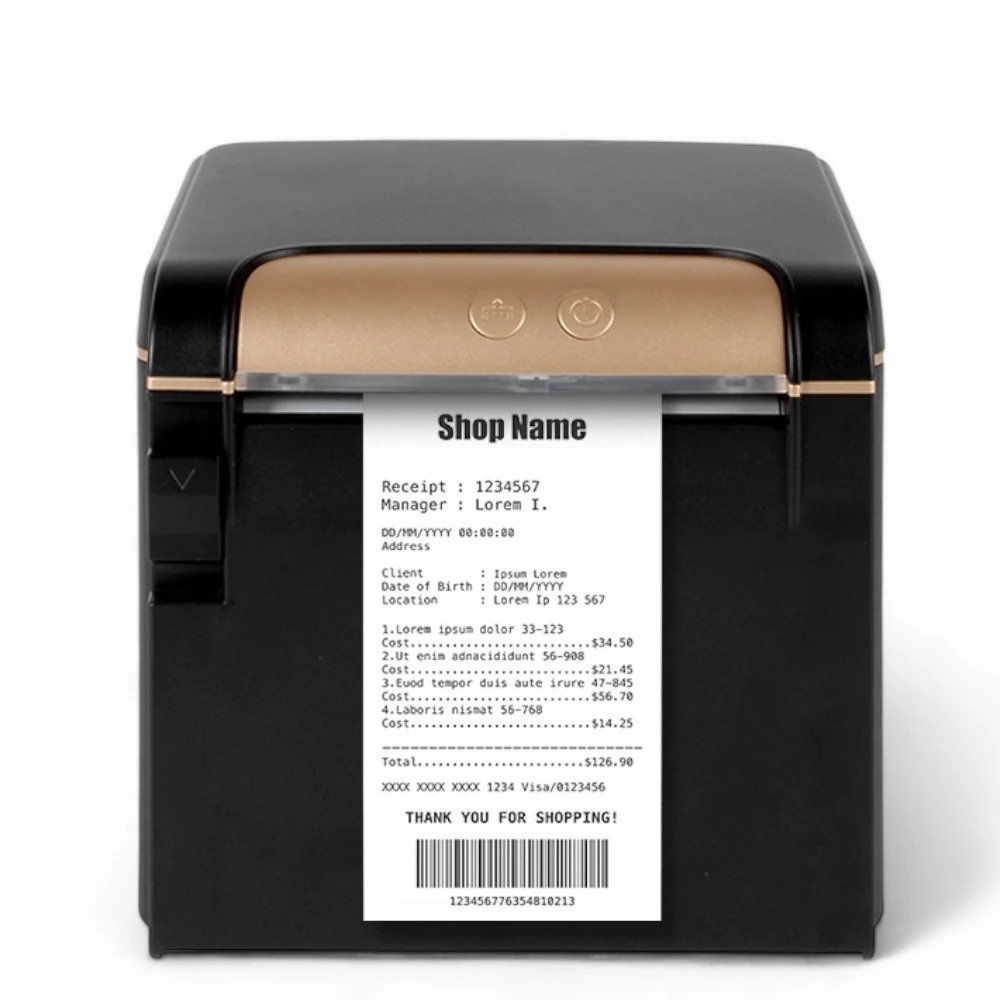

Atpos AT-506 80mm 3 Inch Bluetooth Thermal Receipt Printer (BT+USB+LAN+RS232) | 2 Year Warranty
Features: Bluetooth 4.0, Japanese TPH Head, and a heavy-duty platinum-plated auto cutter blade with a lifespan of 2 million cuts.
Performance: 80mm thermal printer with interfaces for Bluetooth, USB, LAN, and Serial, delivering high-efficiency, clear printing at speeds up to 300mm/s.
Durability & Precision: 150 km head life, 203dpi resolution, and a 4M byte input buffer for smooth and uninterrupted printing.
Adjustable Discharge: Option to adjust paper discharge direction between โtop paperโ and โfront paperโ based on user needs.
Warranty & Reliability: Comes with a 2-year warranty, ensuring long-term reliability and robust performance.
Product Specifications
Feature | Details |
---|---|
Model | AT506 |
Print Method | Direct Thermal |
Resolution | 203 DPI (8 dots/mm) |
Printing Width | 72mm (default), 80mm (max) |
Print Speed | (Max. 300mm/s) |
Printing Head Life | 150 km |
Cutter Lifespan | 2 million cuts |
Paper Cut | Auto-Cutter |
Supported Paper Widths | 48mm / 52mm / 56mm / 64mm / 68mm / 76mm / 80mm |
Interfaces | Bluetooth, LAN, RS232, USB 2.0 |
Input Buffer | 4M bytes |
Emulation | ESC/POS |
SDK | Android/iOS |
Maximum Paper Roll | ร82mm |
Dimensions | 137(D) x 137(W) x 130(H)mm |
Net Weight | 1.0kg |
General
- InterfaceUSB + LAN + Bluetooth
Print Details
- Printing MethodDirect Thermal
- Resolution203 DPI
- Printing SpeedMax 300mm/s
- CutterAuto
