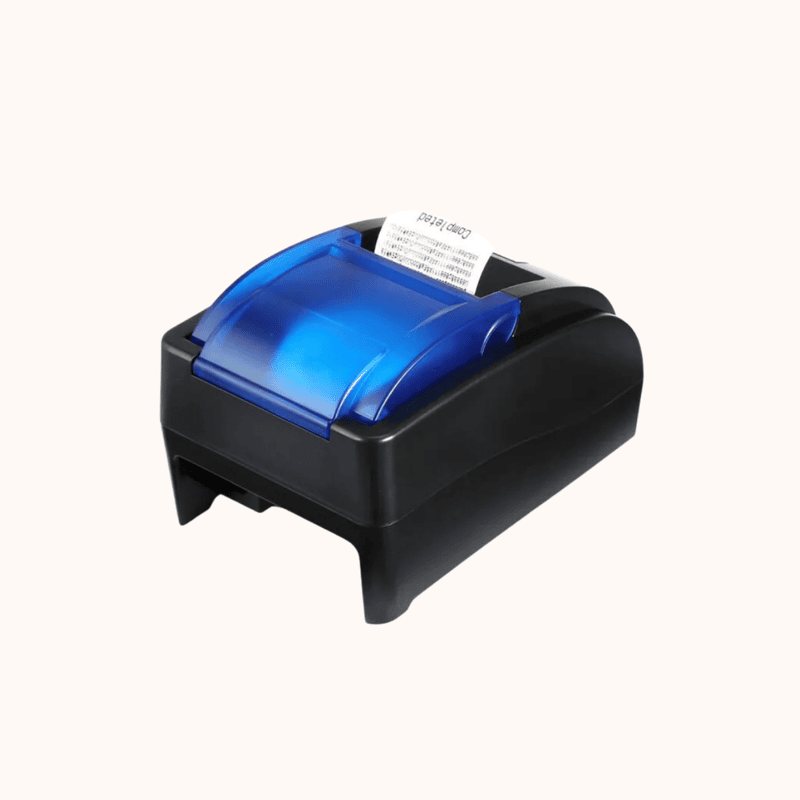

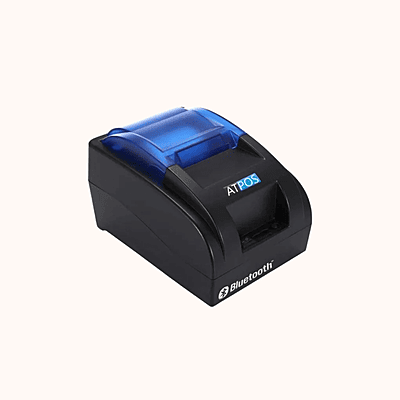

Atpos H58BT 58mm Bluetooth Thermal Receipt Printer | 2 Inch

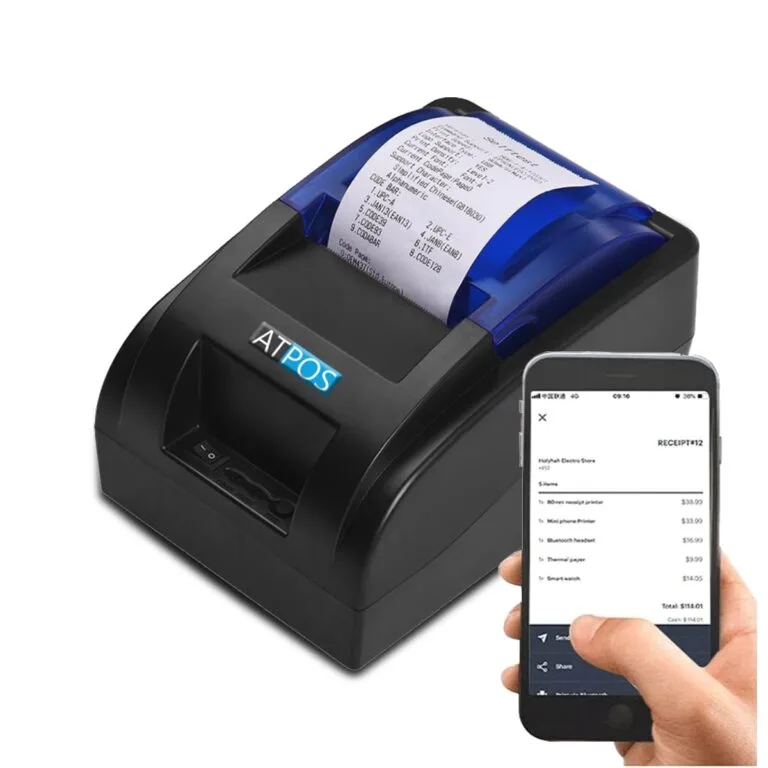

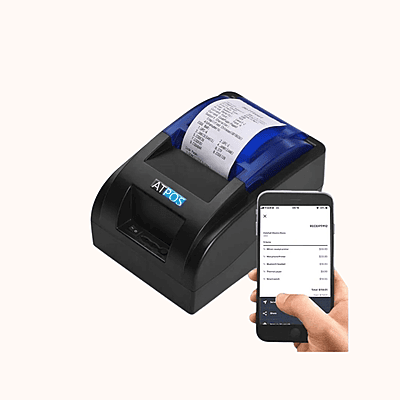

BLUETOOTH 4.0: Bluetooth Connectivity Enables Wireless Mobile Printing capability.
APP SUPPORT: AEPS Kiosk Banking Printer, Blling Apps Vypaar, BillBook, KhataBook, etc
RESTAURANT APPS: Supports Restarunt Apps Swiggy, Zomato, PetPooja, IvPOS, etc
EASY INSTALL: Quality printing and low cost, Low noise. 1-Year Warranty.
ZERO MAINTENANCE: No ribbon, no ink cartridge. The printer Head has a Life cycle of up to 100 Km
Product Overview
Feature | Details |
|---|---|
Model | H58BT |
Printing Method | Thermal Receipt Printer – Not Label/Sticker |

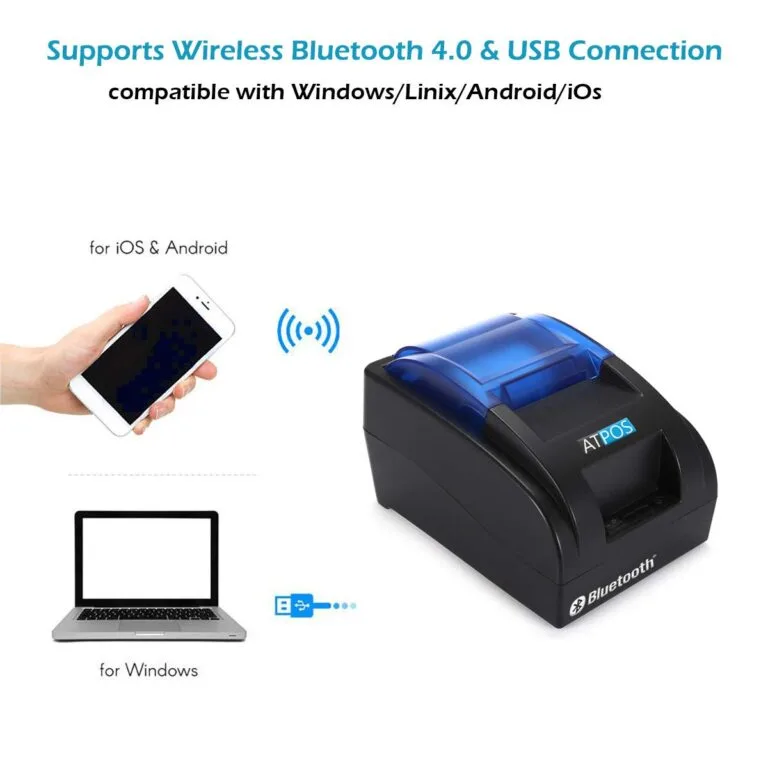

Interface | Bluetooth + USB |

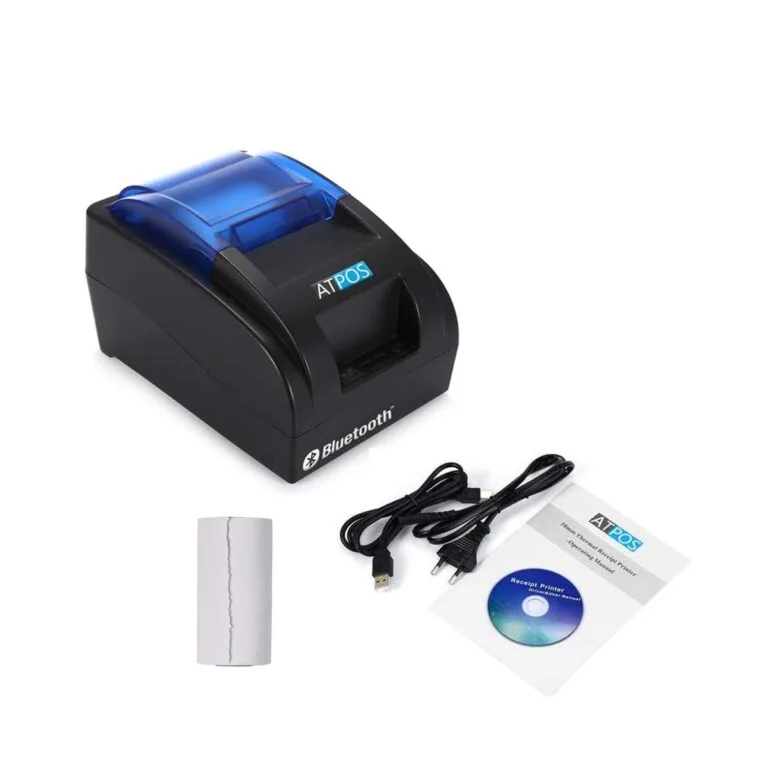

Standard Accessories | Roll Paper x 1, CD-ROM (Drivers, Utility Software, Manuals), USB Cable, Power Cable |
Weight | 0.75 kg |
Technical Specifications
Feature | Details |
|---|---|
Brand | Atpos |
Font Types | 9×17 / 12×24, Hanji Font: 24×24, Thai Font: 9×24 / 12×24 |
Character Size (W x H) | 0.88×2.13mm / 1.25x3mm, Hanji Font: 3x3mm, Thai Font: 0.88x3mm / 1.25x3mm |
Character Set | 95 Alphanumeric, 18 International sets, 128×43 pages (user-defined included), Hanz Barcode: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODEBAR (NW-7), CODE93, CODE128, GS1-128, Gs1 DataBar, PDF417, QR Code, MaxiCode, 2D Gs1 DataBar Composite Symbology |
Characters Per Inch | 22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font: 22.6cpi / 16.9cpi |
Installation | Horizontal |
Buffer | 2048K bytes, NV Flash: 256K bytes |
Print Speed | Max 90 mm/s |
Dot Density | 384 dots/Line (8 dots/mm, 203 dpi) |
Paper Dimensions | Width: 57.5 ± 0.5 mm × Roll Diameter: 83.0 mm |
Power | DC +12V ± 5% |
Operating Current | Approx. 3A (at 18% print ratio) |
Standby Current | Approx. 0.1A |

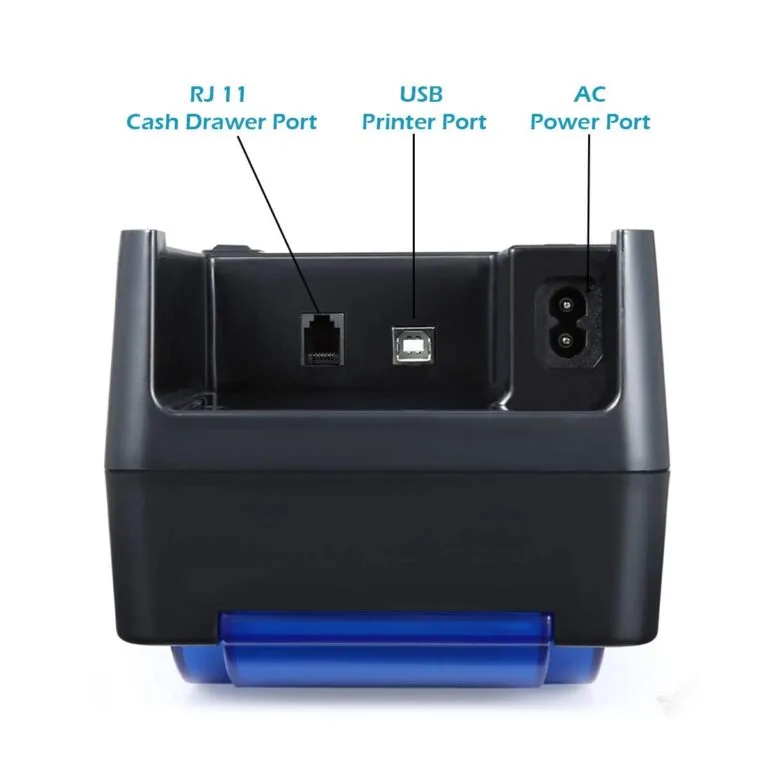

Cash Drawer Power Supply | DC 12V 1A |
Cash Drawer Integration | Yes, Supported |

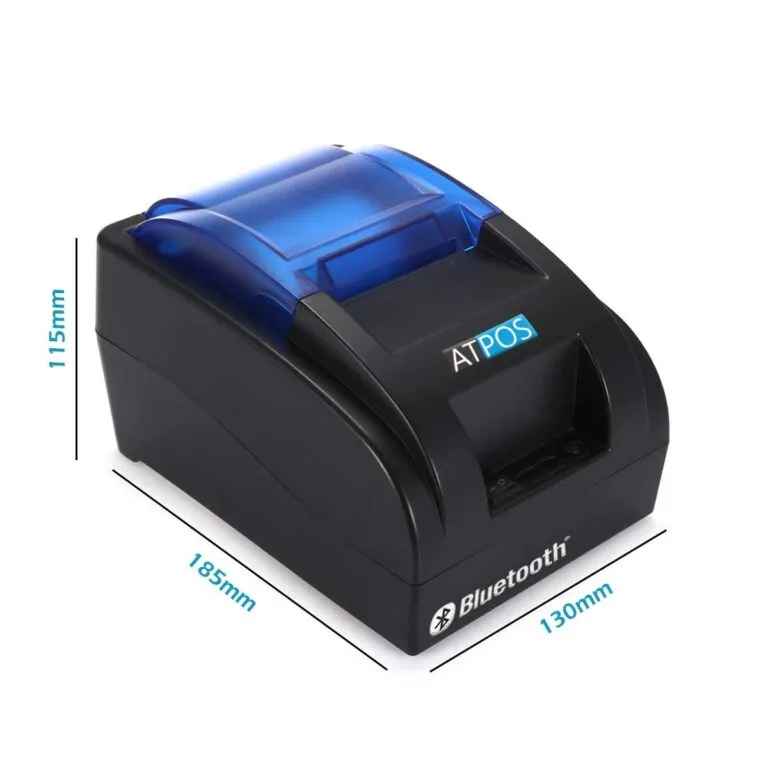

Dimensions (D x W x H) | 185 x 115 x 130 mm |
Printer Head Life | 100 KM (Print Density <12.5) |
Cutter | Manual Blade – 100,000 times |
Warranty | 1 Year |
General
- Type Of PrinterReceipt Printers
- InterfaceBluetooth + USB
Print Details
- Printing MethodThermal Receipt Printer – No Label/Sticker
- Resolution203 DPI
- Printing SpeedMax 90mm/s
- Buffer2048K bytes NV Flash: 256K bytes
- CutterManual Blade
- PowerDC +12V ± 5%
