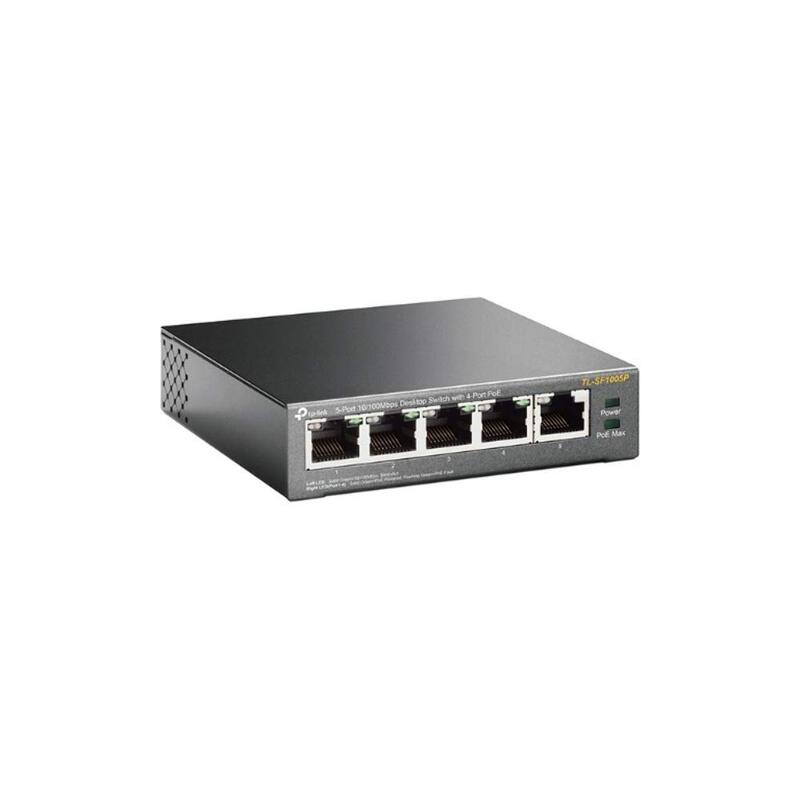

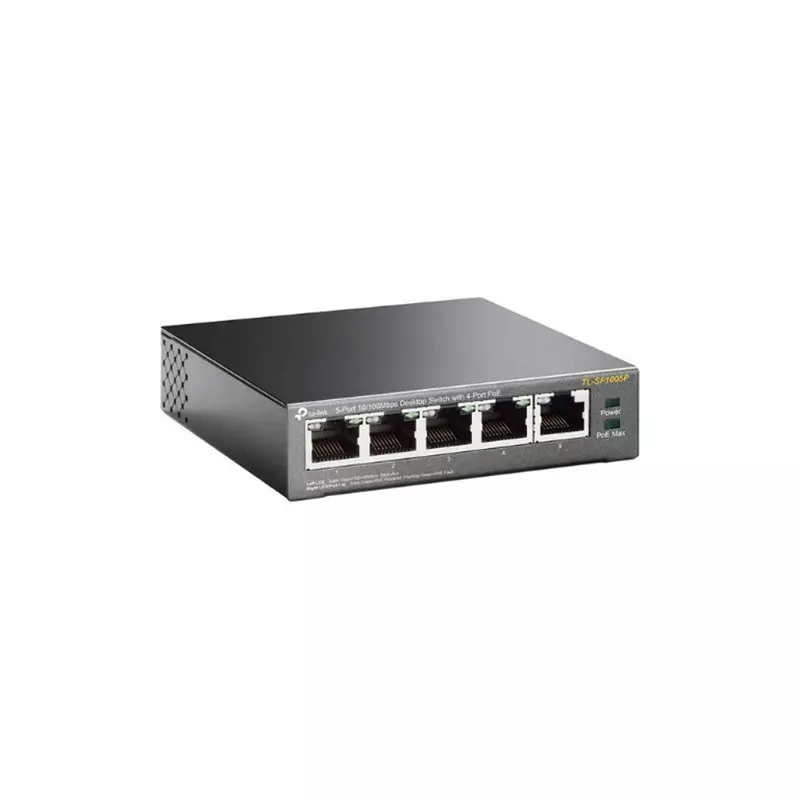

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+(TL-SF1005P)

Hardware Features

Interface

• 5× 10/100 Mbps RJ45 Ports (4× PoE+ ports, 802.3af/at compliant)
• AUTO Negotiation
• AUTO MDI/MDIX

Network Media

• 10BASE-T: UTP cat 3, 4, 5 (max 100m)
• EIA/TIA-568 100Ω STP (max 100m)
• 100BASE-TX: UTP cat 5, 5e (max 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

External Power Supply

External Power Adapter (Output: 53.5V DC / 1.31A)

Packet Forwarding Rate

0.744 Mpps

PoE Ports (RJ45)

• Standard: 802.3af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 67 W

MAC Address Table

2K

Jumbo Frame

2 KB

Switching Capacity

1 Gbps

Dimensions (W x D x H)

99.8 × 98 × 25 mm (9.98 × 9.8 × 2.5 cm)

Max. Power Consumption

• 3.44 W (no PD)
• 74.49 W (with 67 W PD)

Max. Heat Dissipation

• 11.73 BTU/h (no PD)
• 254.01 BTU/h (with 67 W PD)

Advanced Features

• IEEE 802.3af/at PDs compatible
• MAC address auto-learning & auto-aging
• IEEE 802.3x Flow Control
• Extend Mode (Ports 1–4, up to 250m)
• PoE Auto Recovery (Ports 1–4)

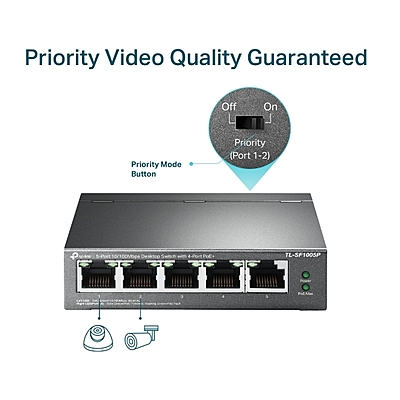

• Priority Mode (Ports 1–2)

Transmission Method

Store-and-Forward

Certification

FCC, CE, RoHS

Package Content

• TL-SF1005P
• Power Adapter
• Installation Guide
