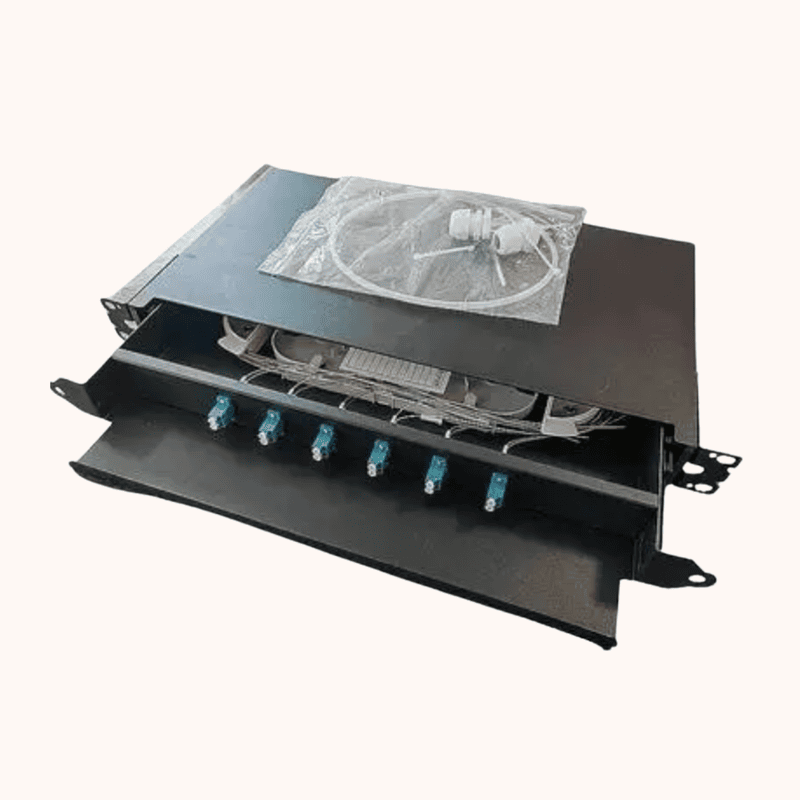

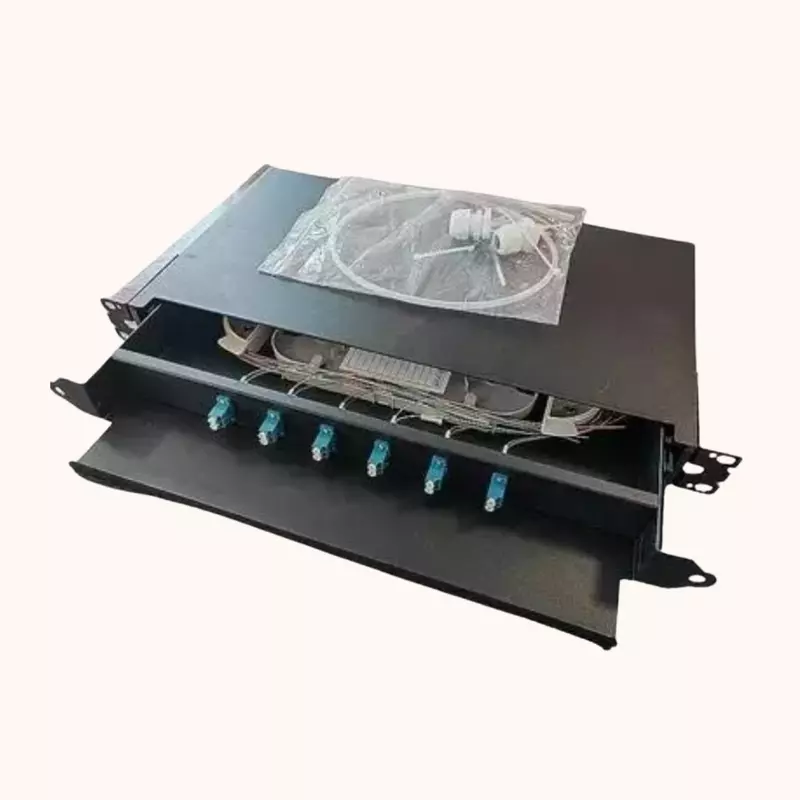

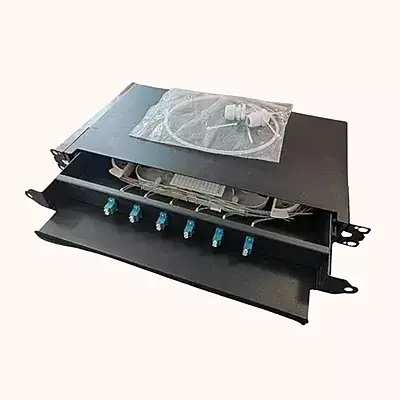

D-Link 6 Port Loaded LIU LC MM (NLU-FMSLLCR-06)
6 Ports: 6-port Loaded Interface Unit (LIU) for fiber optic connections
LC MM (Multimode): Supports LC connectors for multimode fiber optic cables, ideal for high-speed data transmission
Compact Design: Designed to fit in standard 1U rack spaces for efficient use of space
Durable & Reliable: Provides long-lasting, stable performance in fiber optic network installations
Feature | Description |
|---|---|
Model | D-Link NLU-FMSLLCR-06 |
Type | 6 Port Loaded LIU (Fiber Splice and Distribution Panel) |
Port Configuration | 6 Ports with LC Duplex Fiber Optic Connectors |
Fiber Type | Multi-Mode (MM) Fiber |
Mounting Type | Rack-Mountable (Fixed 1U design) |
Fiber Splice Tray | Includes fiber splice trays for secure fiber splicing and organization |
Port Density | 6 Ports providing high-density fiber connections within a compact 1U rack space |
Fiber Compatibility | Designed for Multi-Mode (MM) fiber optic cables |
Construction | Metal housing for durability and to protect fiber optic components from physical damage |
Jacket Material | LSZH (Low Smoke Zero Halogen) material for safety, reducing smoke in case of fire and ensuring safe operation in confined spaces |
Applications | - Ideal for data centers, network infrastructure, and telecommunications rooms - Suitable for high-performance fiber optic connections |
Labeling System | Labeling fields for clear identification of fiber ports, making it easy to track fiber connections and simplifying maintenance and upgrades |
Weight | 1.0 kg (2.2 lbs) |
Dimensions (H x W x D) | 44 mm x 442 mm x 250 mm |
Cooling and Ventilation | Designed for efficient airflow to ensure that fiber optic connections operate at optimal temperatures and prevent overheating |
Security | - Locking mechanisms to prevent accidental disconnections - Protective covers to safeguard fiber ports from dust and physical damage |
Installation Flexibility | - Compatible with standard 19-inch racks - Easy installation into existing setups, supporting both rack-mountable and wall-mountable options |
Durability | Built for long-term durability, ideal for high-traffic networks and industrial environments. Designed to withstand environmental conditions |
Compliance | - RoHS Compliant - CE Certified - Meets industry standards, such as TIA/EIA-568-C.3 for fiber optic installations |
Warranty | 1-Year Limited Warranty |
Additional Features | - Provides a high-density solution for fiber optic management in a small, compact space - Easy access for future upgrades, maintenance, and testing |
