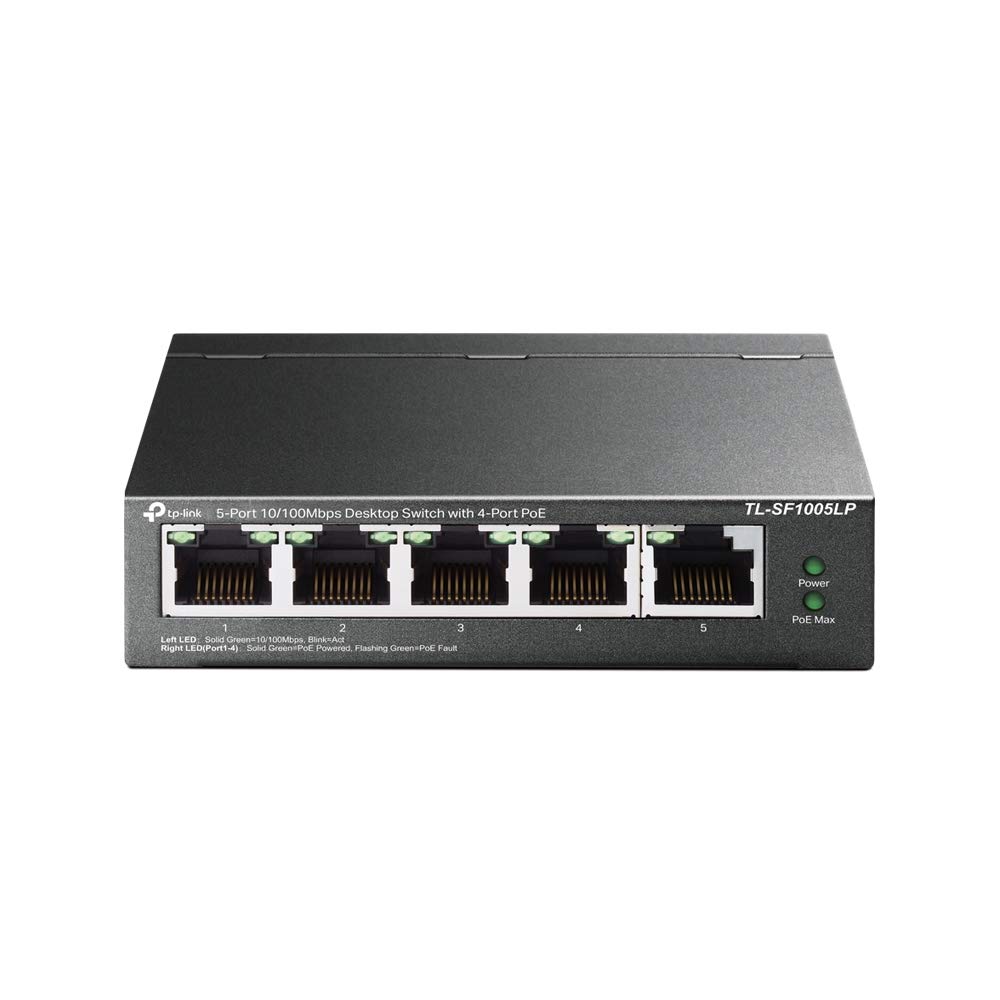

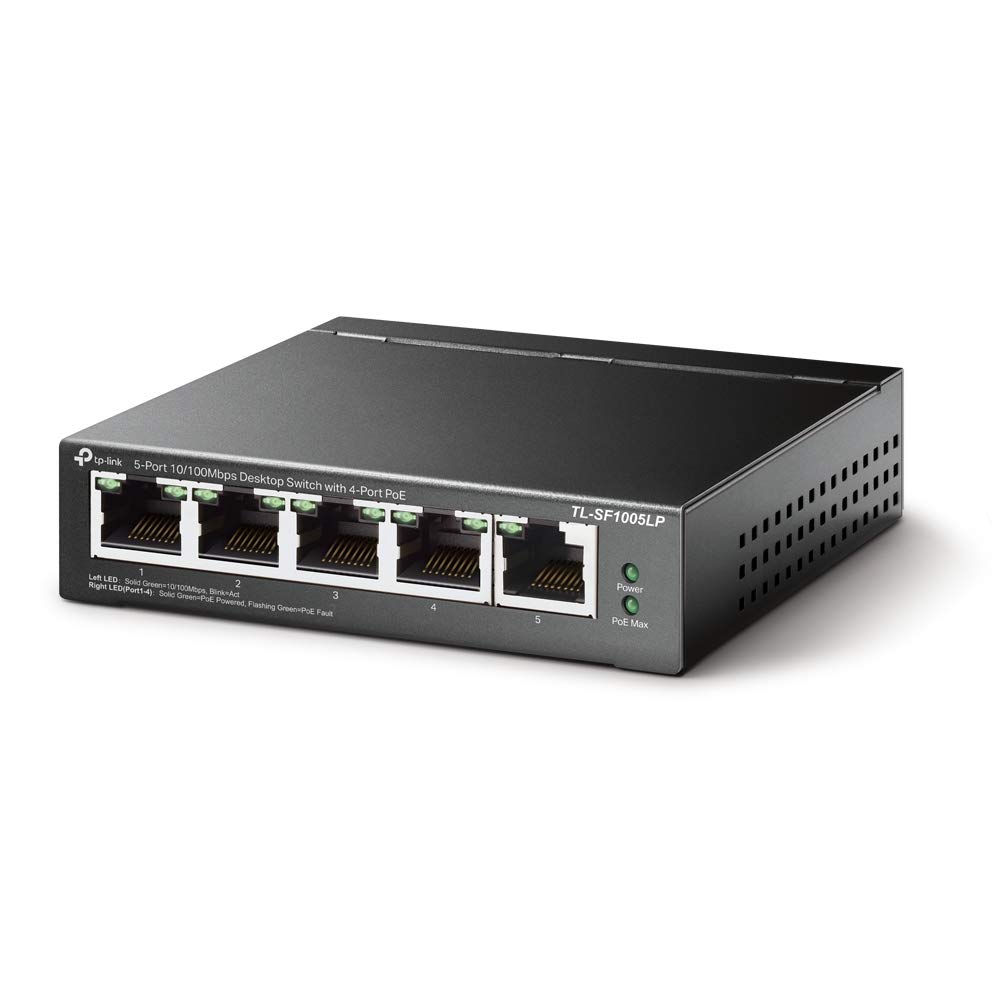

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE-TL-SF1005LP

HARDWARE FEATURES

Interface

- 5 × 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
- AUTO Negotiation
- AUTO MDI/MDIX

Network Media

- 10BASE-T: UTP Cat 3, 4, 5 (max 100m)
- EIA/TIA-568 100Ω STP (max 100m)
- 100BASE-TX: UTP Cat 5, 5e (max 100m)
- EIA/TIA-568 100Ω STP

Fan Quantity

Fanless

Physical Security Lock

Yes

External Power Supply

External Power Adapter (Output: 53.5 V DC / 0.81 A)

Packet Forwarding Rate

0.744 Mpps

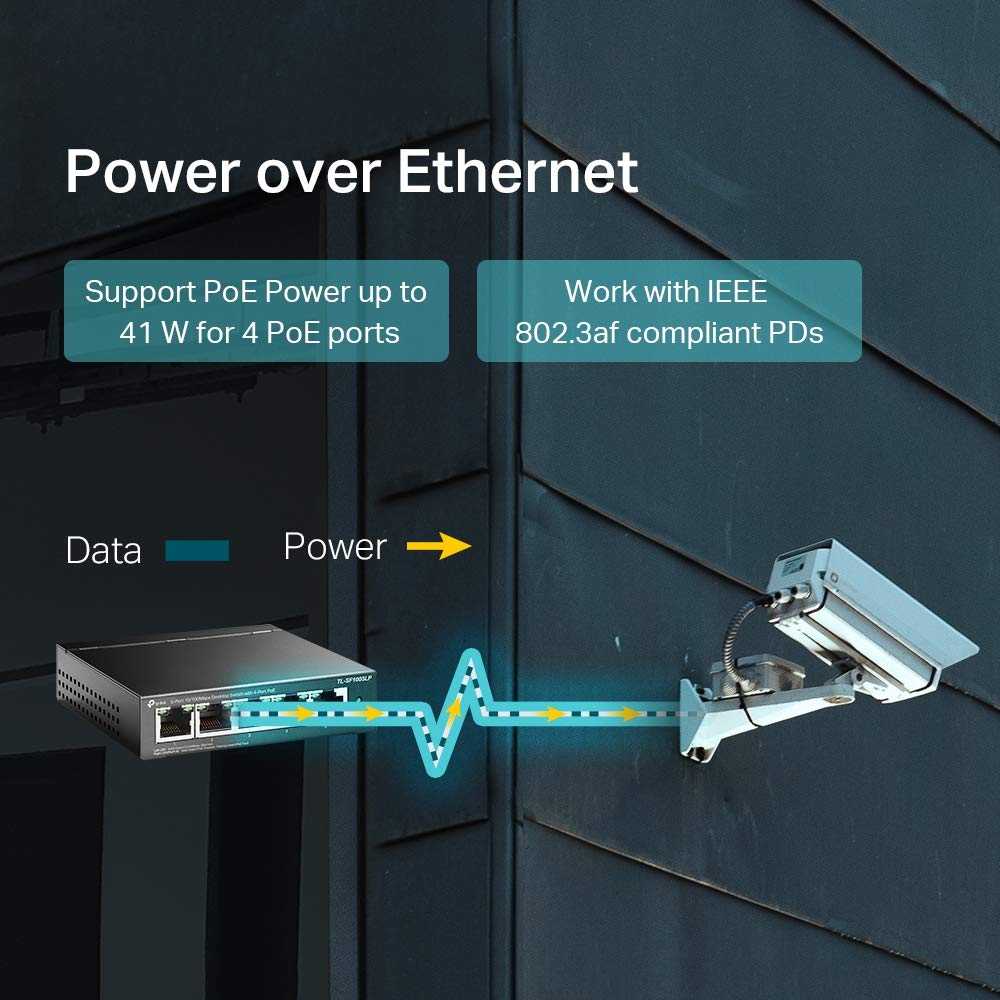

PoE Ports (RJ45)

- Standard: 802.3af compliant
- PoE Ports: Ports 1–4
- Power Supply: 41 W

MAC Address Table

2K

Jumbo Frame

2 KB

Switching Capacity

1 Gbps

Dimensions (W × D × H)

3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

Max. Power Consumption

- 1.9 W (220 V / 50 Hz, no PD connected)
- 47 W (220 V / 50 Hz, with 41 W PD connected)

Max Heat Dissipation

- 6.48 BTU/h (no PD connected)
- 160.27 BTU/h (with 41 W PD connected)

SOFTWARE FEATURES

Advanced Features

- Compatible with IEEE 802.3af/at Compliant PDs
- Extend Mode Button (Ports 1–4)
- Priority Mode Button (Ports 1–2)
- MAC Address Auto-Learning and Auto-Aging
- IEEE 802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode

Transmission Method

Store-And-Forward
