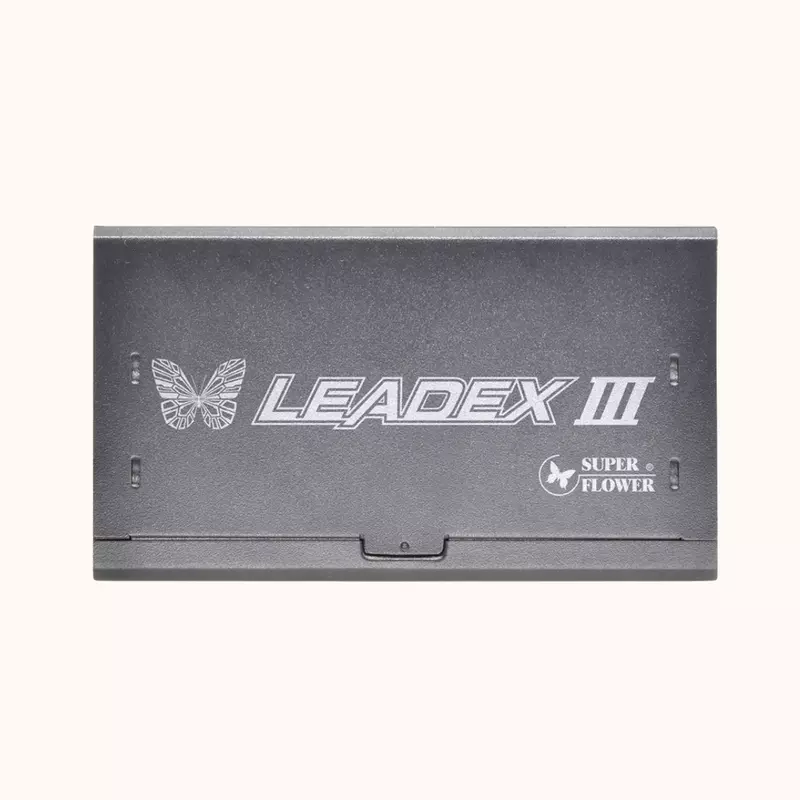

Super Flower Leadex III GOLD-850W ATX3.1, PCIe5.1 - SF-850F14GL(GE)
Feature | Details |
|---|
Model Number | SF-850F14GE |
Wattage | 850W |
Efficiency | 87% @ 20%, 90% @ 50%, 87% @ 100% (115V Internal Gold Efficiency) |
Intel Power Design | EPS Ver. 2.92 & ATX 3.1 Compliant |
CPU & Motherboard Support | Supports all Intel / AMD multi-core CPUs and ATX / BTX compatible motherboards |
Voltage / Frequency | 100V–240V |
Feature | Details |
|---|
Fan Type | 140mm F.D.B (Fluid Dynamic Bearing) fan with 7-blade design for high airflow and low noise (dBA) |
Cooling Mechanism | Copper shaft around bearing for better stability, heat dissipation, and longer lifespan |
Connector Design | Patented Buckle (20+4) Pin Connector (Patent No.: Taiwan M563575 ; China 7566010; USA) |
DC Output Stability | +12V / +5V / +3.3V rails maintain stable voltage and low ripple under dynamic loads |
Dynamic Load Performance | Improved transient response on all key voltage rails |
Voltage Ripple Control | Exceptionally low ripple on +12V output |
Eco Design | Auto & ECO fan control; high rail efficiency including 5VSB |
Modularity | 100% Fully Modular with ultra-flexible flat ribbon cables |
Efficiency Certification | 80 PLUS® Gold Certified: 87% @ 20%, 90% @ 50%, 87% @ 100% load |
Main Capacitor | High-quality Japanese capacitor for stability and longevity |
Voltage Input Range | Full range 100V–240V with Active PFC |
Compliance Standards | ATX 12V v3.1, EPS 12V v2.92; Energy Star & EuP (Energy Using Products) compliant |
General
- Wattage850 Watt
- ModularFully Modular
- Connector TypeATX
- PCIe Connector (6+2)4
