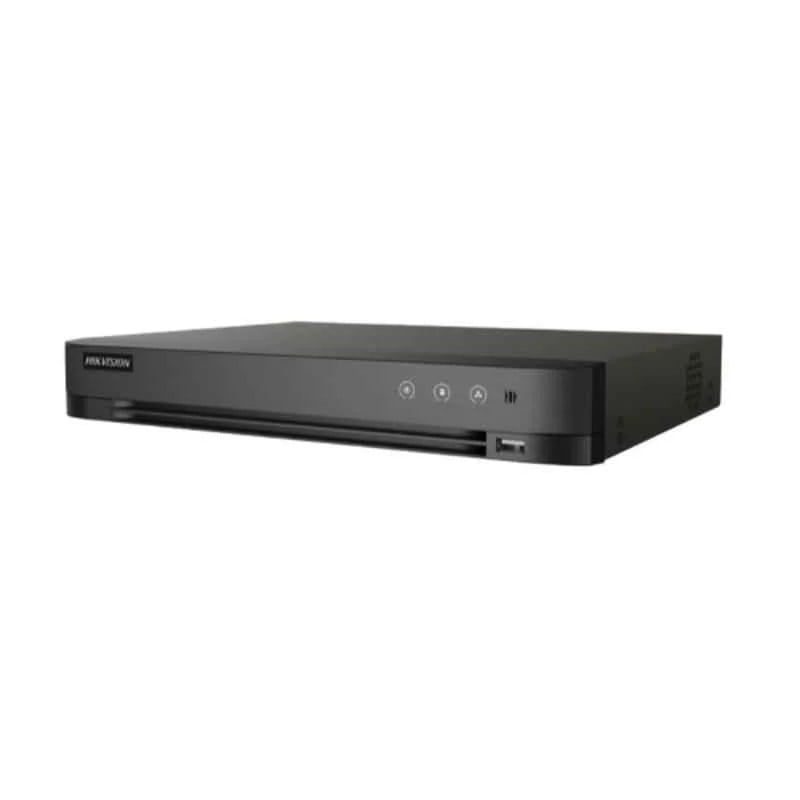

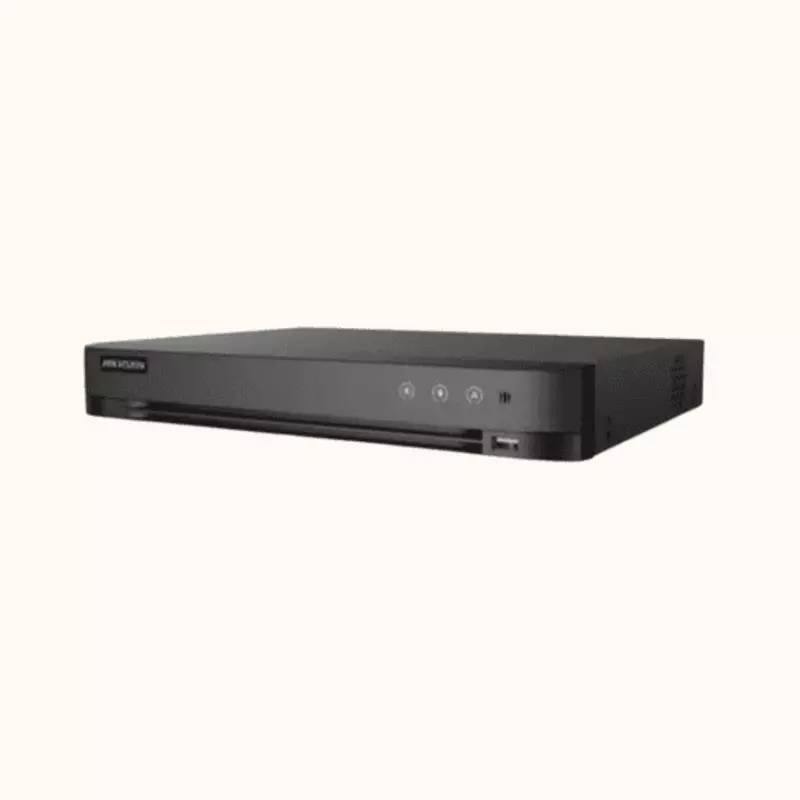

HIKVISION 16CH face Detection DVR (iDS-7216HQHI-M1/FA)
Category | Details |
|---|---|
Video Input | 16-ch Analog + 2 IP (up to 18-ch), Enhanced Mode: 8 IP (up to 24-ch) |
Max IP Resolution | Up to 6 MP |
Analog Formats | HDTVI, AHD, HDCVI, CVBS (supports up to 5 MP) |
Video Compression | H.265 Pro+/H.265/H.264+/H.264 |
Audio Input/Output | 1-ch RCA (optional up to 16-ch via coax), 1-ch RCA out |
Two-Way Audio | 1-ch RCA |
Recording Resolution | 3K lite, 5 MP lite, 4 MP lite, 1080p, 720p, CIF, etc. |
Synchronous Playback | 16-ch |
Video Outputs | 1 HDMI (up to 4K), 1 VGA (Full HD), 1 CVBS |
Network Interface | 1 x RJ45 10/100/1000 Mbps |
Remote Connections | Up to 128 devices |
USB Ports | 1 × USB 2.0 (Front), 1 × USB 3.0 (Rear) |
HDD Support | 1 SATA up to 10 TB |
Power Supply | 12 VDC, 2 A |
Dimensions | 315 × 242 × 45 mm |
Weight | ≤ 2 kg |
Feature | Description |
|---|---|
Video Input | 5 signals supported adaptively: HDTVI, AHD, CVI, CVBS, IP |
Channels | 16 video channels |
Form Factor | 1U DVR with space for 1 HDD |
AI Features | Facial recognition, false alarm reduction using deep learning |
Search Functions | Face picture comparison and search supported |
Compression Technology | H.265 Pro+ for efficient storage |
Encoding Capability | Up to 3K/5MP Lite @ 12 fps |
Network Camera Support | Up to 24 IP/network cameras can be connected |
General
- Product TypeDVR
- HDD Capacity10TB
- Channels Quantity16 Channels
- Megapixel (Approx.)4 MP
- Night VisionYes
- Mic SupportedYes
