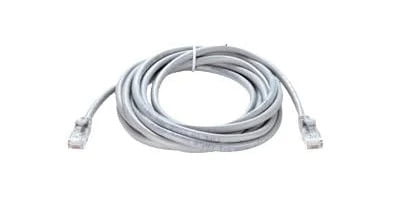

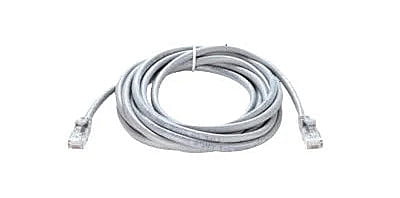

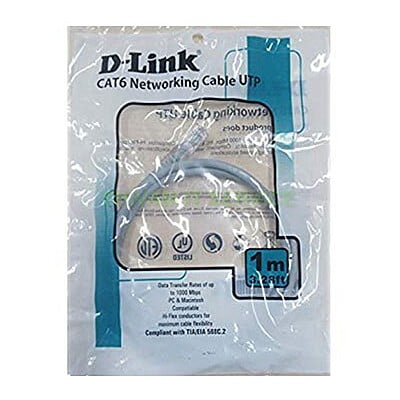

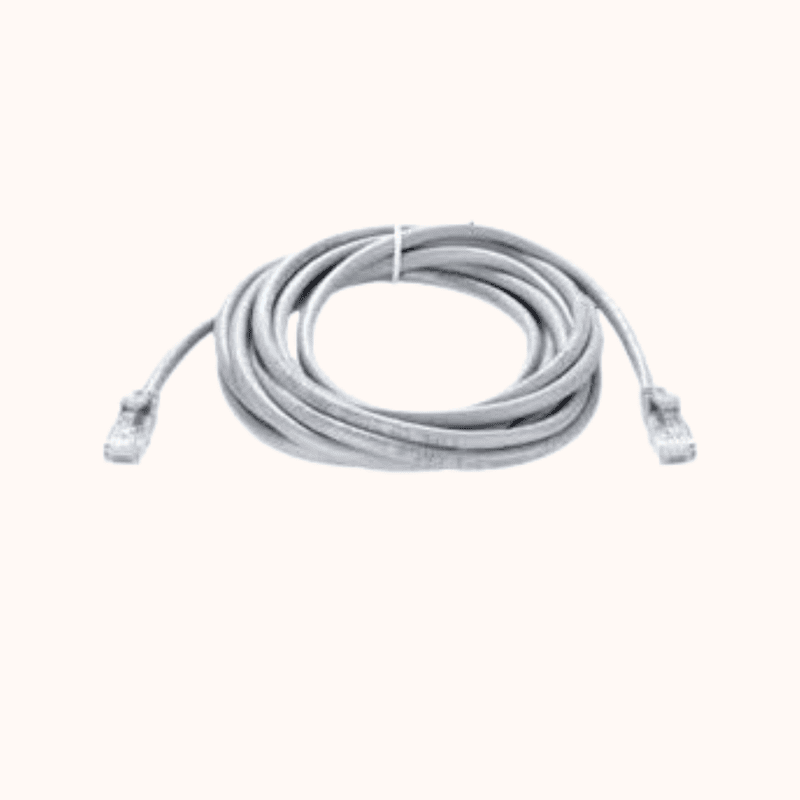

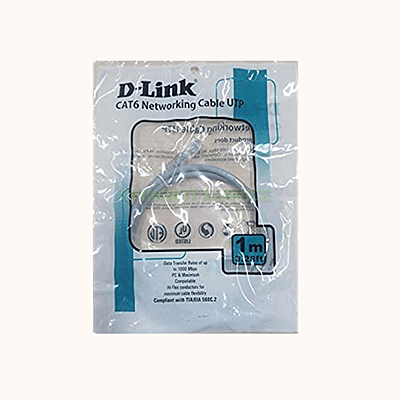

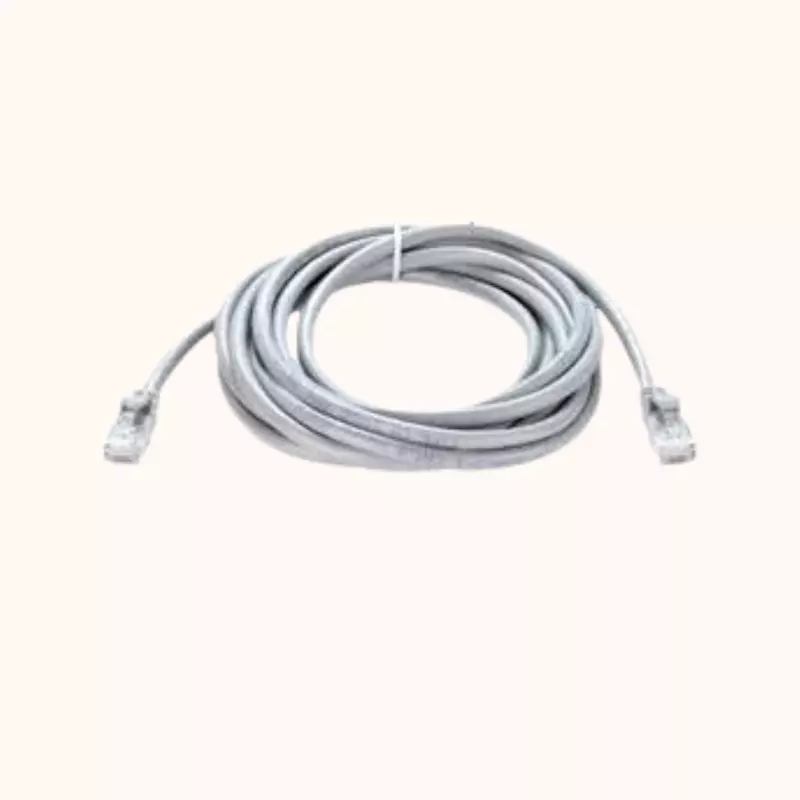

D-Link Patch Cord Grey 1 MTR (NCB-C6UGRYR1-1)
Rs. 120.00
Rs. 400.00
Brand: D-Link
Model: NCB-C6UGRYR1-1
Type: Cat6 Ethernet Patch Cord
Length: 1 Meter
Color: Grey
Model: NCB-C6UGRYR1-1
Type: Cat6 Ethernet Patch Cord
Length: 1 Meter
Color: Grey
Product Details
Specifications
Product Details
Product Details
| Specification | Details |
|---|---|
| Brand | D-Link |
| Model | NCB-C6UGRYR1-1 |
| Product Type | Ethernet Patch Cord |
| Cable Category | Category 6 (Cat6) |
| Cable Type | UTP (Unshielded Twisted Pair) |
| Connector Type | RJ45 to RJ45 (8P8C) |
| Cable Length | 1 Meter |
| Cable Color | Grey |
| Number of Pairs | 4 Twisted Pairs |
| Conductor Material | Bare Copper |
| Wire Gauge | 24 AWG |
| Maximum Bandwidth | Up to 250 MHz |
| Maximum Data Speed | Up to 1 Gbps (Gigabit Ethernet) |
| Connector Contact | Gold-Plated RJ45 Contacts |
| Insulation Material | HD-PE (High Density Polyethylene) |
| Jacket Material | PVC UL94V-0 |
| Operating Temperature | -10°C to 80°C |
| Standards Compliance | TIA/EIA-568C.2, UL, RoHS |
| Application | Routers, Switches, Patch Panels, Computers, Network Devices |
Specifications
Specifications
General
- Types Of CablesPatch Cord
- UTP Cables TypesCat 6
- HDMI Connector TypeRJ45
- Cable Connector GenderMale-to-Male
- Ethernet Cable CategoryCat 6
- Connector 1 GenderMale
- Connector 1RJ-45
- Connector 2 GenderFemale
- Connector 2RJ-45
- Cable ShapeRound
- Outer MaterialPolyvinyl Chloride (PVC)
- Product ColourGrey
Size
- Item Length1 m
- Item Weight250 g
