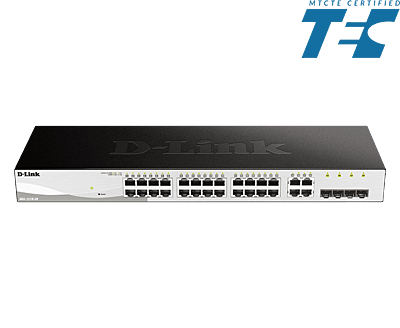

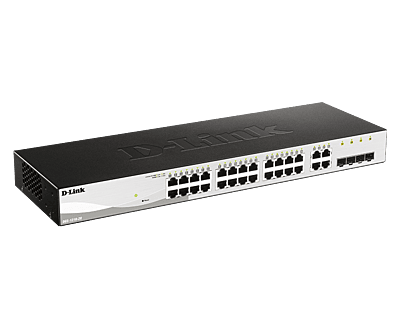

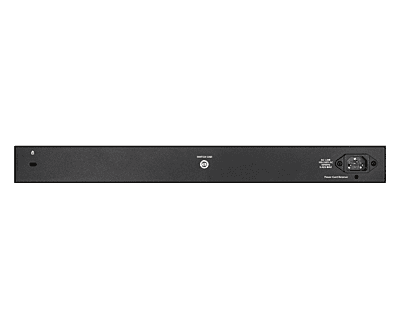

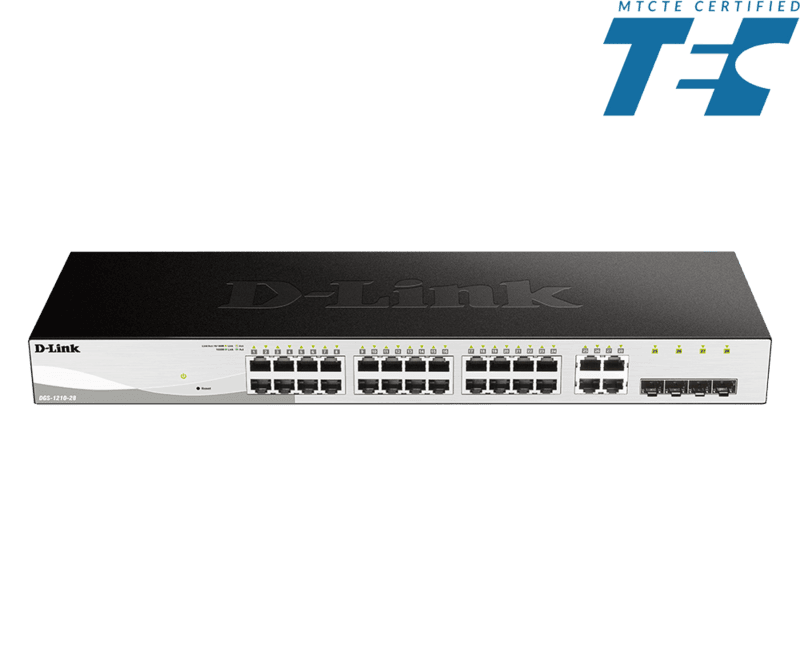

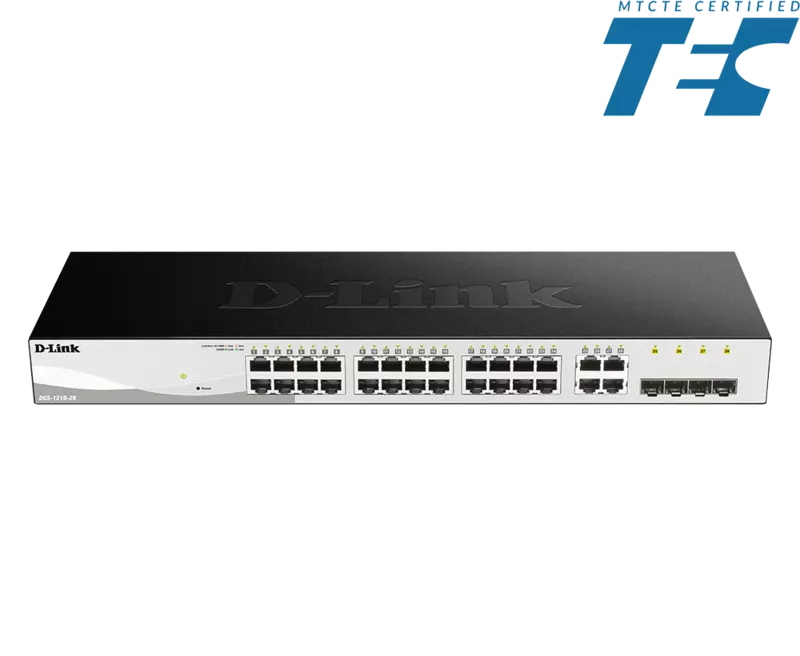

D-Link Port PoE Gigabit Smart Switch (DGS-1210-28P)
28 Ports: 24 Gigabit Ethernet ports and 4 SFP ports
PoE Support: 24 Power over Ethernet (PoE) ports to power devices like IP cameras and access points
Smart Managed: Features for advanced network control and optimization
Energy Efficient: Designed with energy-saving technologies for cost-effective operation
Feature | Description |
|---|---|
Model | D-Link DGS-1210-28P |
Ports | 24 Gigabit Ethernet Ports + 4 Gigabit SFP Ports |
PoE Support | 24 Ports with IEEE 802.3af/at Power over Ethernet (PoE/PoE+) providing a total power budget of up to 192W |
Managed Type | Smart Managed (Web-based management interface) |
Layer | Layer 2 (Switching) |
Switching Capacity | 56 Gbps (Full Duplex) |
Forwarding Rate | 41.67 Million Packets per Second (Mpps) |
QoS (Quality of Service) | Advanced QoS features including 802.1p, DiffServ, and traffic prioritization for optimized bandwidth allocation |
VLAN Support | Supports up to 256 VLANs with IEEE 802.1Q VLAN tagging |
Link Aggregation | Supports Link Aggregation (LACP - IEEE 802.3ad) for network redundancy and enhanced bandwidth |
Security Features | - 802.1X Port Security - Access Control Lists (ACL) - Storm Control (Broadcast/Multicast/Unicast) - MAC Address Filtering |
Redundancy and Reliability | - Spanning Tree Protocol (STP) - Rapid Spanning Tree Protocol (RSTP) - Loopback Detection |
SFP Ports | 4 Gigabit SFP Ports for fiber uplinks |
Management Interface | Web-based GUI, CLI, SNMP v1/v2/v3, Telnet for configuration and management |
Energy Efficiency | - IEEE 802.3az Energy Efficient Ethernet (EEE) - D-Link Green technology for energy savings when devices are inactive or idle |
Cooling | Fanless design for quiet operation |
Power Supply | Internal Power Supply (100-240V AC, 50/60Hz) |
Dimensions (H x W x D) | 44 mm x 442 mm x 180 mm |
Weight | 2.6 kg (5.73 lbs) |
Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Warranty | 5-Year Limited Warranty |
Additional Features | - DHCP Snooping, Dynamic ARP Inspection (DAI) - Smart fan technology for cooling - Diagnostic LEDs for port status monitoring - CLI support for advanced configuration |
