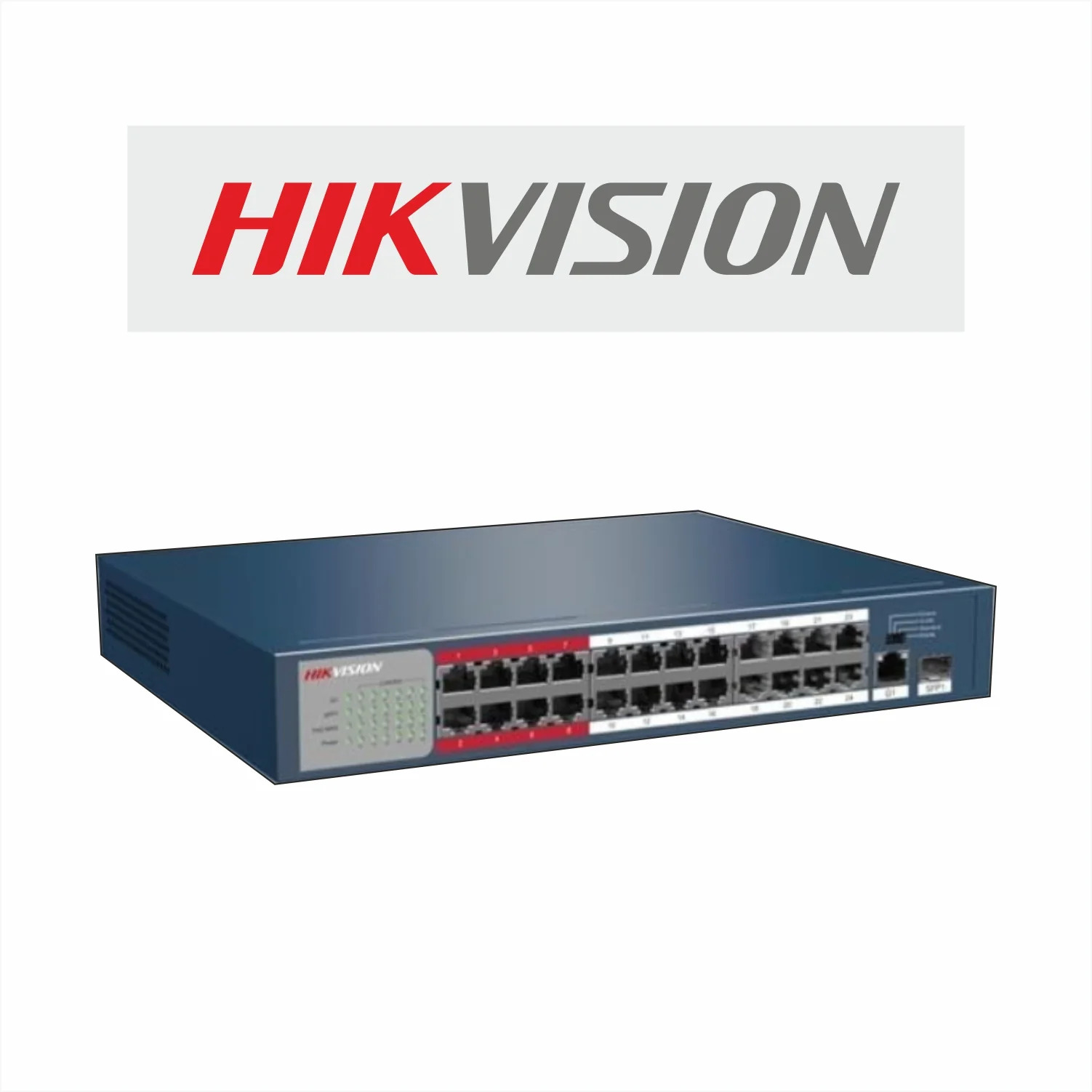

HIKVISION M 10/100Mbps 24 +2,230W/ (DS-3E0326P-E)
Rs.11,896.00 Rs.21,300.00
Tags:
Unmanaged PoE Switch Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.1Q, and IEEE802.3x Ethernet standards 24*10/100 Base-TX Ethernet ports, one 10/100/1000 Base-T Ethernet port and one 10/100/1000 Base-X SFP optical module port Ports 1 - 24 are 10/100 Mbps downlink ports and comply with IEEE 802.3af and IEEE 802.3at. The maximum of 30W port output PoE power and the maximum of 225W total output PoE power Support four network modes: Priority, Standard, Isolate and Extend 4K MAC address and MAC address learning 8.8 Gbps backplane bandwidth Store-and-Forward switching All-mental construction 13 inch length and 1 U standard height size allow it to be mounted on subrack.
Choose Quantity
Product Details
Specifications
Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime. Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters. 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables. 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment. Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
General
- TypesUnManaged
- Switching Capacity8.8 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports24
- No. Of Power Supplies Supported8
- Rack MountingYes
