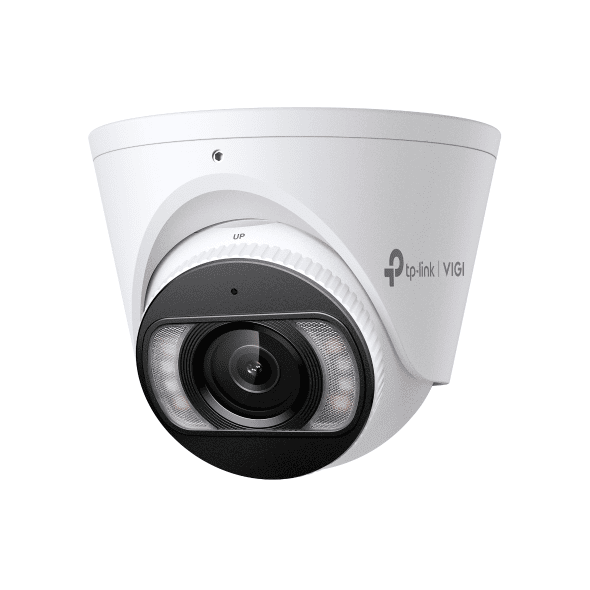

Tp-link VIGI 8MP Full-Color Turret Network Camera-C485
Feature | Specification |
|---|---|
Resolution | 4MP (2560 × 1440) for high-definition video |
Lens | 2.8mm Fixed Lens, offering wide coverage |
Night Vision | IR range of up to 30m (98ft) with 850nm wavelength |
Day/Night Mechanism | IR Cut Filter for clear color imaging in both day and night |
Power | Supports Power over Ethernet (PoE) for easy installation |
Camera Specifications
Feature | Specification |
|---|---|
Image Sensor | 1/2.7” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10,000 s |
Slow Shutter | Yes |
Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Unified / Scheduled / Auto |
Lens Specifications
Type | Fixed Focal Lens |
|---|---|
Focal Length | 2.8 mm / 4 mm |
Aperture | F1.6 |
Lens Mount | M12*P 0.5 |
Field of View (FOV)
Focal Length | Horizontal FOV | Vertical FOV | Diagonal FOV |
|---|---|---|---|
2.8 mm | 111.4° | 58.8° | 134° |
4 mm | 91.5° | 46.1° | 109.6° |
DORI Distance
Focal Length | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
2.8 mm | 85 m (278 ft) | 35 m (116 ft) | 17 m (56 ft) | 8 m (28 ft) |
4 mm | 107 m (350 ft) | 44 m (146 ft) | 21 m (70 ft) | 11 m (35 ft) |
Angle Adjustment (Manual)
Pan | 0° to 360° |
|---|---|
Tilt | 0° to 85° |
Rotation | 0° to 360° |
Illuminator
IR LED | Quantity: 4<br>Range: 30m (98ft)<br>Wavelength: 850nm |
|---|---|
White LED | Quantity: 4 |
Illuminator Control | Auto / Scheduled / Always on / Always off |
Video
| Max. Resolution | 3840 × 2160 (4K UHD) |
General
- TypesIP
- Placement SupportedOutdoor
- Case TypeTurret
- Megapixel (Approx.)8 MP
- Mounting TypeCeiling/Wall
- AudioBuilt in Microphone & Speaker
- Connectivity TechnologyWired
- Video Motion DetectionYes
- Wi-FiNo
- Power Over EthernetYes
