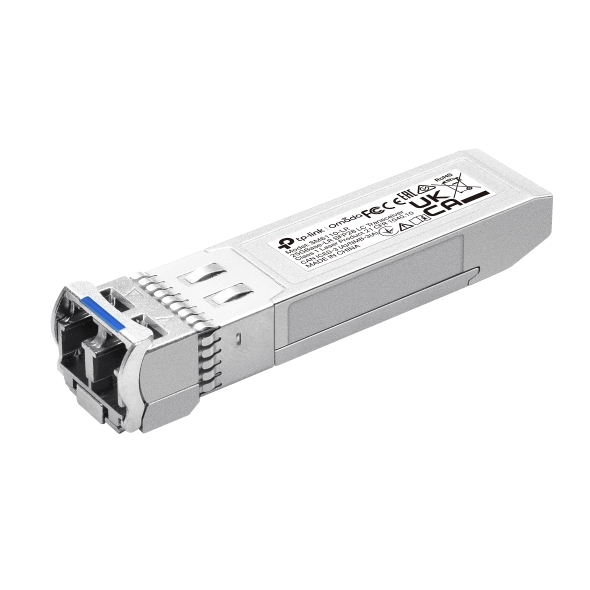

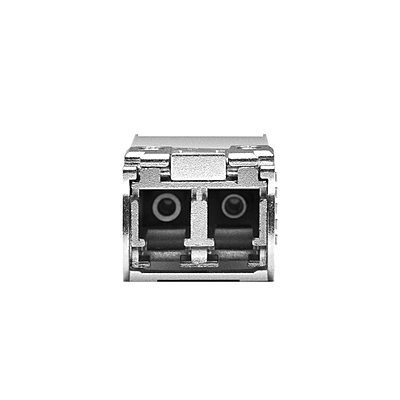

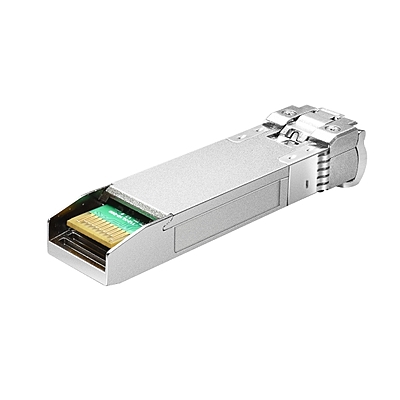

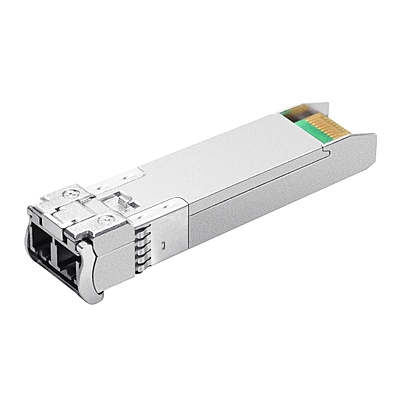

TP-Link Omada 25GBase-LR SFP28 LC Transceiver , SM6110-LR
Feature | Description |
|---|---|
Type | LC Transceiver, Single-Mode SFP+/SFP28 |
Data Transmission Speed | Transmits data up to 25.78 Gbps |
Distance | Supports a transmission distance of up to 10km |
Compatibility | DDM (Digital Diagnostic Monitoring) supported, Hot-Pluggable for easy installation |
Power Consumption | Designed for low power consumption |
Feature | Description |
|---|---|
Standards and Protocols | IEEE 802.3ae, 802.3cc, SFF-8402, SFF-8431, SFF-8432, SFF-8472, eCPRI, CPRI, TCP/IP |
Wave Length | 1310 nm |
Power Supply | 3.3V |
Fiber Type | 9/125um Single-Mode |
Max. Cable Length | 10 km |
Connector | Duplex LC/UPC |
Regulatory Compliance | CE, FCC, RoHS |
Operating Temperature | 0°C to 70°C (32°F to 158°F) |
Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Operating Humidity | 10% to 90% RH, Non-Condensing |
Storage Humidity | 5% to 90% RH, Non-Condensing |
DDM | Yes |
SFP-MSA | Yes |
Hot Swappable | Yes |
Dimensions (W x D x H) | 2.24 x 0.55 x 0.47 in (57 x 14 x 12 mm) |
Package Content | SM6110-LR, Installation Guide, SFP28 Cable |
Data Rate | Dual Rate 25.78 Gbps and 10.31 Gbps |
General
- Interface TypeSFP
- Maximum Data Transfer Rate1.25 Gbps
