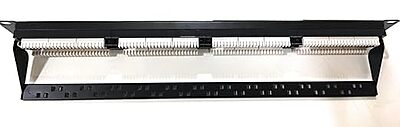

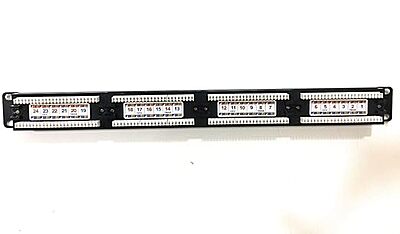

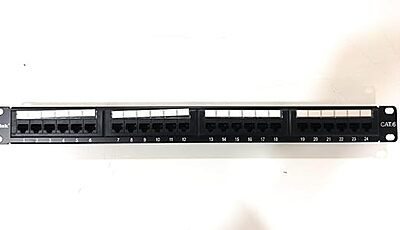

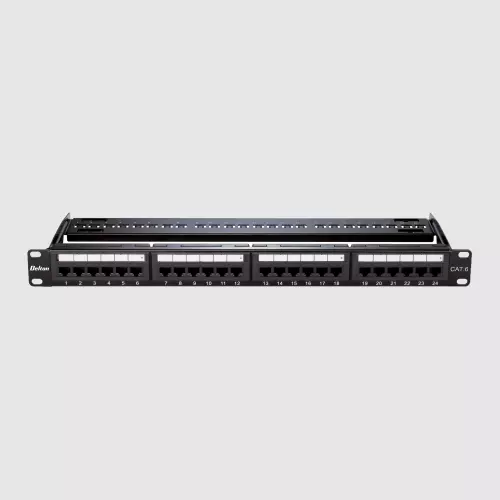

Delton Cat6 STP 24Port Loaded Patch Panel
Component | Material / Specification |
|---|---|
Product Types | RJ45 Jack Panel & RJ45 Jack Shield |
Identification Marking | Silk printing in white color |
Panel Material | SPCC (Steel), 1.5 mm thickness |
Housing (Panel) | PBT + Glass Fiber, UL 94V-0 rated |
Contact Brackets | PBT + Glass Fiber, UL 94V-0 rated |
RJ45 Jack Contact | Phosphor Bronze with Nickel Plating |
Shield Type | IDC (Insulation Displacement Contact) |
Contact Finish | 50 micro-inches Gold plated on plug contact area |
Shield Material | Bronze with Nickel Plating |
Housing (Shield) | PC, UL 94V-0 rated |
Terminal Material | Phosphor Bronze with Tin Plating |
Ground Wire | 18 AWG, Green/Yellow striped color |
Patch Panel – Features & Specifications
Feature / Component | Description |
|---|---|
Design | 180° Punch Down Design for Network Terminations |
Cable Management | Built-in rear cable management for easy installation |
Module Configuration | 6×4 module, specially designed jack configuration |
Module Design | Front removable and replaceable modules for ease of troubleshooting |
Rack Compatibility | 1U patch panel, compatible with any standard rack |
Port Identification | Easy port labeling and identification provision |
Wire Compatibility | Accommodates 22–26 AWG stranded and solid wires |
PCB Color Coding | Differentiation for CAT5e, CAT6, CAT6A & CAT7 |
Patch Panel Type | Unloaded (straight) and Loaded with individual Cat6 UTP keystones (24 ports) |
Country of Manufacture | Made in India |
General
- Ports Quantity24
