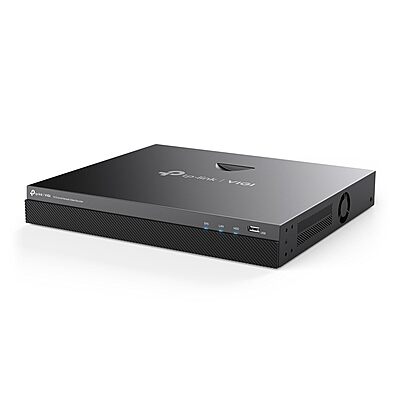

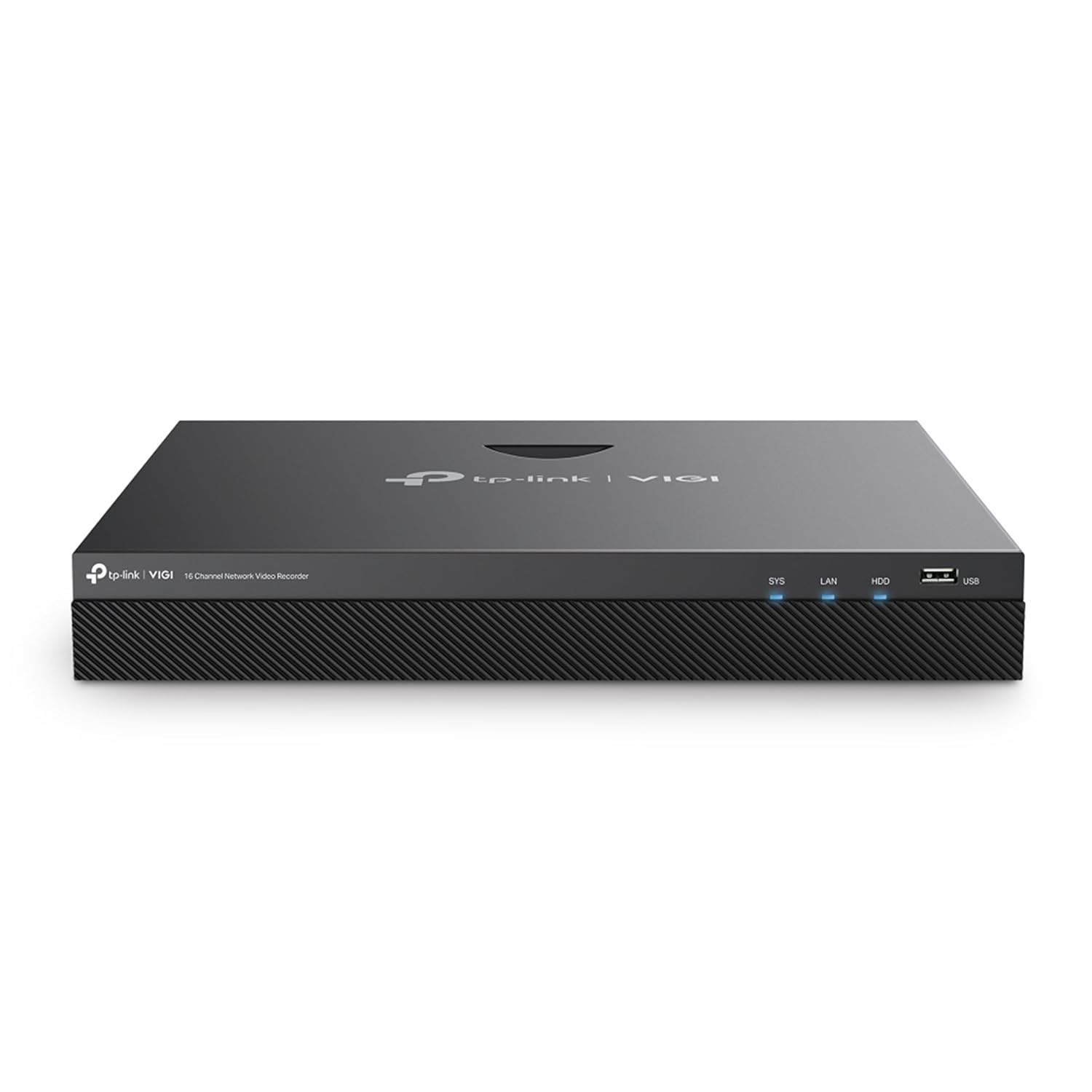

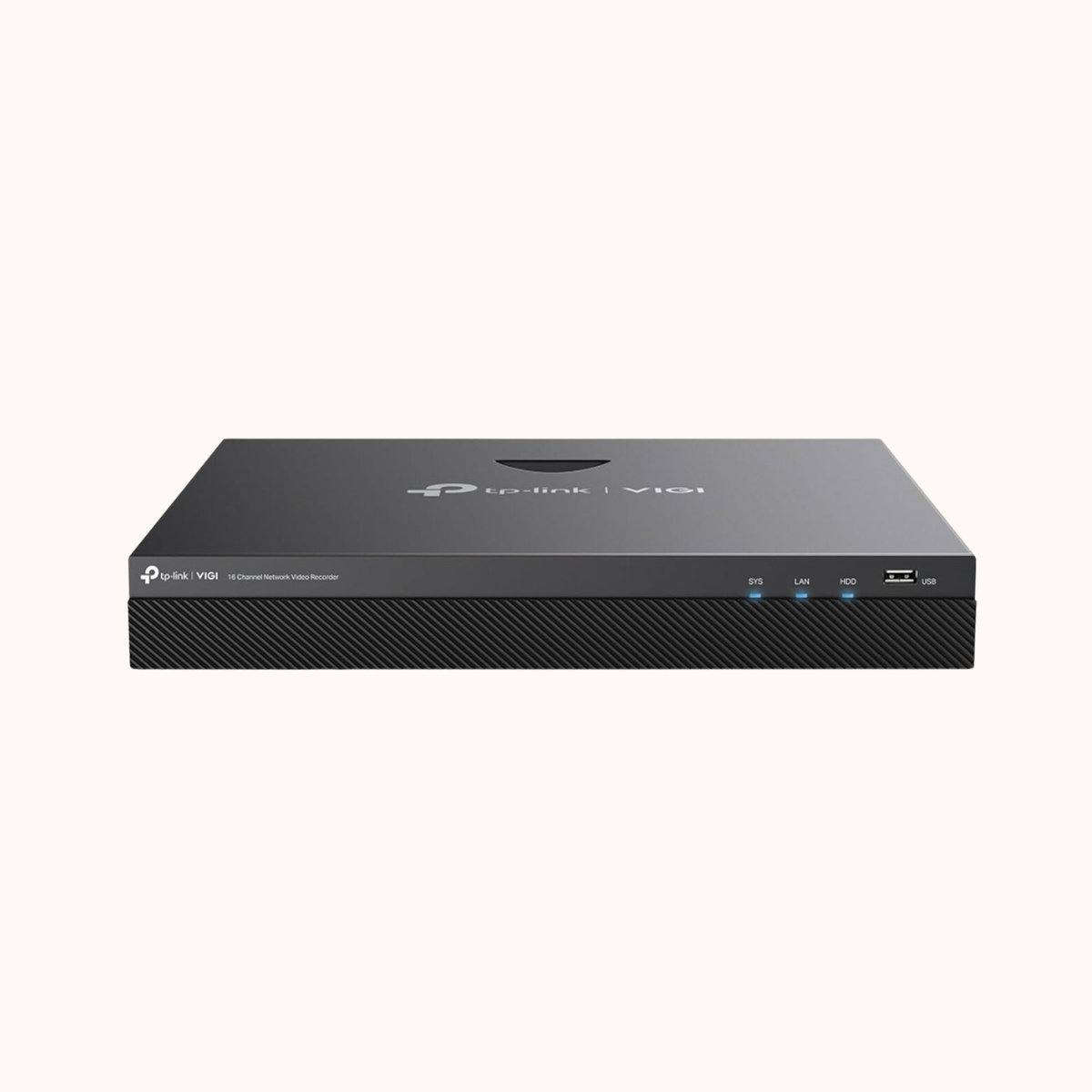

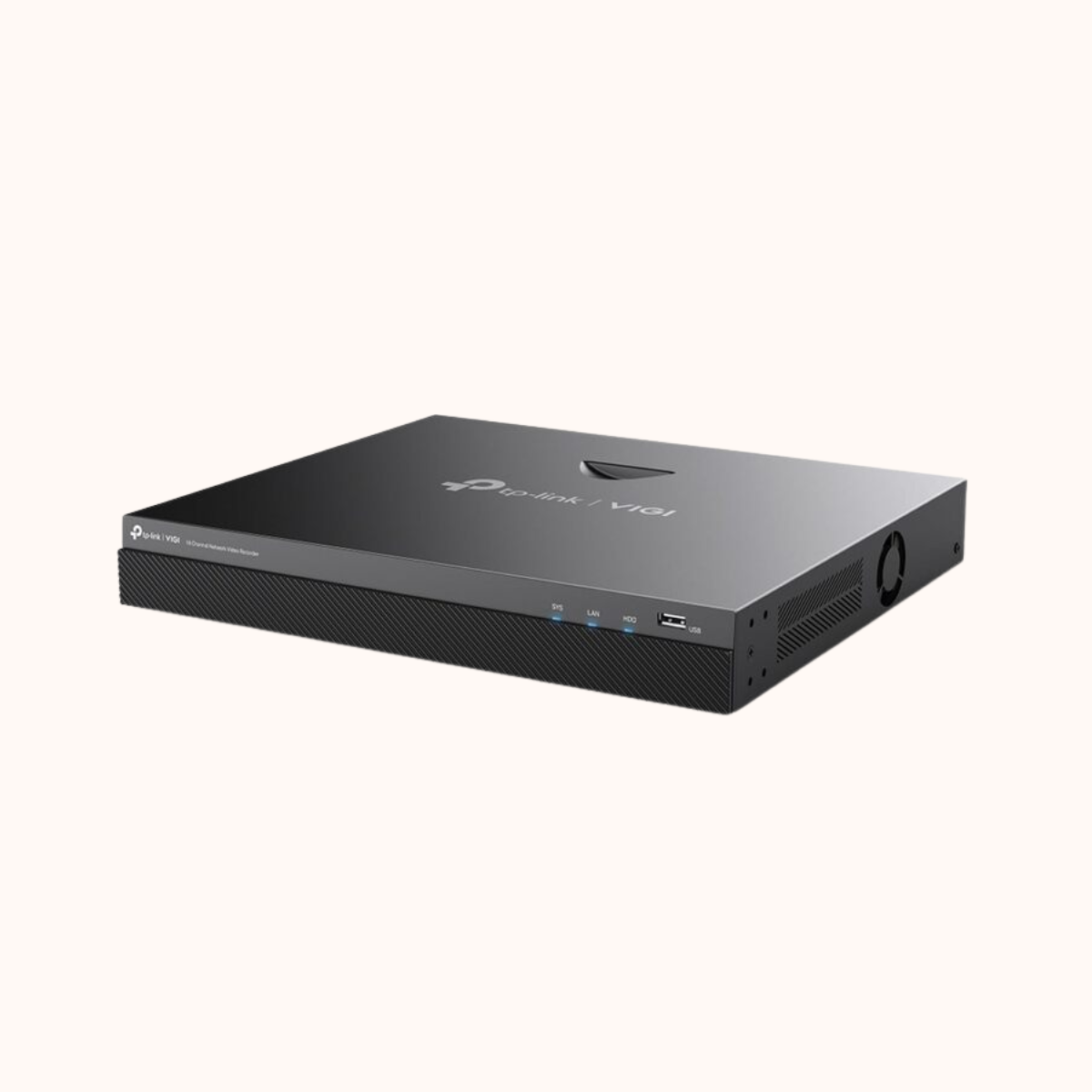

TP-Link VIGI 16 Channel Network Video Recorder - NVR2016H

Video and Audio

IP Video Input

16-Channel

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

60 Mbps

HDMI Output Resolution

1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

VGA Output Resolution

1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz

Video Output Mode

HDMI/VGA Simultaneous Output

Multi-View Display

1/4/6/8/9/16

Decoding

Audio Compression

G.711A/G.711U/G.726

Video Compression

H.265+/H.265/ H.264+/H.264

Record Resolution

8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback

16-Channel

Playback Capability

25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP; 30fps: 4-ch @ 3MP, 2-ch @ 5MP

Record Management

Record Mode

Manual Recording, Scheduling Recording, Motion Detection Recording

Playback Mode

Instant Playback, Regular Playback, Tag Playback, Event Playback

Backup Mode

Regular Backup, Video Clip Backup

Playback Function

Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

Network

Protocol

UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP

Mobile Phone Access

Android, iOS

Web Browser

Chrome (57+), Firefox (52+), Edge (91+)

Interoperability

ONVIF, CGI

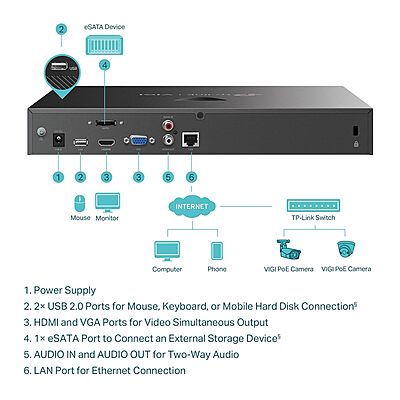

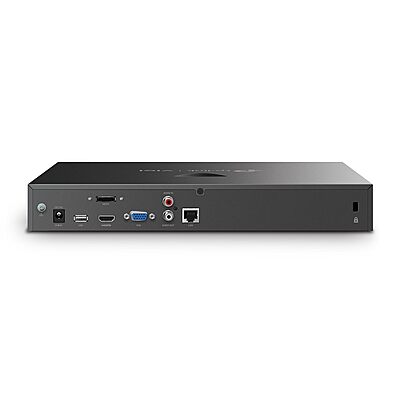

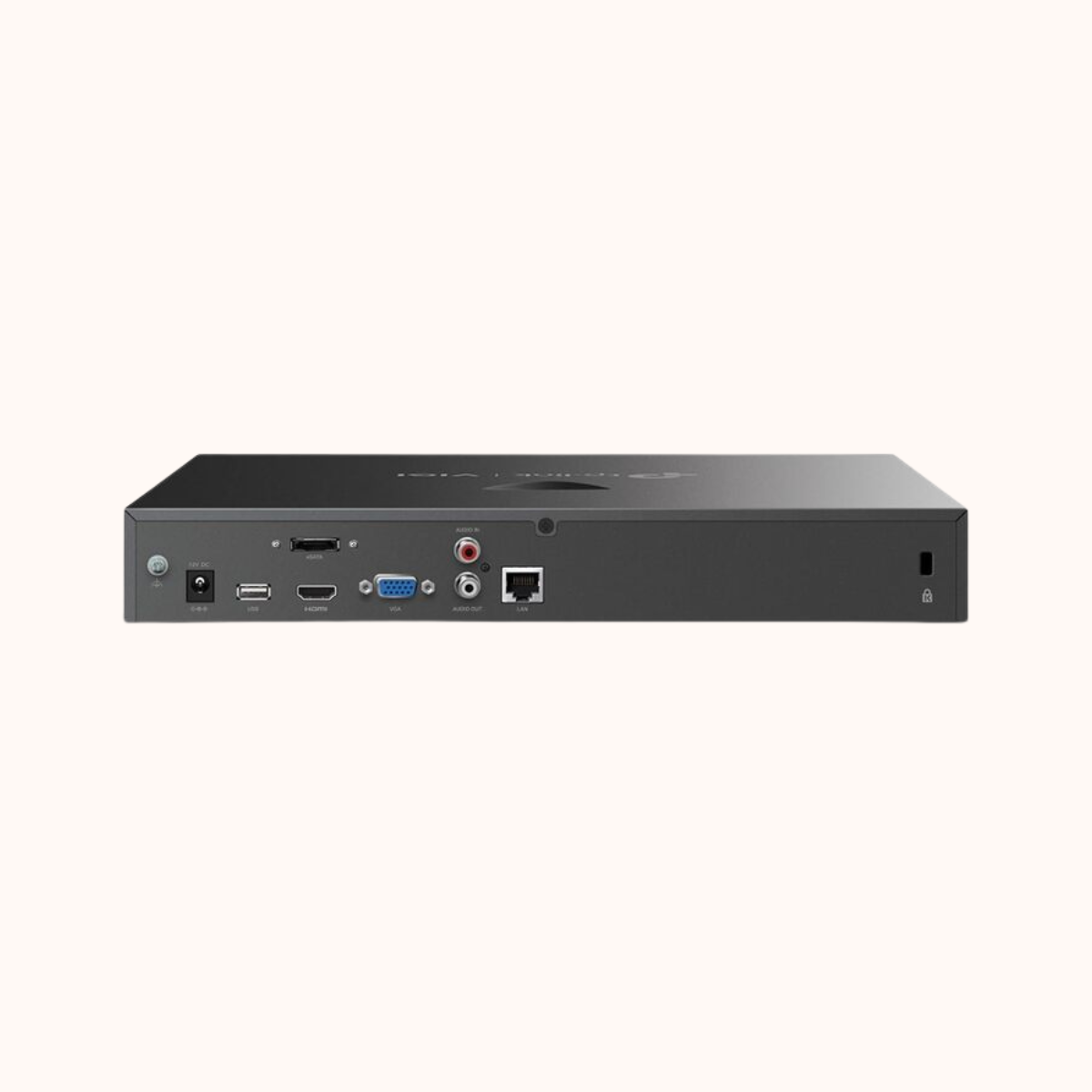

External Interface

Network Interface

1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface

1 Front USB 2.0 Port, 1 Rear USB 2.0 Port

Audio Interface

1, Audio In; 1, Audio Out

Alarm In/Out

N/A

Serial Interface

N/A

Power

Power

1× DC Jack

Reset Button

1

Power Supply

12V DC/3.3A

Max. Power Consumption

4.78 W (Without Disk), 24.16 W (With Disk)

Hard Disk

SATA

2 SATA Interfaces

Capacity

Up to 10 TB Capacity for Each HDD

Alarm

General Alarm

Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection

Anomaly Alarm

Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception

Alarm Linkage

Recording, White Light Alarm, Buzzer, Log, Audible Alarm

General

Storage Temperature

-40–70 °C

Storage Humidity

10%~90% RH Non-Condensing

Working Temperature

-10–55 °C

Working Humidity

10%~90% RH Non-Condensing

Dimensions (W x D x H)

330 × 285 × 45 mm

Net Weight

1.9 Kg

Gross Weight

3.2 Kg

Certifications

CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
