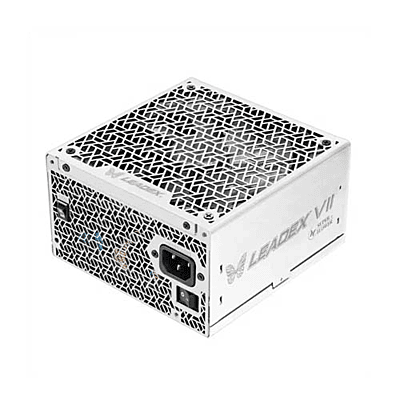

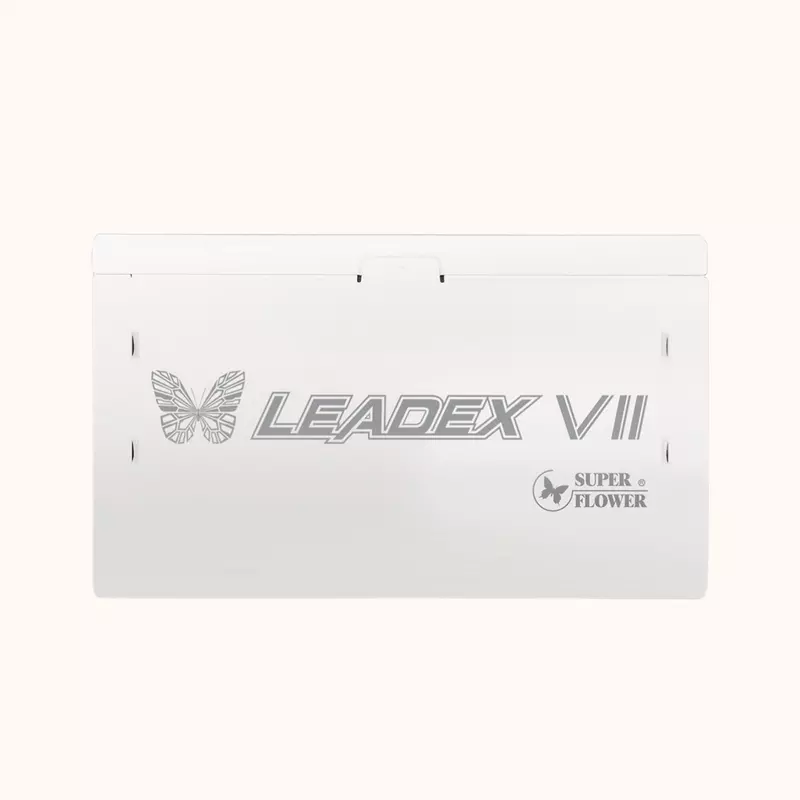

Super Flower Leadex VII GOLD-1300W (White) - SF-1300F14XG
Specification | Details |
|---|---|
Wattage | 1300 Watts |
Series | LEADEX VII XG |
Certification | 80 PLUS Gold Certified |
Modularity | Fully Modular |
PCIe (6+2) Connectors | 4 Connectors |
SATA Connectors | 3 Cables |
Peripheral (4-Pin Molex) | 1 Cable |
Feature | Details |
|---|
Cooling System | 140mm F.D.B fan with 9-blade design ensures high airflow, stable cooling, and low noise (dBA). |
Patented Connector Tech | Buckle-style 20+4 pin connector with international patents (Taiwan M563575; China 7566010). |
Stable Power Output | +12V / +5V / +3.3V rails deliver consistent voltage with improved transient response and ultra-low ripple. |
ECO Design | Auto & ECO fan control plus high efficiency across all power rails, including 5VSB. |

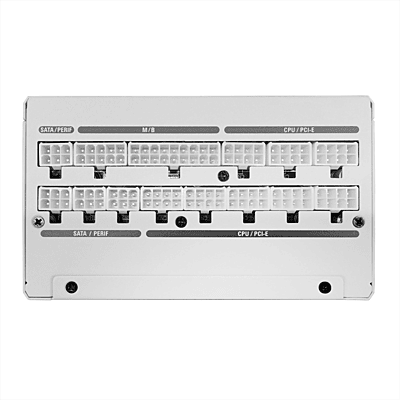

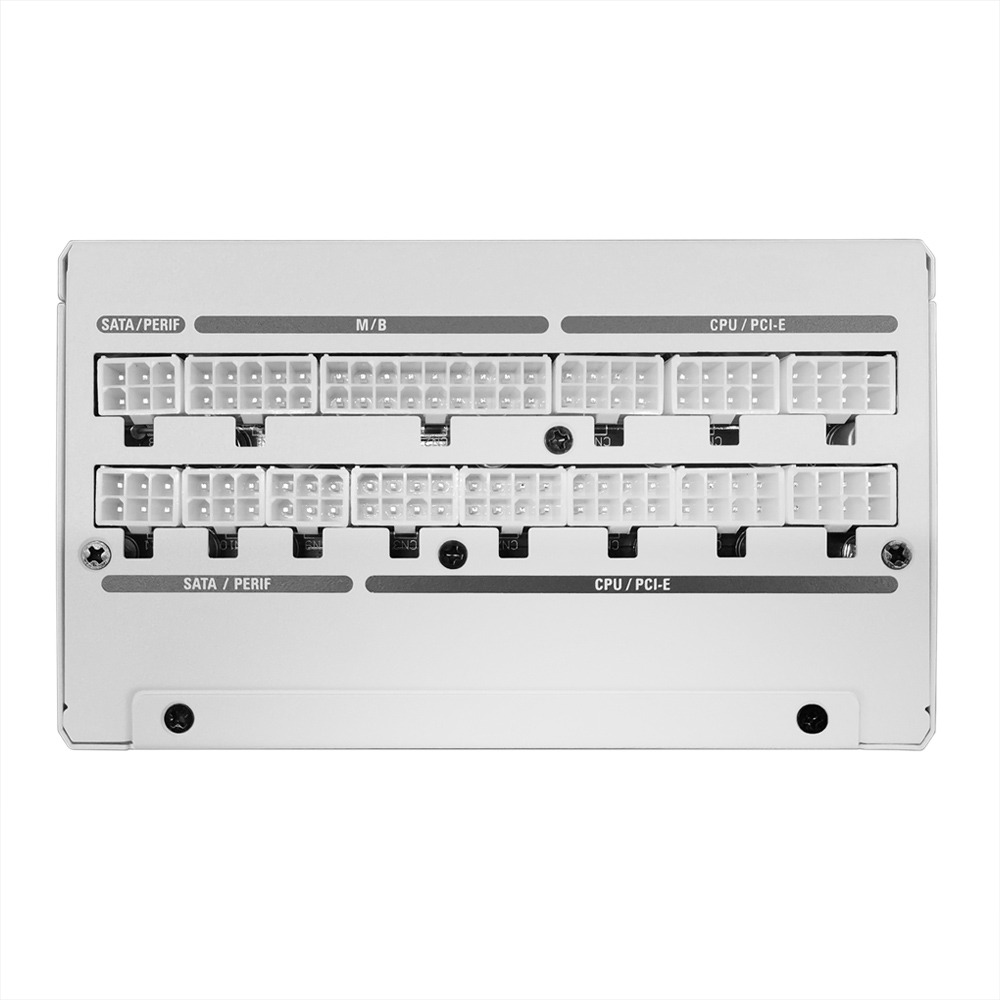

Fully Modular Cabling | Ultra-flexible, ribbon-style modular cables for clean and optimized cable management. |
Power Efficiency | 80 PLUS® Gold Certified — 87% @ 20%, 90% @ 50%, and 87% @ 100% load efficiency. |
High-Quality Components | Equipped with 100% Japanese 105°C capacitors on both main board and modular backpanel. |
Wide Voltage Support | Full-range 100V–240V auto-detect with Active PFC (Power Factor Correction). |
ATX Compliance | Fully compliant with ATX 12V v3.1 and EPS 12V v2.92 standards. |
Eco & Safety Certifications | Meets Energy Star, EuP, RoHS, and WEEE environmental regulations. |
Comprehensive Protection | Includes OVP, OCP, OPP, SCP, UVP, OTP, NLO, and Surge/Inrush protection. |
General
- Wattage1300 Watt
- ModularFully Modular
- Connector TypeATX
- PCIe Connector (6+2)4
- SATA Connector3
