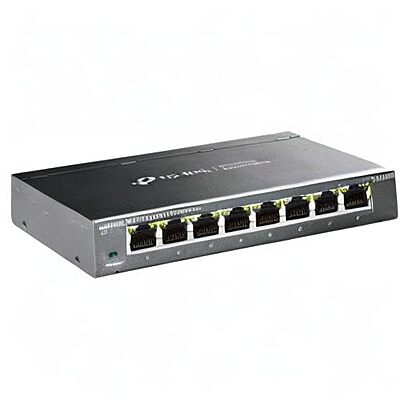

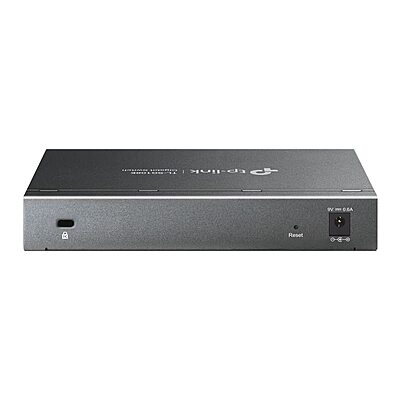

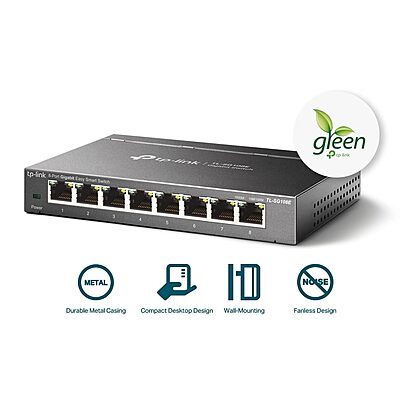

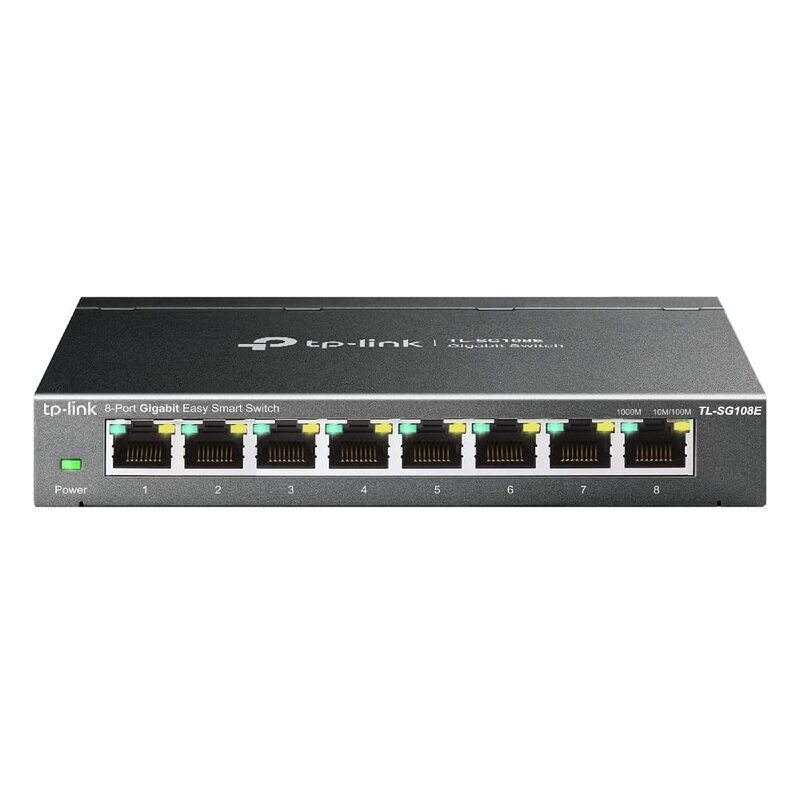

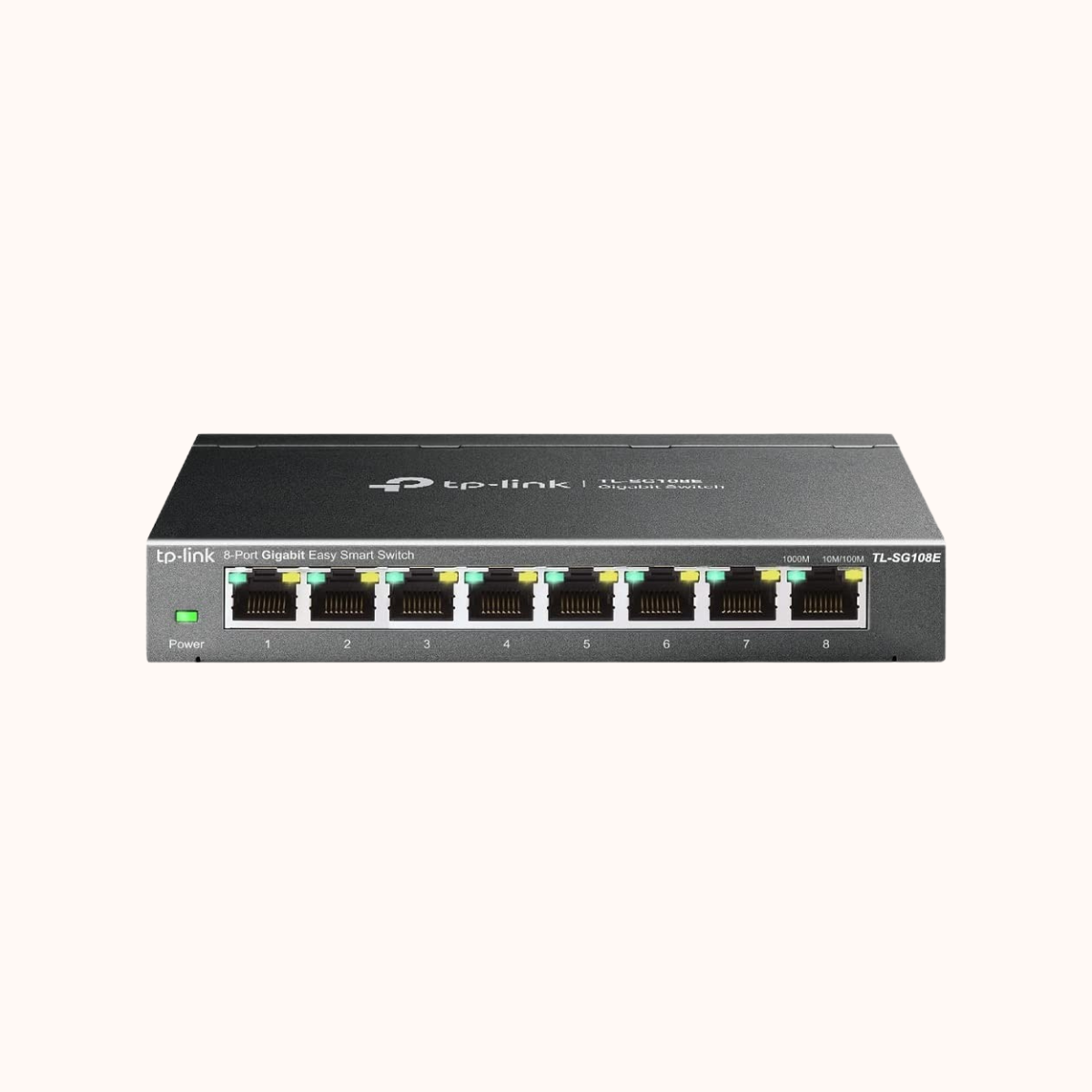

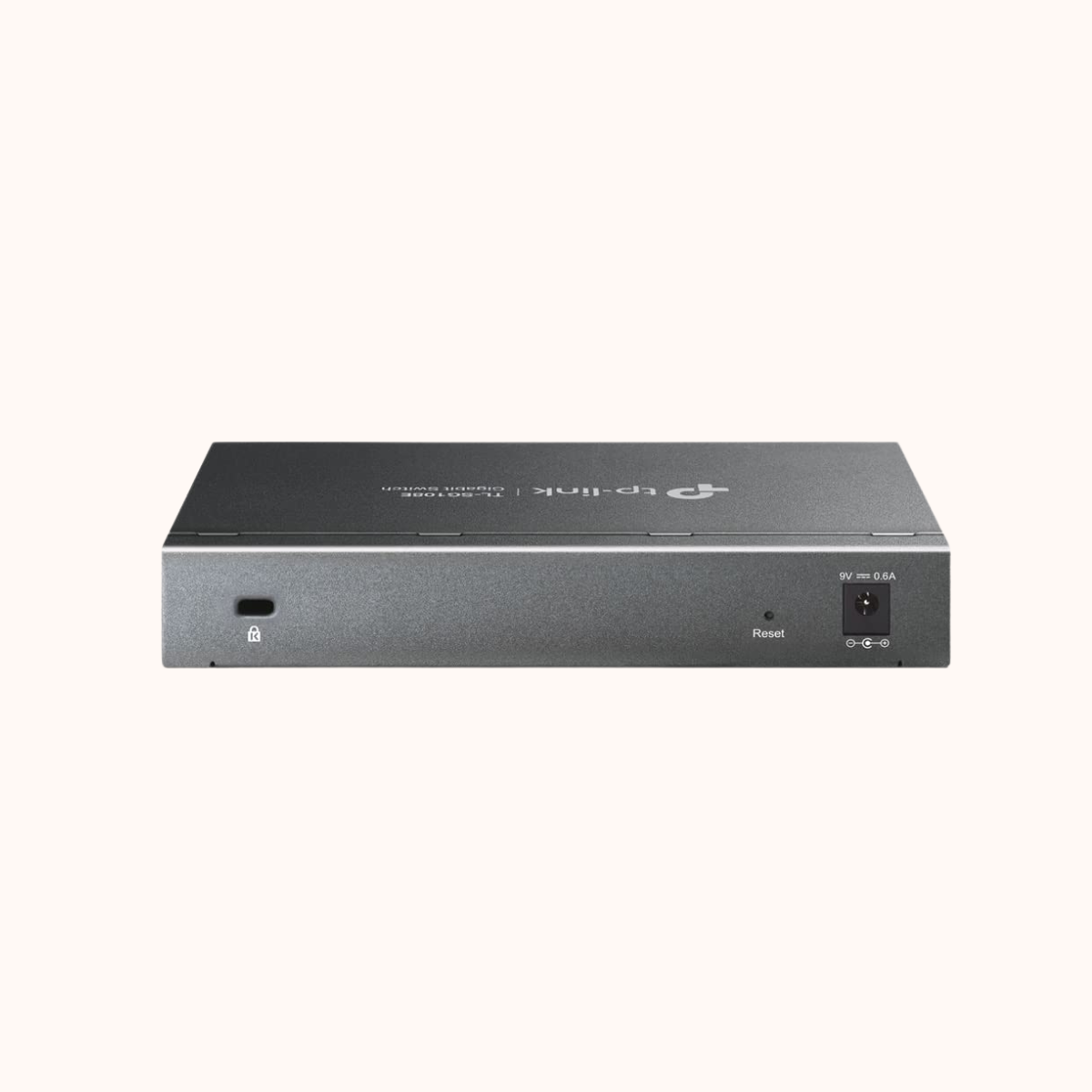

TP-Link 8-Port Gigabit Easy Smart Switch-TL-SG108E V6

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface

8 10/100/1000 Mbps RJ45 Ports

Auto Negotiation/MDI/MDIX

Yes

Network Media

10BASE-T: UTP category 3, 4, 5 cable (max 100m)

100BASE-TX: UTP category 5, 5e cable (max 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (max 100m)

Fan Quantity

Fanless

Power Supply

External Power Adapter (Output: 5 VDC/ 0.6 A)

Dimensions (W x D x H)

6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)

Max Power Consumption

3.68 W (220 V/50 Hz)

Max Heat Dissipation

12.55 BTU/h

Switching Capacity

16 Gbps

Packet Forwarding Rate

11.9 Mpps

MAC Address Table

4 K

Packet Buffer Memory

1.5 Mb

Jumbo Frame

16 KB

Quality of Service

Supports Port-based/802.1p/DSCP priority, 4 priority queues, Rate Limit, Storm Control

L2 Features

IGMP Snooping V1/V2/V3, Static Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention

VLAN

Supports up to 32 VLANs (out of 4K VLAN IDs)

Transmission Method

Store-And-Forward

Certification

FCC, CE, RoHS

Package Content

TL-SG108E, Power Adapter, Installation Guide, Rubber Feet

System Requirements

Microsoft® Windows® for running Utility

Operating Temperature

0℃ ~ 40℃ (32℉ ~ 104℉)

Storage Temperature

-40℃ ~ 70℃ (-40℉ ~ 158℉)

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5% ~ 90% non-condensing
