TP-Link 5-Port Gigabit Easy Smart Switch-TL-SG105E

Standards & Protocols

IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p

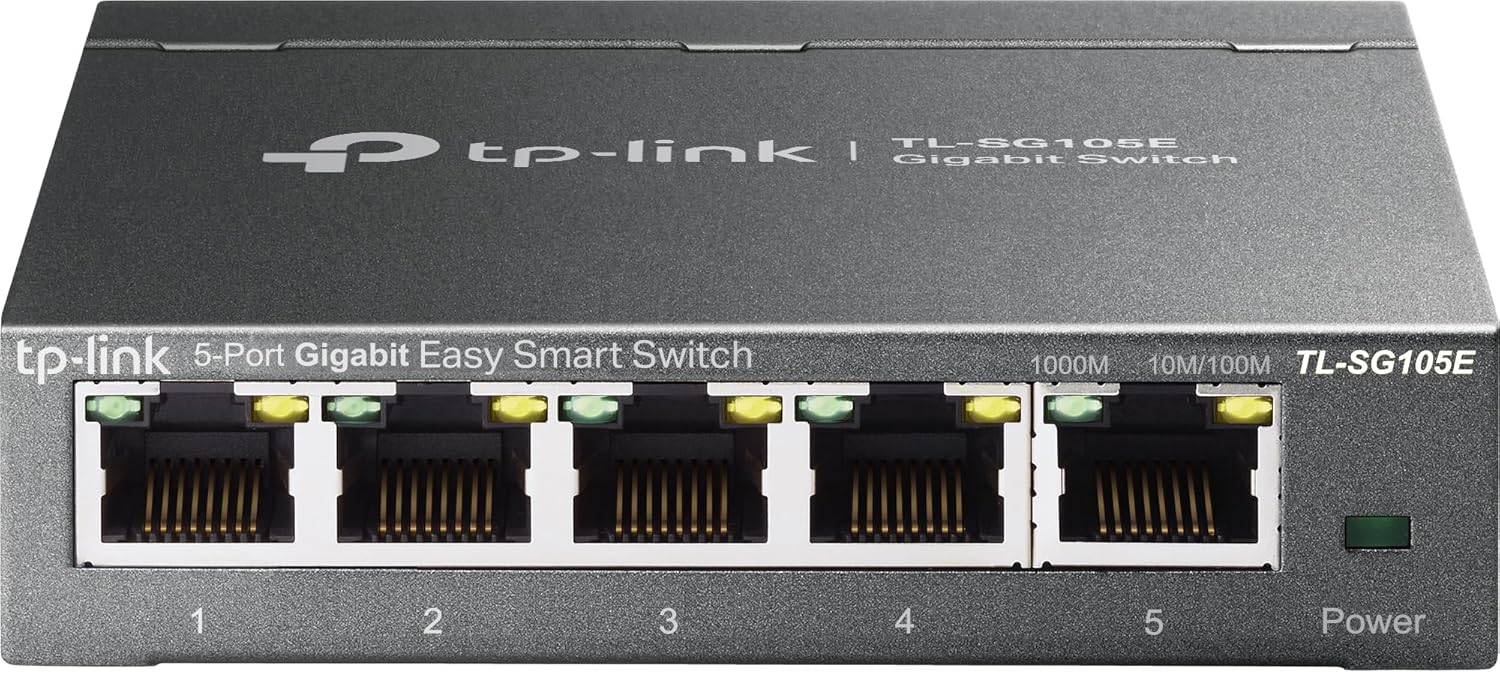

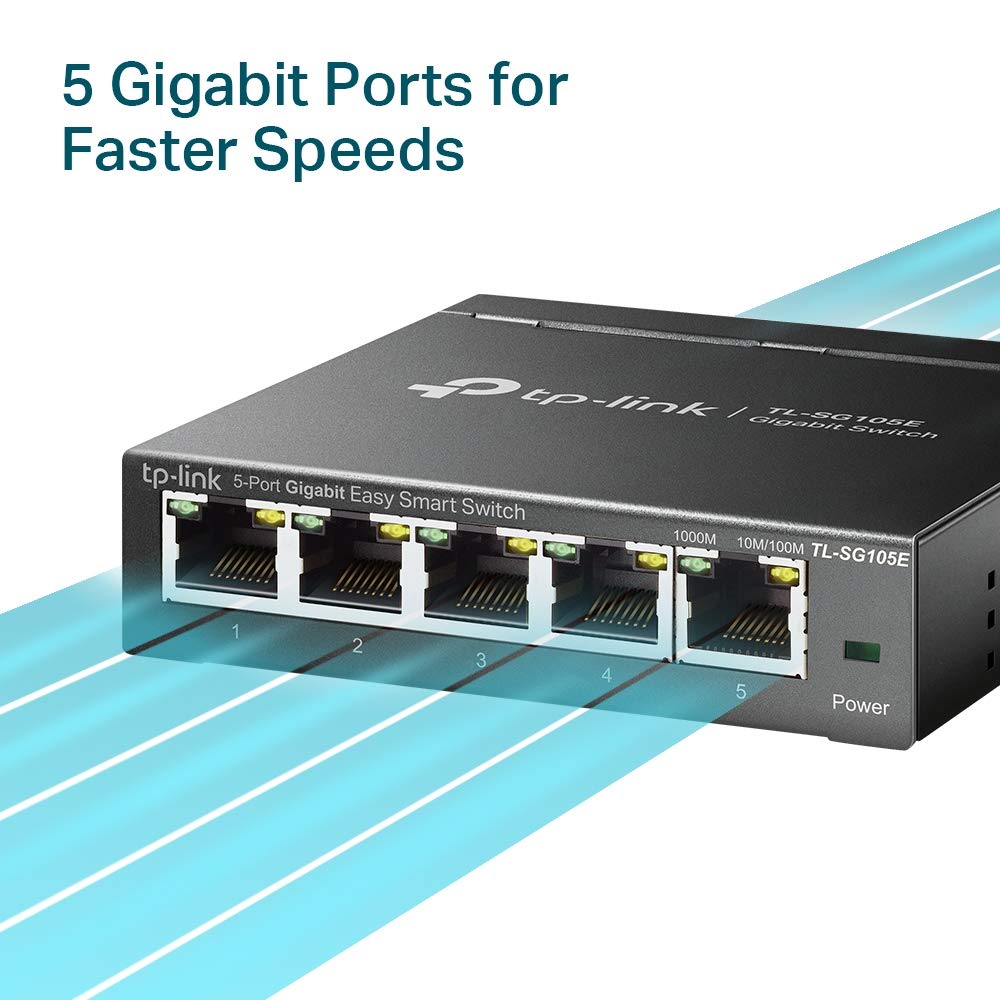

Interface

5 × 10/100/1000 Mbps RJ45 Ports
Auto Negotiation / Auto MDI/MDIX

Network Media

- 10BASE-T: UTP Cat 3/4/5 (max 100m)
- 100BASE-TX: UTP Cat 5/5e (max 100m)
- 1000BASE-T: UTP Cat 5/5e/6+ (max 100m)
- All: EIA/TIA-568 100Ω STP

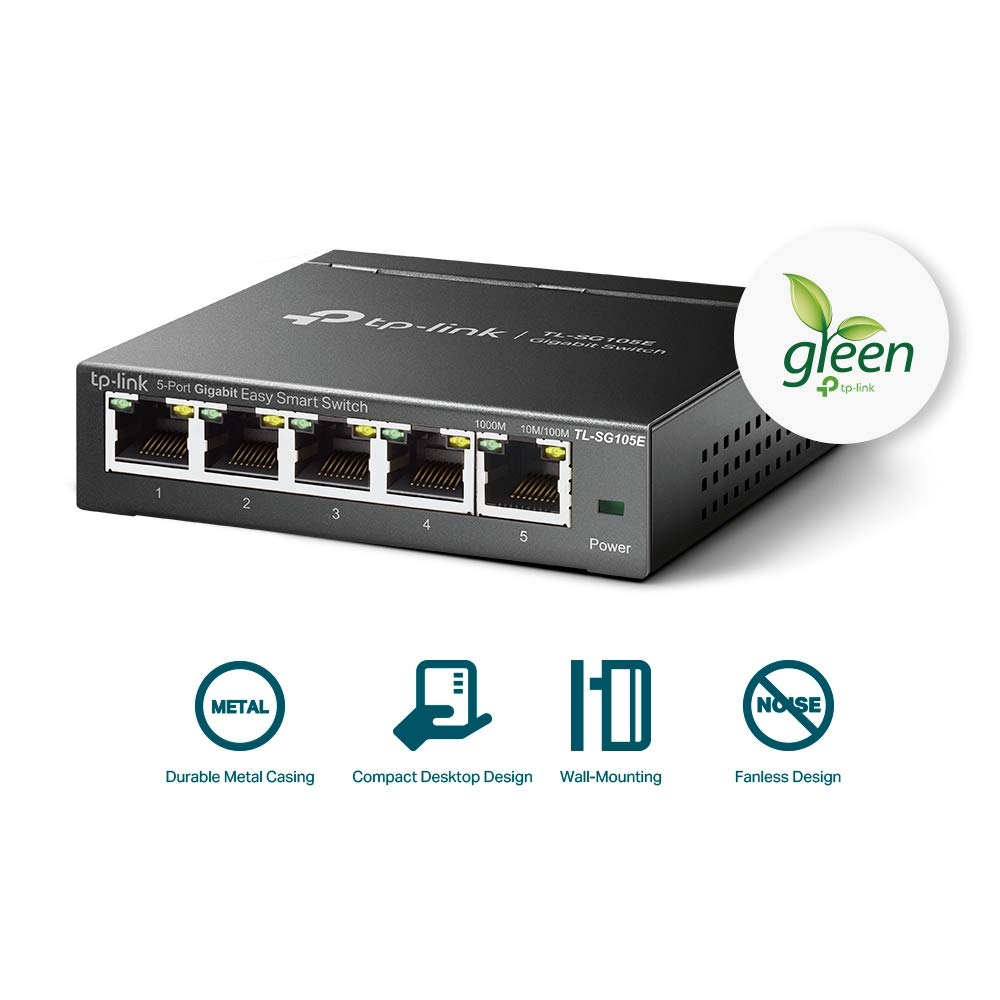

Fan Quantity

Fanless

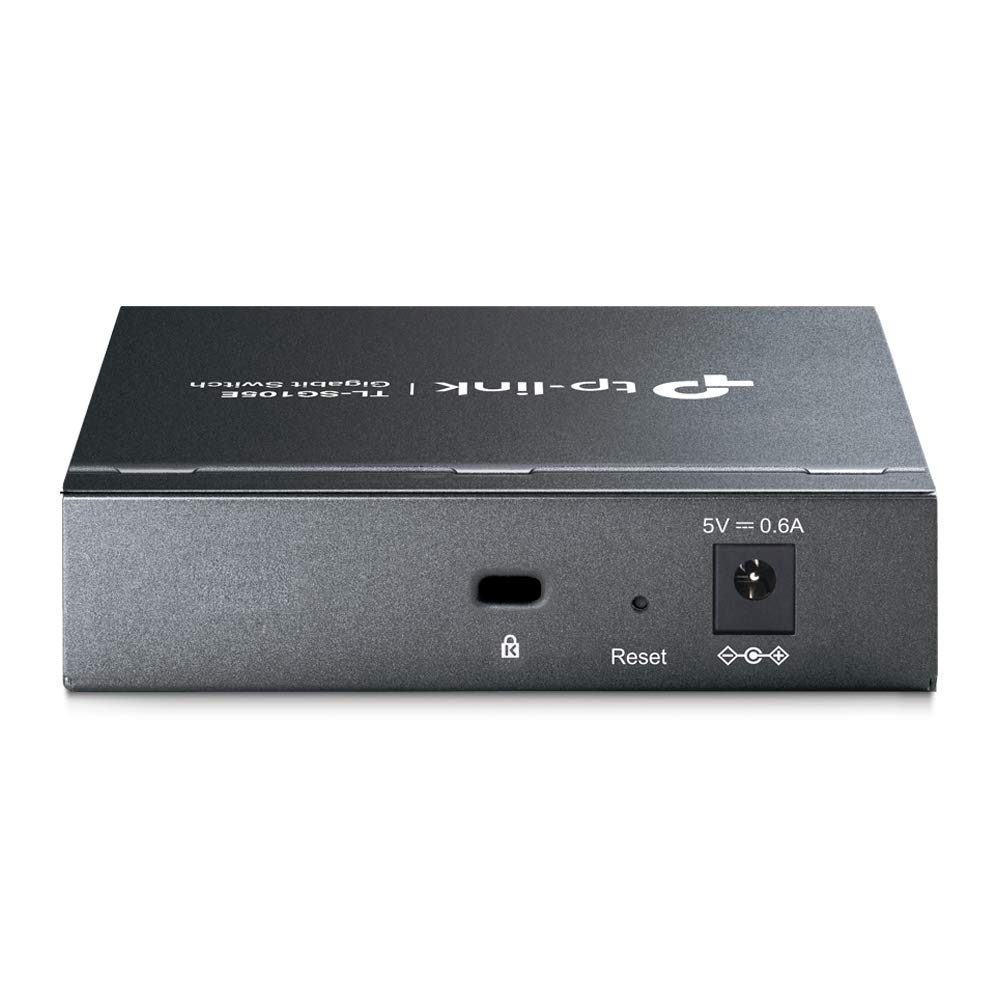

Power Supply

External Adapter (5 VDC / 0.6 A)

Dimensions (W × D × H)

3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

Max Power Consumption

2.82 W (at 220 V / 50 Hz)

Max Heat Dissipation

9.62 BTU/h

Switching Capacity

10 Gbps

Packet Forwarding Rate

7.4 Mpps

MAC Address Table

2K entries

Packet Buffer Memory

1 Mb

Jumbo Frame

16 KB

Quality of Service

- Port-based / 802.1p / DSCP priority
- 4 Priority Queues
- Rate Limit
- Storm Control

L2 Features

- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention

VLAN

- Supports up to 32 VLANs (from 4K VLAN IDs)
- MTU / Port / Tag VLAN

Transmission Method

Store-and-Forward

Certification

FCC, CE, RoHS

Package Contents

TL-SG105E, Power Adapter, Installation Guide, Rubber Feet

System Requirements

Microsoft® Windows® (for Utility)

Operating Temp.

0°C to 40°C (32°F to 104°F)

Storage Temp.

-40°C to 70°C (-40°F to 158°F)

Operating Humidity

10% to 90% (non-condensing)

Storage Humidity

5% to 90% (non-condensing)
