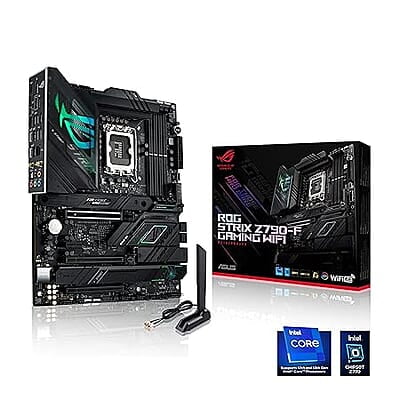

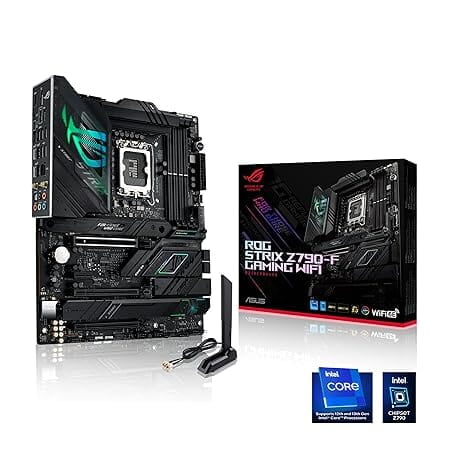

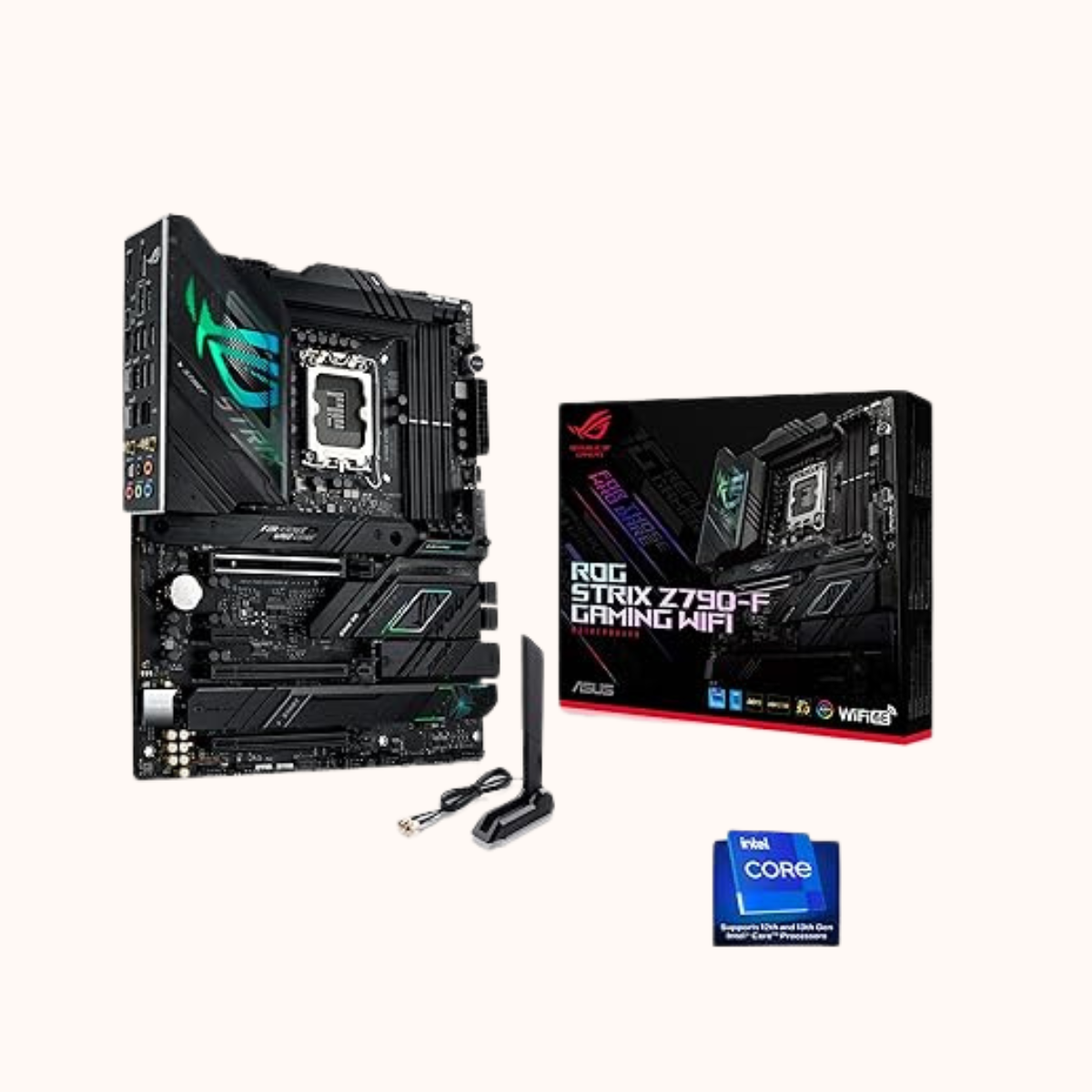

ATX Motherboard with 16 + 1 Power Stages, DDR5, 4xM.2 Slots, WiFi 6E, USB 3.2 Gen 2x2| Z790-F Gaming

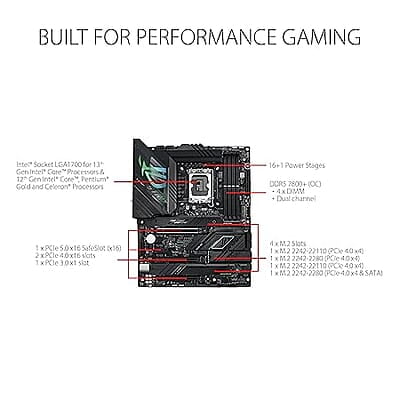

- Powerful Design: 16+1 power stages for superior performance and stability
- DDR5 Support: Compatible with next-generation high-speed memory
- 4x M.2 Slots: Expandable storage with ultra-fast NVMe SSD support
- WiFi 6E & USB 3.2 Gen 2x2: Advanced connectivity for faster networking and data transfer
Feature | Description |
---|---|
Model | Z790-F Gaming |
Form Factor | ATX |
Chipset | Intel Z790 |
CPU Support | Supports 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors (LGA 1700 socket) |
Memory Support | - 4 x DDR5 DIMM slots - Supports up to 128GB of DDR5 memory - Memory speeds up to DDR5-7200+ (OC) |
Power Delivery | 16 + 1 Power Stages with high-quality components for stable power delivery and overclocking |
Storage | - 4 x M.2 slots (PCIe 4.0/3.0) for NVMe SSDs - 6 x SATA 6Gbps ports |
Expansion Slots | - 1 x PCIe 5.0 x16 slot - 1 x PCIe 4.0 x16 slot (x4 mode) - 1 x PCIe 3.0 x1 slot |
Connectivity | WiFi 6E (802.11ax) and Bluetooth 5.3 |
USB Ports | - USB 3.2 Gen 2x2 Type-C - USB 3.2 Gen 2 and Gen 1 - Multiple USB 2.0 ports |
Networking | - Intel 2.5 Gb Ethernet - WiFi 6E for ultra-fast wireless connectivity |

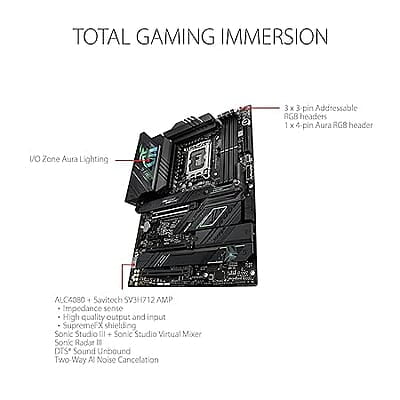

Audio | SupremeFX 7.1 Surround Sound with high-definition audio codec for immersive audio experience |
Cooling and Thermal Design | - VRM heatsinks - M.2 heatsinks for improved thermal performance - Fan Xpert 4 for advanced cooling management |
BIOS Features | - UEFI BIOS with advanced tuning options - AI Overclocking and AI Cooling |
RGB Lighting | Supports Aura Sync RGB lighting with customizable effects and synchronization with other components |
Connectivity Features | - Thunderbolt 4 header (optional expansion card) - HDMI and DisplayPort outputs |
PCIe Support | PCIe 5.0 x16 for GPUs and storage |
Power Connector | - 24-pin ATX main power connector - 8-pin + 4-pin CPU power connectors |
Back Panel I/O | - 1 x USB 3.2 Gen 2x2 Type-C - 4 x USB 3.2 Gen 2 Type-A - 2 x USB 2.0 - 1 x HDMI - 1 x DisplayPort - WiFi antenna connectors |
Operating System Support | Windows 11 and Windows 10 (64-bit) |
Warranty | 3-Year Limited Warranty |
Applications | Ideal for gaming enthusiasts, content creators, and power users requiring high-performance computing and expandability |
The Z790-F Gaming motherboard combines next-generation technology like DDR5 memory, PCIe 5.0, and WiFi 6E for superior performance and future-proofing. With robust power stages, multiple M.2 slots, and advanced cooling options, it is engineered for high-end gaming and overclocking. The addition of USB 3.2 Gen 2x2 and Aura Sync RGB lighting enhances customization and connectivity.
