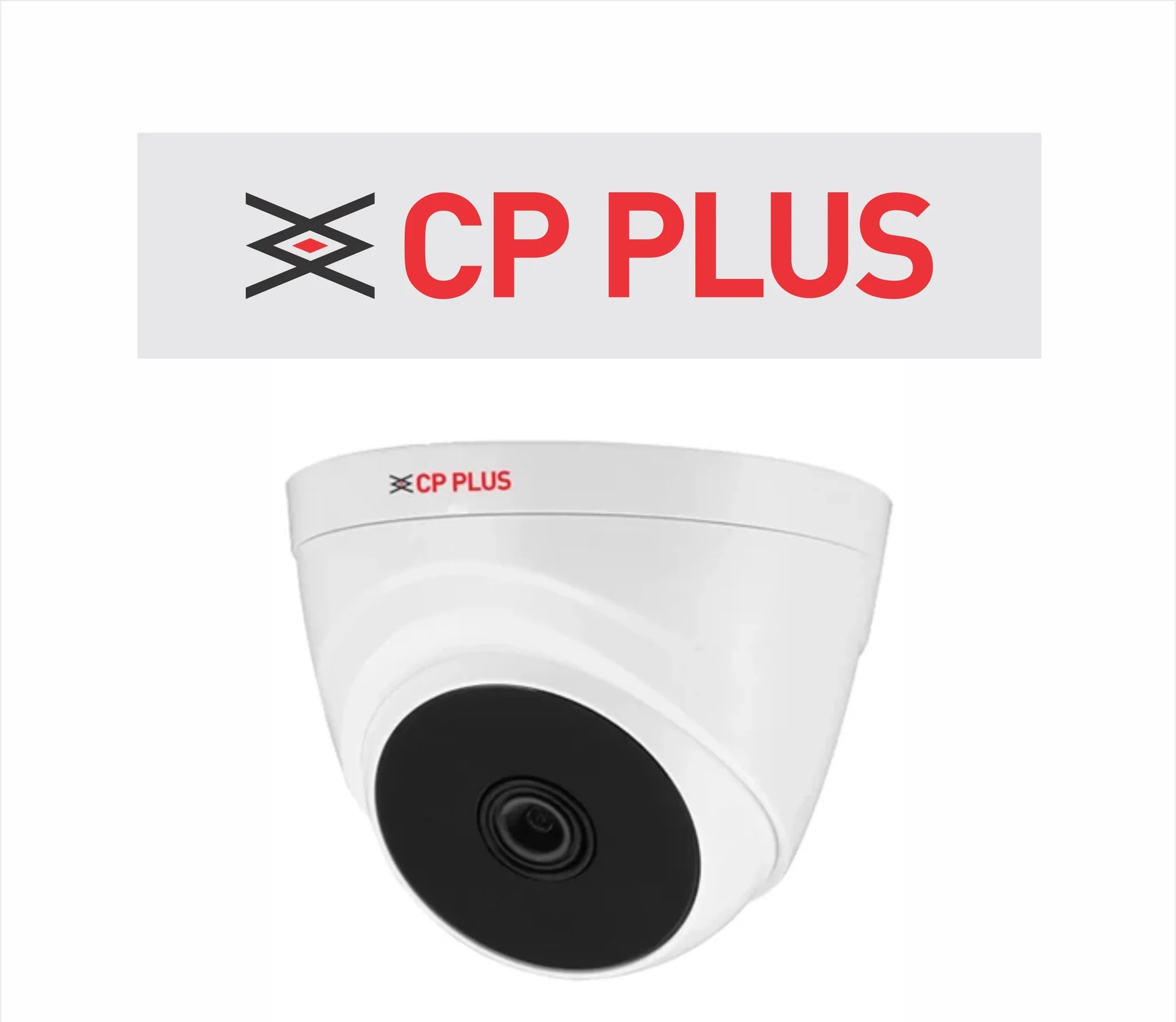

CP PLUS 5MP Audio Dome Camera (CP-USC-DC51PL2C)
SKU : TGSHPDJCQN587982
Attribute | Details |
|---|---|
Image Sensor | 1/2.7” 5MP CMOS (0.9407 cm) |
Max. Resolution/Frame Rate | Up to 25fps @ 5MP (16:9 video output) |
Image Enhancements | DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC |
Lens | 3.6mm fixed lens (2.8mm optional) |
IR Range | 20 Metres |
Menu Control | OSD Menu, control over coaxial cable |
Noise Reduction | 2D-DNR |
Video Formats Supported | CVI / CVBS / AHD / TVI (Switchable) |
Audio Support | Built-in Microphone |
Attribute | Details |
|---|
IR Range | 20 Metres |
Built-in Mic | Yes |
Menu Control | OSD Menu, control over coaxial cable |
Noise Reduction | 2D-DNR |
Video Formats Supported | CVI / CVBS / AHD / TVI (Switchable) |
Camera Compatibility | Only works with 5MP DVR supporting 5MP cameras (e.g., 0801F1-IC) |
Image Sensor | 1/7" 5MP PS CMOS (0.9407 cm) |
Max. Resolution/Frame Rate | 25fps @ 5MP (16:9 video output) |
Gain Control | AGC |
Menu Features | Multi-language, Mirror Off/On, Privacy Masking Off/On, 8 Area, Rectangle |
Audio Support | Built-in Microphone |
Smart IR | Auto/Manual |
Casing Material | Plastic |
Operating Temperature | -40°C ~ 55°C (-40°F ~ 131°F) / Less Than 95% RH |
Power Source | 12V DC ±30% |
Power Consumption | Max 7W |
Dimensions | 84mm x 68.8mm x 36mm |
Weight | 0.09 kg |
Image Enhancements | DWDR, Day/Night ICR, 2D-DNR, AWB, AGC, BLC, HLC |
Lens | 6mm fixed lens (8mm optional) |
General
- TypesAnalog
- Placement SupportedIndoor/Outdoor
- Megapixel (Approx.)5 MP
- Mounting TypeCeiling/Wall
- Connectivity TechnologyWireless
- Video Motion DetectionYes
- Wi-FiYes
- Power Over EthernetYes
- Ethernet LANYes
