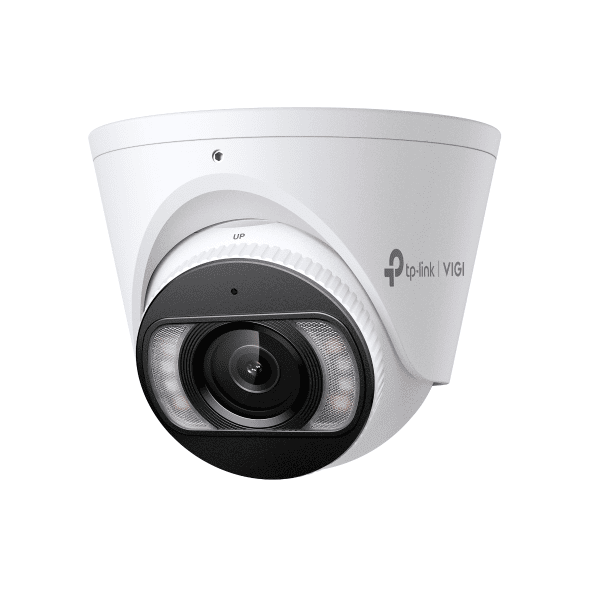

TP-Link VIGI 5MP Full Color Turret Network Camera - InSight S445
Camera Resolution | 5MP |
Camera Style | Dome Camera |
Color | White |
Power Source | DC Power Port |
Brand | TP Link |
Product Dimensions (L x W x H) | 111 x 111 x 83.7 mm |
Net Weight | 0.48 Kg |
Material | Metal |
Model No. | S455 VIGI |
Series | InSight |
Camera Specifications
Feature | Specification |
|---|---|
Image Sensor | 1/2.7” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10,000 s |
Slow Shutter | Yes |
Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Unified / Scheduled / Auto |
Lens Specifications
Type | Fixed Focal Lens |
|---|---|
Focal Length | 2.8 mm / 4 mm |
Aperture | F1.6 |
Lens Mount | M12*P 0.5 |
Field of View (FOV)
Focal Length | Horizontal FOV | Vertical FOV | Diagonal FOV |
|---|---|---|---|
2.8 mm | 111.4° | 58.8° | 134° |
4 mm | 88° | 46° | 105.4° |
DORI Distance
Focal Length | Detect | Observe | Recognize | Identify |
|---|---|---|---|---|
2.8 mm | 64 m (210 ft) | 27 m (89 ft) | 13 m (43 ft) | 6 m (20 ft) |
4 mm | 80 m (262 ft) | 33 m (108 ft) | 16 m (52 ft) | 8 m (26 ft) |
Angle Adjustment (Manual)
Pan | 0° to 360° |
|---|---|
Tilt | 0° to 85° |
Rotation | 0° to 360° |
Illuminator
IR LED | Quantity: 4<br>Range: 30 m<br>Wavelength: 850 nm |
|---|---|
White LED | Quantity: 4 |
Illuminator Control | Auto / Scheduled / Always On / Always Off |
Video
| Max. Resolution | 2880 × 1620 (≈5 MP)
General
- Placement SupportedIndoor
- Case TypeTurret
- Megapixel (Approx.)5 MP
- Mounting TypeCeiling/Wall
- AudioBuilt in Microphone & Speaker
- Connectivity TechnologyWired
- Video Motion DetectionYes
- Wi-FiNo
- Power Over EthernetYes
