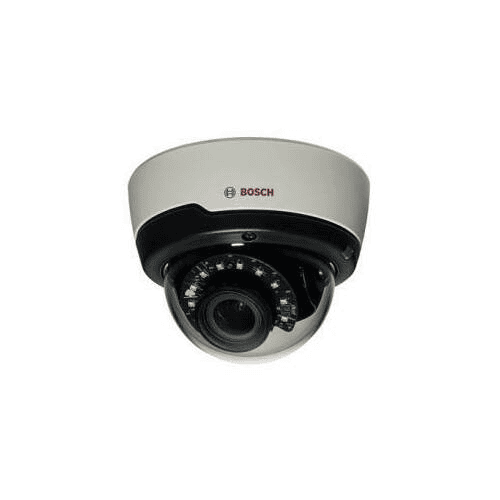

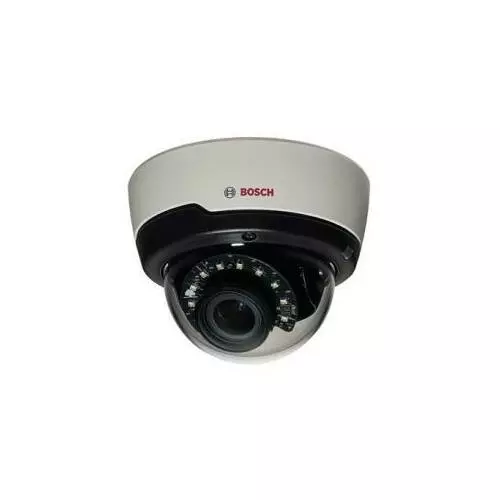

Bosch Fixed dome 2MP Camera -NDI-5502-AL-IN
Attribute | Details |
|---|
Brand | BOSCH |
Model Name/Number | NDI‑5502‑AL‑IN (FlexiDome Starlight 5000i, IR Indoor) |
Camera Resolution | 2 MP Full HD |
Lens | Motorized varifocal 3–9 mm (approx. 1–3× zoom) |
IR Range | Built-in IR illuminator; up to 45 m (148 ft) |
Min Illumination | Color: 0.0225 lux, Mono: 0.0051 lux, 0 Lux with IR |
Dynamic Range | HDR 146 dB WDR (IEC 62676‑5); typical 107 dB |
Video Compression | H.265, H.264, M-JPEG; multi-streaming & ROI support |
Power Options | 12 V DC, 24 VAC, PoE (802.3af Type 1) — Class 3; power draw ~9.2 W via PoE |
Operating Temperature | –20 to +50 °C (–4 to +122 °F); RH up to 93% non-condensing |
Dimensions & Weight | Ø135 × 102 mm; approx. 450–846 g (varies by source) |
Mounting & Installation | Easy install with auto zoom/focus wizard; supports surface, wall, ceiling mounts |
Analytics & Compliance | Built-in Essential Video Analytics; tamper/motion detect; ONVIF Profiles S/G, EMC & regulatory certs |
General
- Placement SupportedIndoor
- Megapixel (Approx.)2 MP
- Mounting TypeCeiling/Wall/Desk
