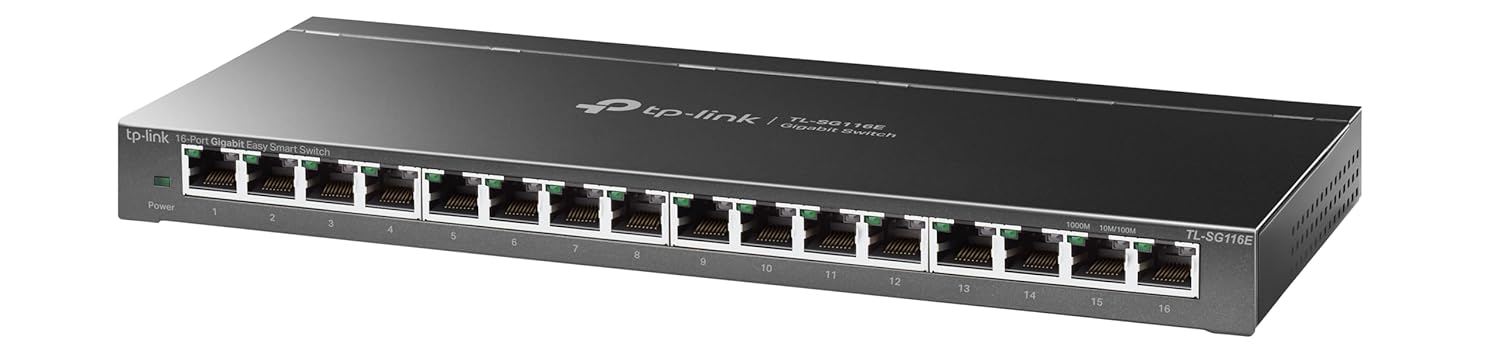

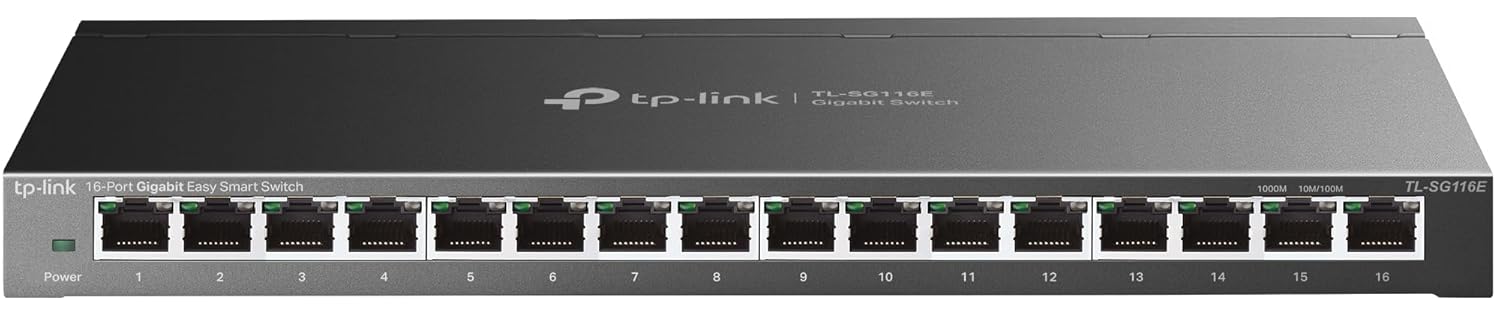

TP-Link 16-Port Gigabit Easy Smart Switch-TL-SG116E

Brand

TP-Link

Model Name

TL-SG116E

Ports

16 × 10/100/1000 Mbps RJ45 Ports

Port Type

Gigabit Ethernet RJ45

Switching Capacity

32 Gbps

Forwarding Rate

23.81 Mpps

MAC Address Table

8K

Packet Buffer Memory

4.1 Mb

Jumbo Frame

9 KB

Power Supply

External Adapter (12VDC / 1.0A)

Max Power Consumption

9.19 W (220V/50Hz)

Fan

Fanless (silent operation)

Mounting Type

Desktop (No Rack Mount Support Mentioned)

Management Features

Web-based GUI, Easy Smart Configuration Utility

QoS

Port-Based, 802.1p, DSCP Priority, 4 Queues, Rate Limit, Storm Control

VLAN Support

Supports 32 VLANs (out of 4K IDs), MTU, Port, Tag VLAN

L2 Features

IGMP Snooping, Link Aggregation, Port Mirroring, Loop Prevention, Diagnostics

Standards & Protocols

IEEE 802.3i/u/ab/x/q/p

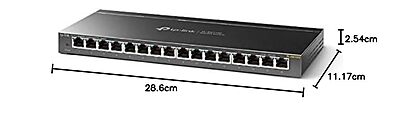

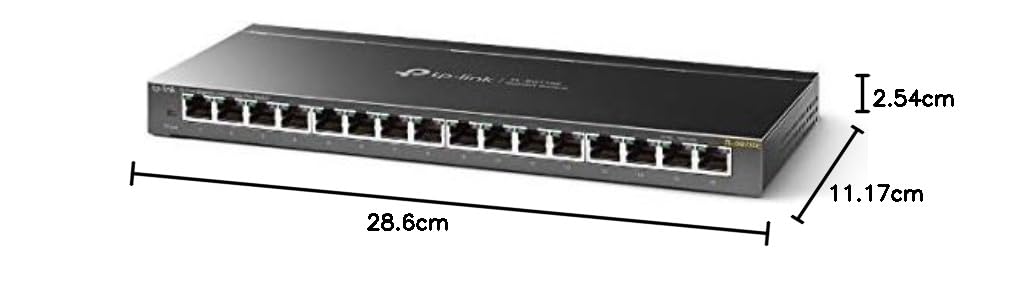

Dimensions

28.6 × 11.17 × 2.54 cm

Weight

Not specified

Operating Temperature

0°C40°C (32°F104°F)

Storage Temperature

-40°C70°C (-40°F158°F)

Humidity (Operating/Storage)

10%~90% / 5%~90% RH non-condensing

Certifications

FCC, CE, RoHS

What's in the Box

Switch, Power Cord, Installation Guide, Rubber Feet

Warranty

Not specified (typically 3 years for TP-Link unmanaged switches)
