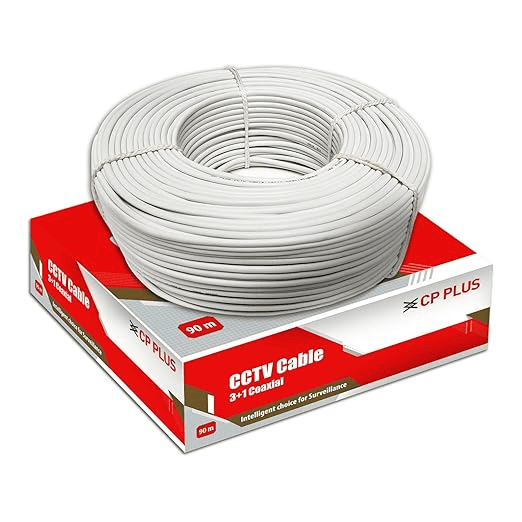

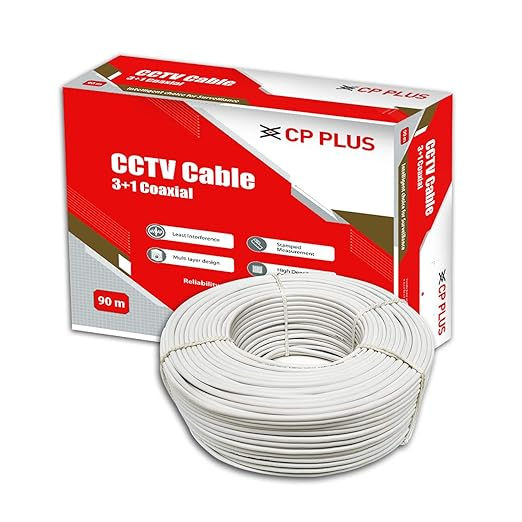

CP PLUS 3+1 Coaxial Pure Copper CCTV Camera Cable (90 Meter)

Model

CP-ECC-90R

Type

3+1 Coaxial CCTV Cable

Length

90 Meters

Conductor Material

Solid Annealed Bare Copper

Conductor Size (Power Core)

14/0.10 ± 0.010 mm

Insulation Material (Power Core)

PVC

Number of Power Cores

3 (Red, Yellow, Grey)

Power Core Outer Diameter

1.35 ± 0.10 mm

Video Core Conductor Size

1/0.60 ± 0.015 mm

Video Core Insulation

HDPE

Number of Video Cores

1 (Natural Color)

Shielding

Al-Mylar + CCA Braiding (48 wires, 0.12 ± 0.01 mm)

Video Core Jacket

HDPE

Jacket Color

Black

Video Core Outer Diameter

2.50 ± 0.20 mm

Outer Jacket Material

PVC

Outer Jacket Color

White

Outer Jacket Thickness

0.65 mm (Nominal)

Overall Outer Diameter

5.70 ± 0.30 mm

Sequential Marking

Every Meter

Conductor Resistance (DC)

65 Ω/km @ 20°C Max

Tensile Strength (PVC Jacket)

12.5 N/sq.mm (Min)

Elongation (PVC Jacket)

150% Minimum
