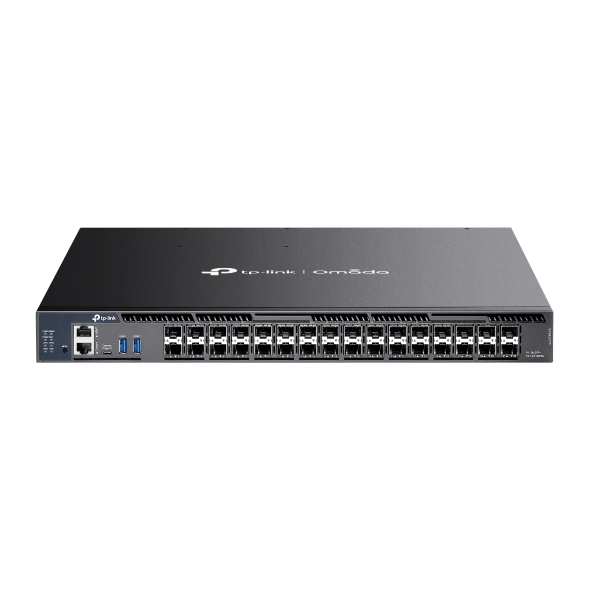

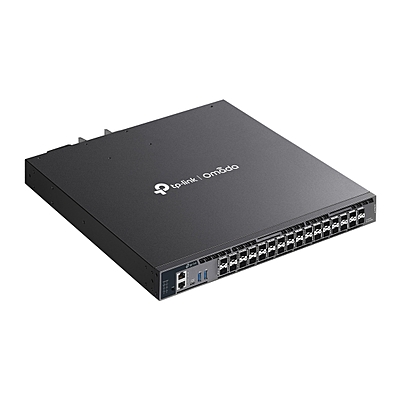

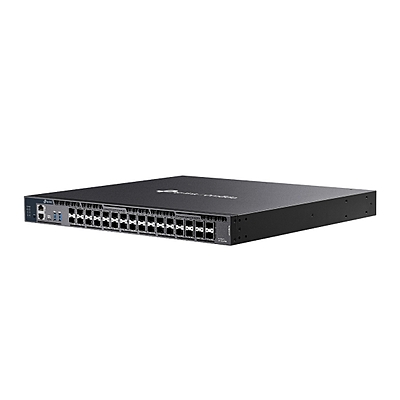

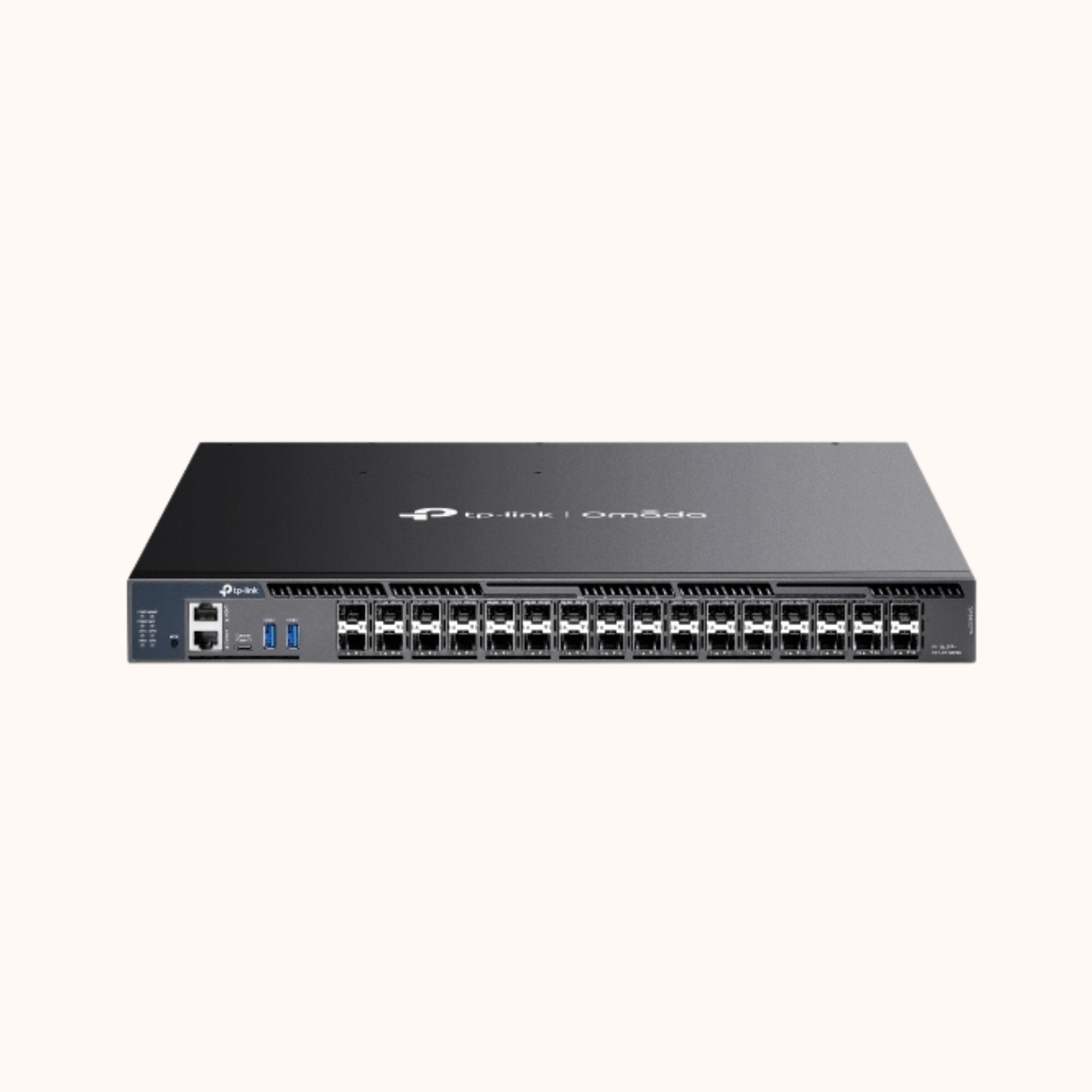

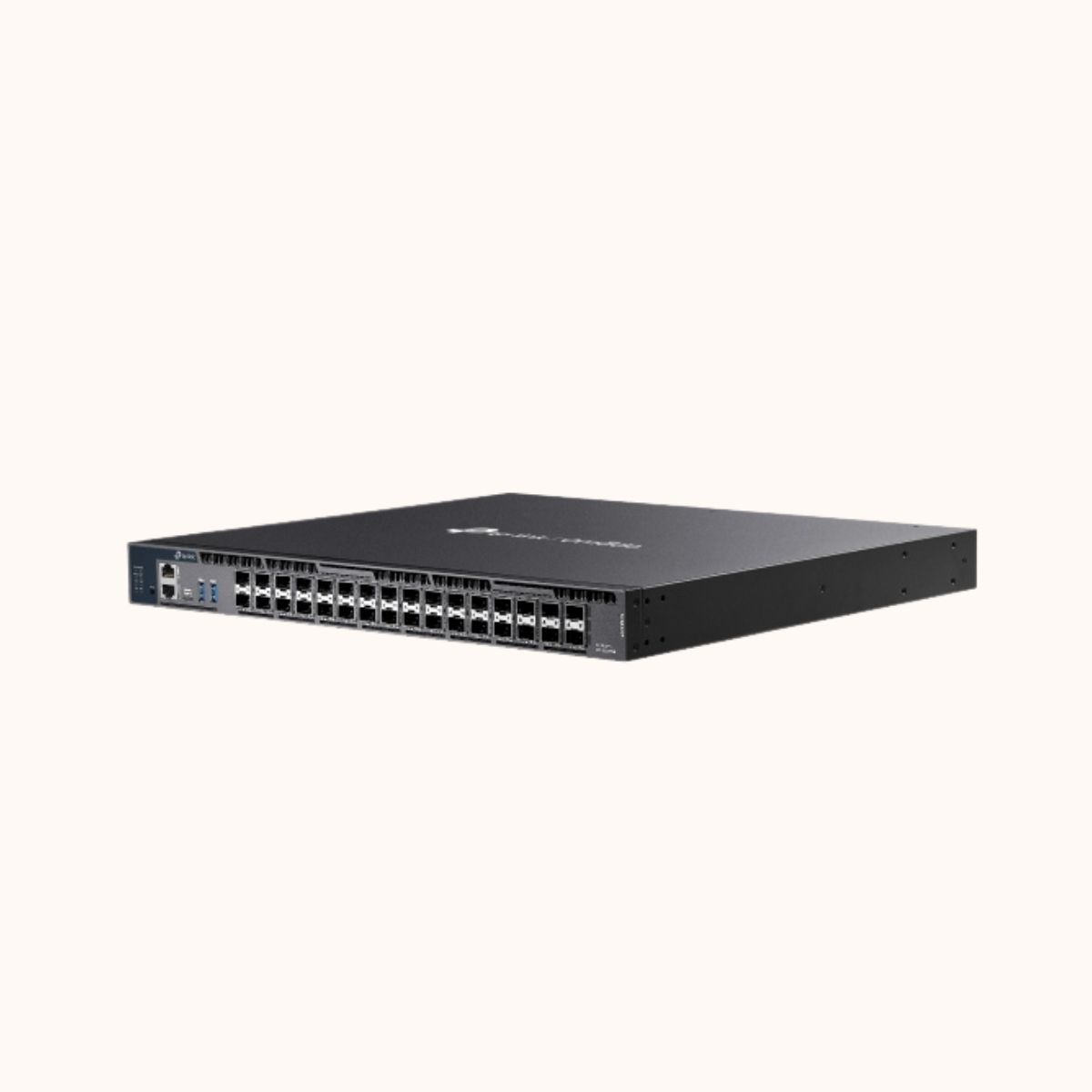

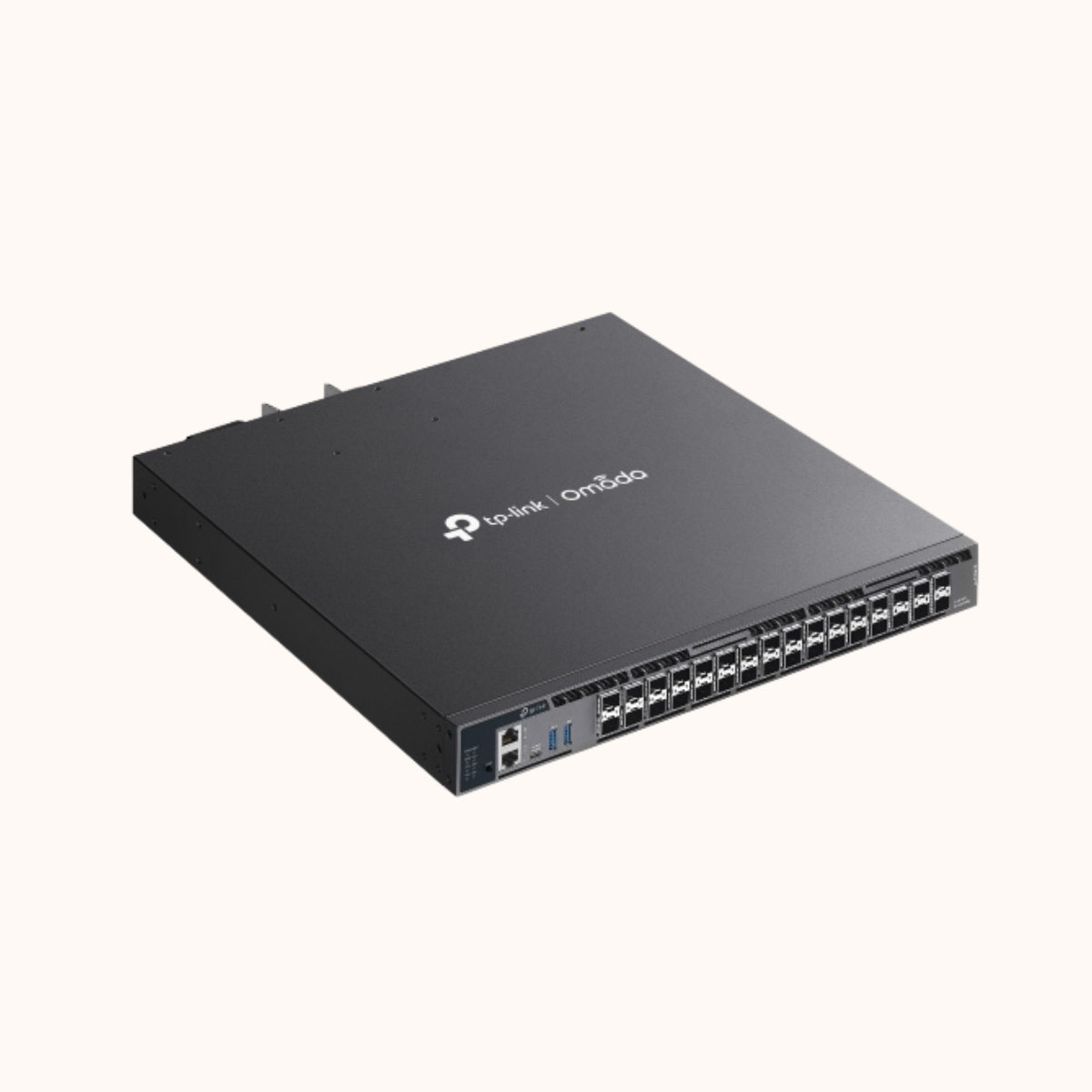

TP-Link Omada Stackable L3 Managed Aggregation Switch ,SX6632YF
Specification | Details |
|---|---|
Ports | 26× 10G SFP+ slots, 6× 25G SFP28 slots |
Switching Capacity | 820 Gbps |
Redundancy & Performance | Physical Stacking for built-in redundancy and performance |
Layer 3 Features | RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay |
Security Features | ACL, Port Security, DoS Defend, 802.1X |
High Availability | Two field-replaceable power supplies*, VRRP, ERPS |
Centralized Management | Via Omada SDN controller |
Standalone Management Options | Web interface, CLI, SNMP, RMON |
Category | Details |
|---|---|
Interface | - 6× 10/25G SFP28 Slots |

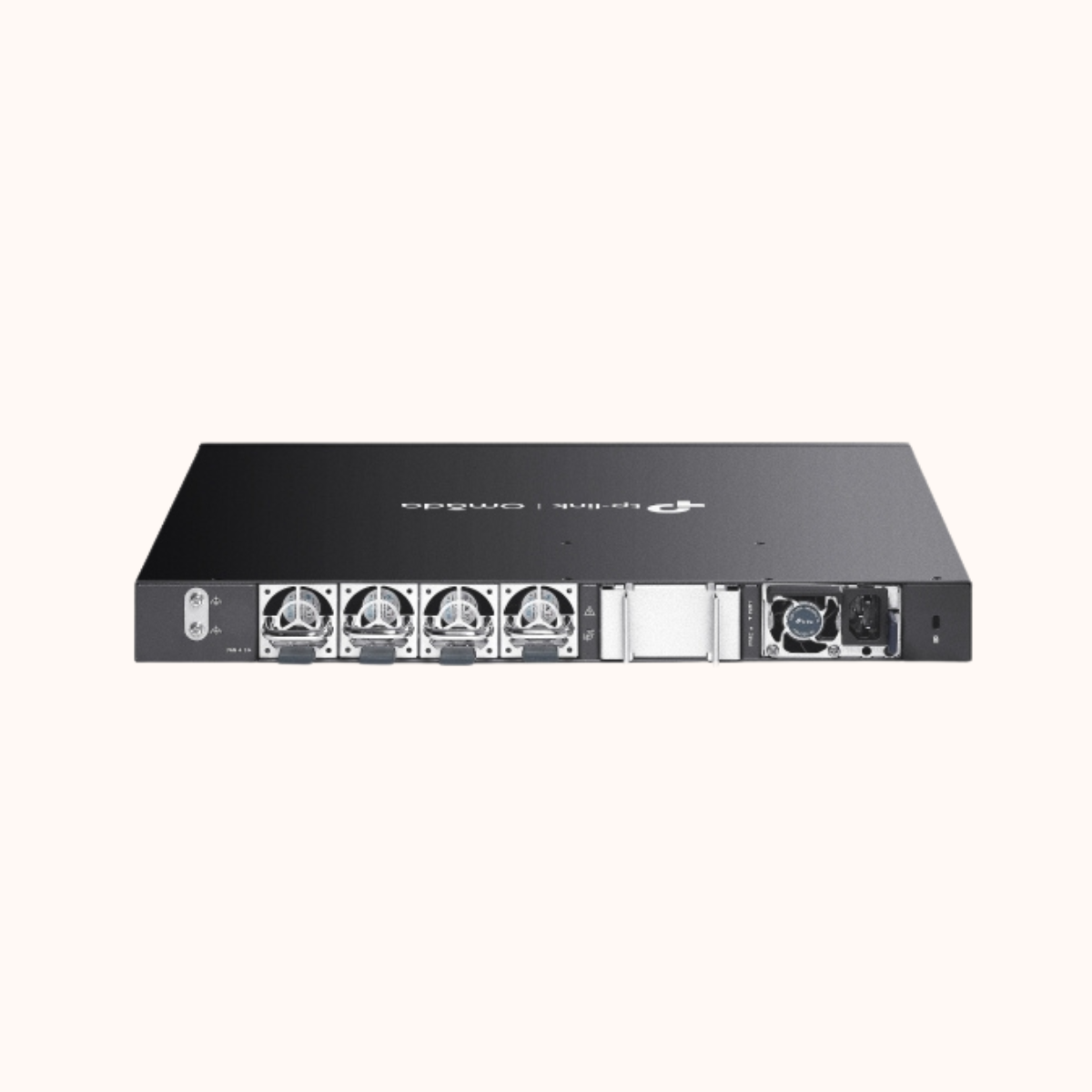

Fan Quantity | Four field-replaceable and hot-swappable fans (N+1 redundant) |
Physical Security Lock | Yes |

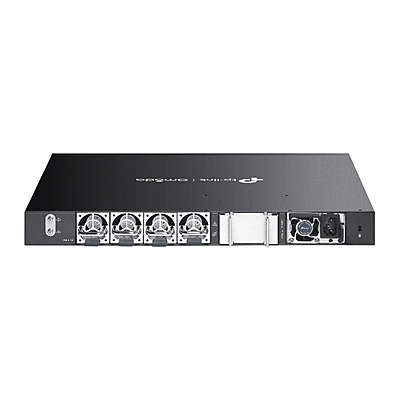

Power Supply | Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz) |
Max. Power Consumption | 86.7 W (110 V/60 Hz) |
Dimensions (W × D × H) | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) |
Mounting | Rack Mountable |
Max Heat Dissipation | 295.85 BTU/hr (110 V/60 Hz) |
Switching Capacity | 820 Gbps |
Stacking | - Stacking Number: 8 |
Packet Forwarding Rate | 610.1 Mpps |
MAC Address Table | 128 K entries |
Packet Buffer Memory | 8 MB |
Jumbo Frame | 9 KB |
General
- TypesManaged
- Switching Capacity820 Gbps
- Port TypeSFP
- Rack MountingYes
