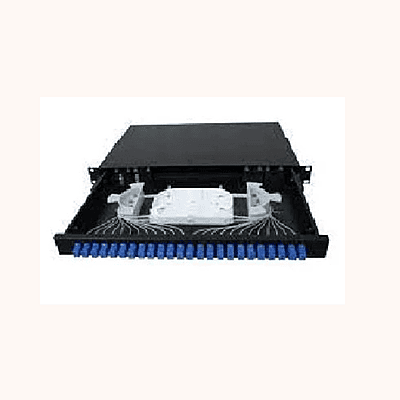

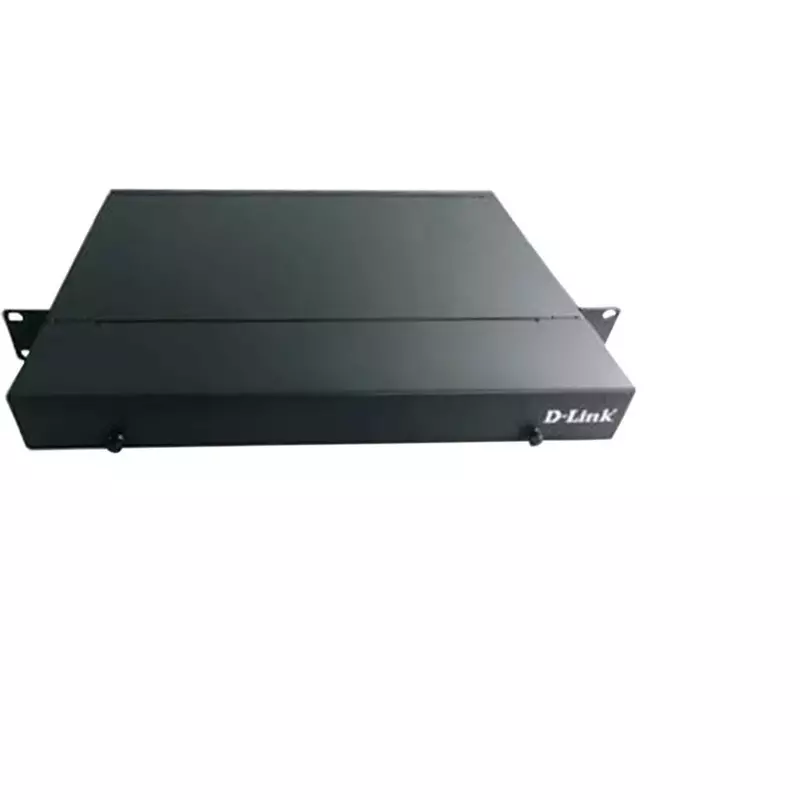

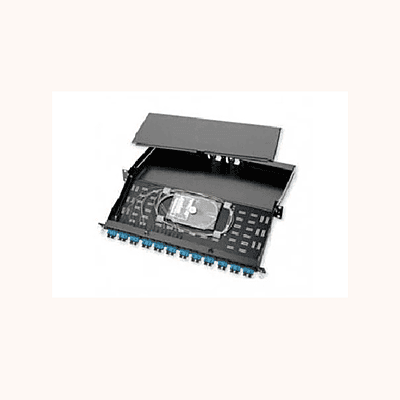

D-Link 24 Port Loaded LIU (NLU-FSDLSCR-24)
24 Ports: 24-port Loaded Local Interface Unit (LIU) for fiber optic connections
Rack-Mountable: Suitable for standard 19-inch rack installation
Flexible Connections: Supports multiple fiber optic cable types for versatile network setups
Reliable & Durable: Designed for robust, long-lasting use in data centers or large networks
Feature | Description |
|---|---|
Model | D-Link NLU-FSDLSCR-24 |
Type | Loaded LIU (Loaded Fiber Splice Distribution Patch Panel) |
Ports | 24 Ports with LC Duplex Fiber Optic Connectors |
Connector Type | LC (Lucent Connector) Duplex for fiber optic connections |
Cable Compatibility | Supports both single-mode and multi-mode fiber cables |
Mounting Type | 19-inch Rack-Mountable (1U form factor) |
Port Density | High-density design supporting up to 24 fiber connections in a compact rack-mounted unit |
Fiber Type Compatibility | - Single-Mode: Suitable for long-distance fiber optic connections - Multi-Mode: Ideal for short-distance, high-speed data transfer |
Material | Sturdy, high-quality metal chassis for durability and long-term use |
Splice Tray | Includes a fiber splice tray for secure and organized fiber splicing and termination. The tray is designed to hold fibers and splices in an orderly and safe manner. |
Fiber Organization | - Integrated cable management features to ensure neat and tidy organization of fibers - Fiber routing guides for easy and efficient installation and maintenance |
Cable Management | Comes with organized cable management clips and holders to reduce cable clutter and facilitate easier maintenance and troubleshooting |
Labeling System | - Provides clear labeling areas for fiber identification, reducing errors during setup and future upgrades - Labeling options on both the front and back of the panel |
Installation Flexibility | - Compatible with standard 19-inch server racks, making it easy to integrate into existing infrastructure - Supports both wall-mountable and rack-mountable installations |
Weight | Approximately 3.5 kg (7.7 lbs) for easy handling and installation |
Dimensions (H x W x D) | 44 mm x 442 mm x 250 mm (1U rack space for easy fit into standard racks) |
Security | - Comes with protective covers to prevent accidental damage to fibers during installation and operation - Ensures secure fiber management to avoid physical damage to cables |
Durability | Built for industrial-grade reliability and durability, able to withstand environmental conditions typically found in data centers, telecom rooms, and other communication facilities |
Operating Environment | - Operating Temperature: 0°C to 50°C (32°F to 122°F) - Storage Temperature: -10°C to 70°C (14°F to 158°F) |
Certification and Compliance | Meets industry standards for fiber optic cable management, including: - UL Listed - RoHS Compliant - CE Certified |
Ease of Maintenance | - Tool-free installation and maintenance - Easy access to fibers and splices for repair or upgrades |
Warranty | D-Link 3-Year Limited Warranty with on-site support |
Additional Features | - Enhanced thermal management for cooling of fibers - Facilitates fiber testing and troubleshooting with integrated access points - Compatible with various industry connectors |
General
- Ports Quantity24
