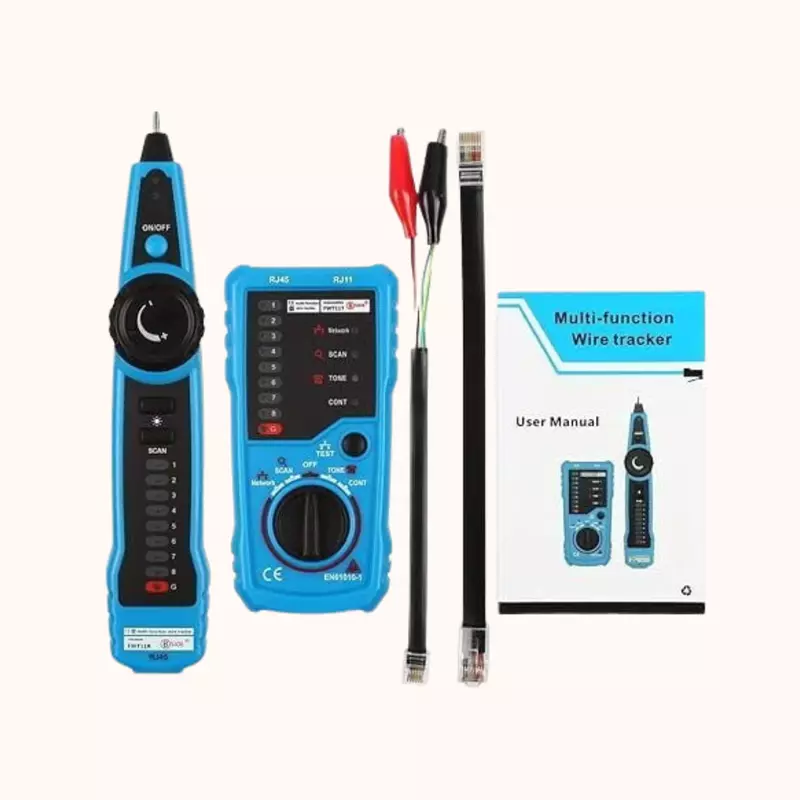

TECHTEST Cabel Taster Tool with Toner - WIRE TRACKER FWT11

About this item

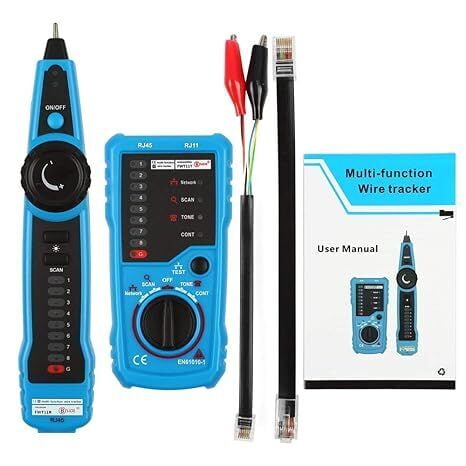

Pakage Content - 1 X Wire Tracker FWT11 High Quality RJ11 RJ45 Telephone Wire Tracker Tracer Toner Ethernet LAN Network Cable Tester Detector Line Finder Please Note: We have in stock all the time We send the package by Register Air mail,All packages have tracking number Product Description Main Functions Work profect when RJ11 RJ45 cable is on power l Wire tracing Trace RJ11, RJ45, cables or other metal wire (via adapter). Easy and fast to locate the breakpoint

without opening the wires cover. l Network cable collation: Judge short-circuit, breaking circuit, open circuit and crossing. l Test line level, positive and negative polarity. l Status of telephone line checking: Test the working status of telephone line (idle, ringing, and off-hook) and judge TIP and RING line. l Check wire continuity. General technical parameters l Temperature Operating temperature: 0 C ~ 40 C, maximal 80% relative humidity (non-condensing) Storage

Temperature:-10~50C, maximal 80% relative humidity (non-condensing, battery not included) l Altitude:<2000m( meter) l Anti-explosion rating:IP 40 l Distance of emitting signal :300m or so l Battery Emitter: 6F

Professional Wire Tracker. It can help you quickly find the target line in many pairs. It is suitable for tracking RJ45 internet cable, RJ11 telephone line and other metal wire in low electricity. Please note that it can not be used to track wires with high electricity ( maximum currents for emitter and receiver are 10mA and 30mA respectively, and maximum voltage is 10V ). Besides, you may need two 9V laminated cells, which are NOT included in the packaging of this item.

Network Cables Verifying. Plug one side of the cable into the emitter and the other side into the receiver. Select "Network" to check and verify whether the network cables are good or not. No need of network tester. Wire Tracking. It can trace not only Ethernet LAN wires, but also electrical and speaker wires when connecting to the alligator clip. In this situation, the wires must be in power-off status, otherwise the units will be damaged. It is recommended to stripe down some of the wires when
