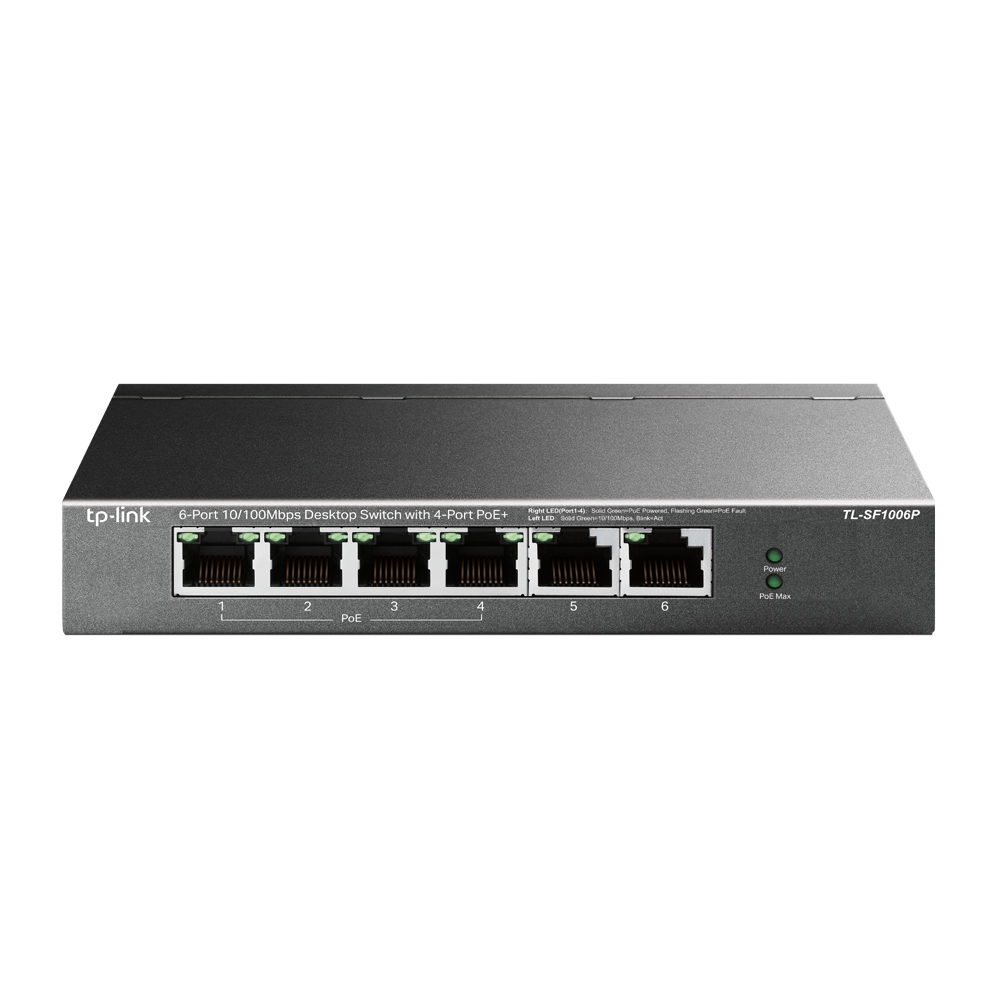

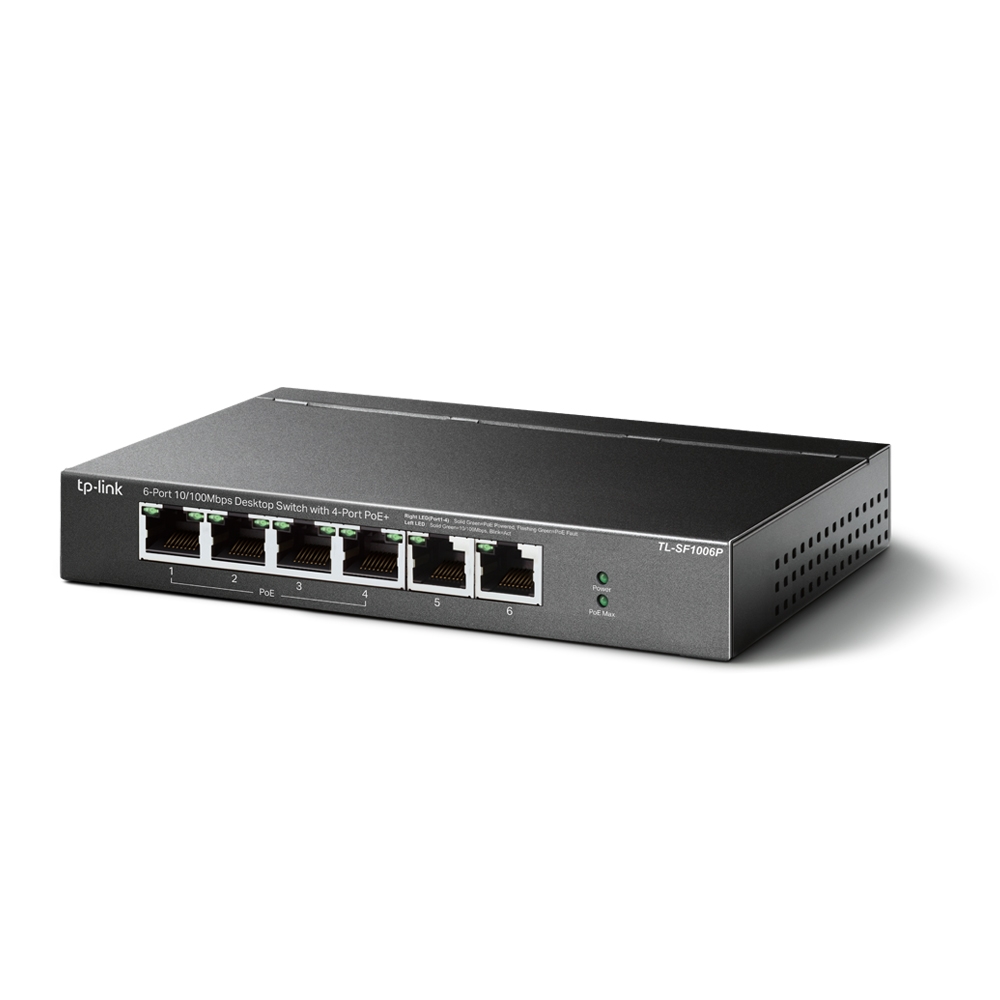

TP-Link 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+(TL-SF1006P)

Interface

6× 10/100 Mbps RJ45 Ports, Ports 1–4 support 802.3af/at PoE+, AUTO Negotiation, AUTO MDI/MDIX

Network Media

10BASE-T: UTP Cat 3/4/5 (max 100m), 100BASE-TX: UTP Cat 5/5e (max 100m), EIA/TIA-568 100Ω STP (max 100m)

Fan Quantity

Fanless

Physical Security Lock

Yes

External Power Supply

External Power Adapter (53.5V DC / 1.31A)

Packet Forwarding Rate

0.8928 Mpps

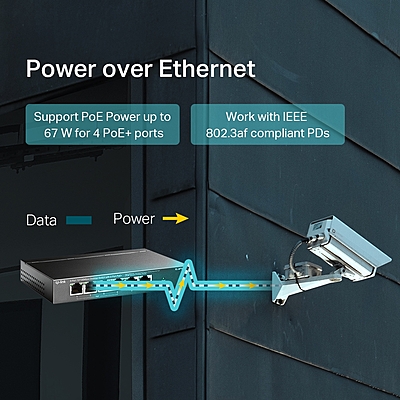

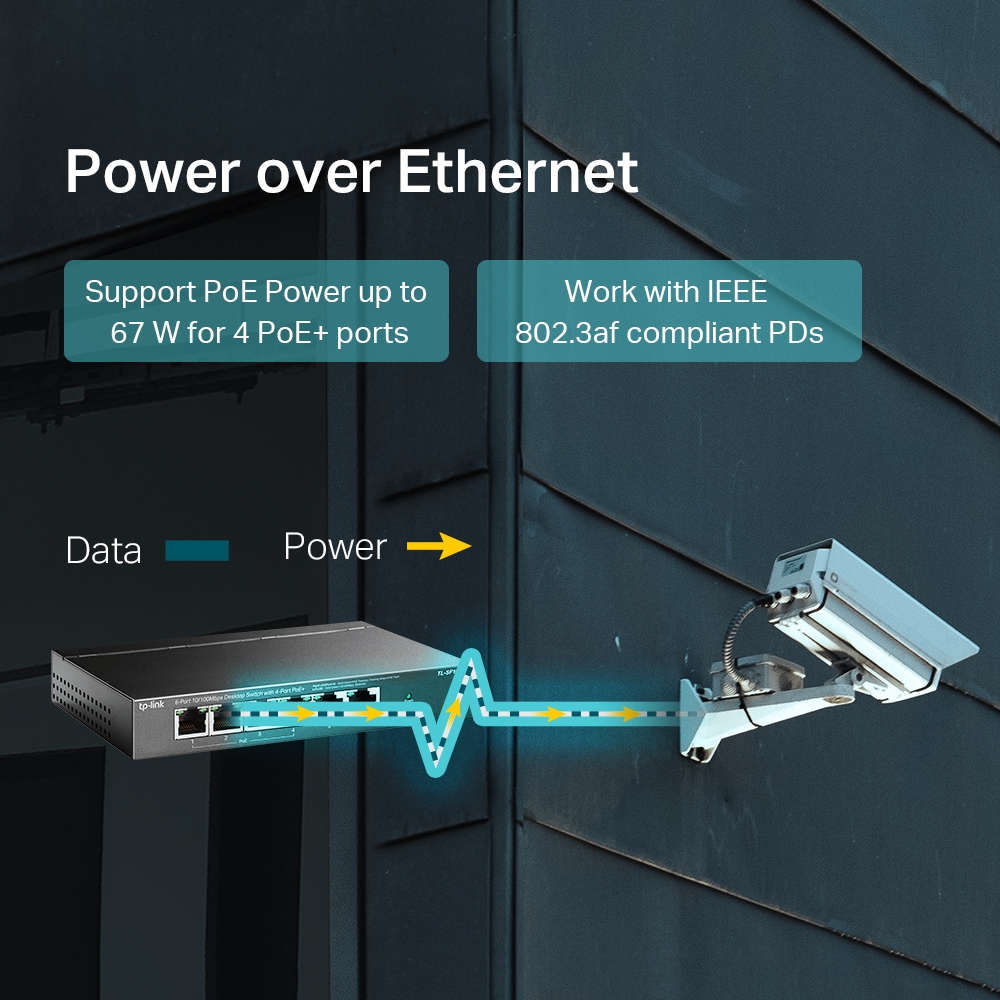

PoE Ports (RJ45)

Standard: IEEE 802.3af/at, Ports 1–4, Power Budget: 67 W

MAC Address Table

2K entries

Jumbo Frame

2 KB

Switching Capacity

1.2 Gbps

Dimensions (W × D × H)

158 × 101 × 25 mm (6.2 × 4.0 × 1.0 in)

Max Power Consumption

1.9 W (no PD connected), 74 W (with 67 W PD connected)

Max Heat Dissipation

6.48 BTU/h (no PD), 252.34 BTU/h (with 67 W PD)

Advanced Functions

IEEE 802.3af/at PDs compatible, Extend Mode (Ports 1–4), Priority Mode (Ports 1–2), MAC Address Auto-Learning & Auto-Aging, IEEE 802.3x Flow Control, Backpressure for Half-Duplex

Transmission Method

Store-and-Forward
