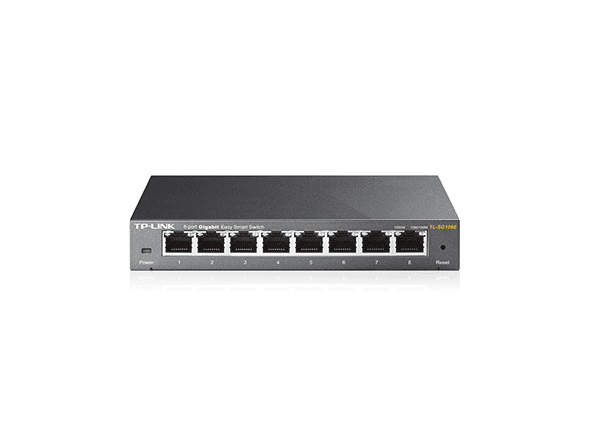

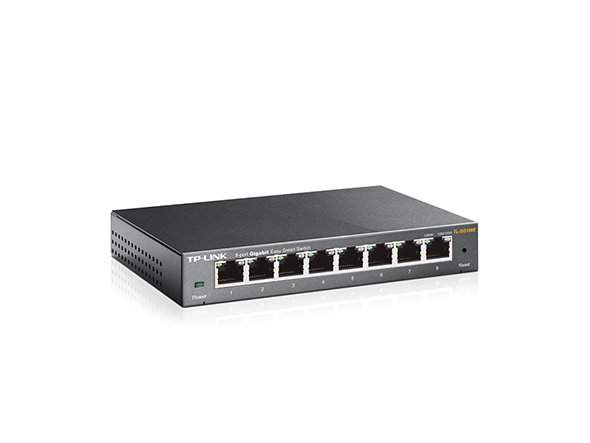

TP-Link 8-Port Gigabit Unmanaged Pro Switch-TL-SG108E V1
Feature | Description |
|---|---|
Ports | 8 × 10/100/1000Mbps RJ45 Ports |
Plug and Play | No configuration required |
Casing | Durable metal casing with professional appearance |
Management | Intelligent management via web UI and downloadable utility |
Power Efficiency | Green technology reduces power consumption |
Category | Feature |
|---|---|
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
Interface | 8 × 10/100/1000Mbps RJ45 Ports |
AUTO Negotiation/MDI/MDIX | Yes |
Network Media | 10BASE-T, 100BASE-TX, 1000BASE-T (up to 100m) |
Fan Quantity | Fanless |
Power Supply | External Power Adapter (Output: 9VDC/0.6A) |
Dimensions | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
Max. Power Consumption | 3.55W (220V/50Hz) |
Max Heat Dissipation | 12.12 BTU/h |
Switching Capacity | 16 Gbps |
Packet Forwarding Rate | 11.9 Mpps |
MAC Address Table | 4K |
Packet Buffer Memory | 1.5Mb |
Jumbo Frame | 15KB |
Quality of Service | Supports Port-based/802.1p/DSCP priority, 4 priority queues |
L2 Features | IGMP Snooping V1/V2/V3, Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention |
VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) |
Transmission Method | Store-And-Forward |
Certification | FCC, CE, RoHS |
Package Content | TL-SG108E, Power Adapter, Installation Guide, Rubber Feet |
System Requirements | Microsoft® Windows® for running Utility |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
General
- TypesUnManaged
- Switching Capacity16 Gbit/s
- Port TypeRJ45
- No. Of RJ45 Ports8
- No. Of Power Supplies Supported1
- Rack MountingYes
