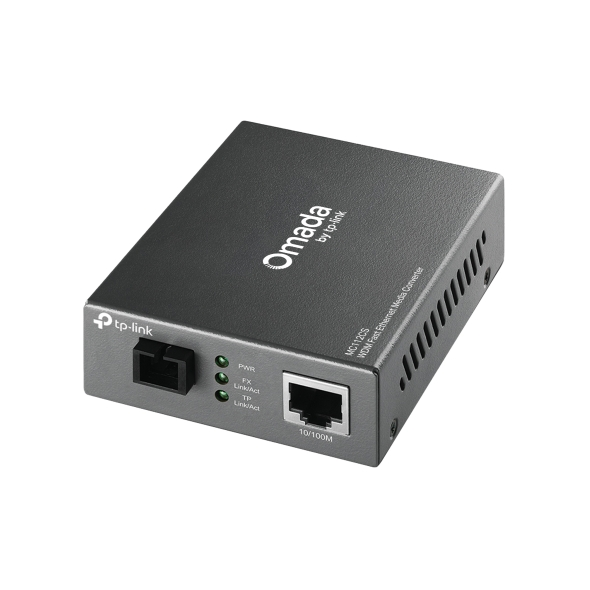

TP-Link Omada 10/100Mbps WDM Media Converter , MC112CS
Feature | Description |
|---|---|
Model | 10/100Mbps WDM Media Converter |
Compliance Standards | Complies with 802.3u 10/100Base-TX, 100Base-FX standards |
Auto-Negotiation | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode |
WDM Technology | Adopts WDM technology, transmitting and receiving data on one single fiber |
Fiber Distance | Extends fiber distance up to 20km |
Feature | Description |
|---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u |
Basic Function | Adopts WDM technology |
Transfer Mode | Half/Full-Duplex transfer mode for FX port |
Fiber Distance | Extends fiber distance up to 20km |
Interface | 1 × 100M SC/UPC port, 1 × 10/100M RJ45 port (Auto MDI/MDIX) |
Wave Length | 1310nm Tx / 1550nm Rx |
WDM TX | 1310nm |
WDM RX | 1550nm |
Network Media 10BASE-T | UTP category 3, 4, 5 cable (max 100m), EIA/TIA-568 100Ω STP (max 100m) |
Network Media 100BASE-T | UTP category 5, 5e cable (max 100m), EIA/TIA-568 100Ω STP (max 100m) |
Network Media 100BASE-FX | Single-mode Fiber |
Dimensions (W x D x H) | 3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm) |
Power Supply | External Power Adapter |
Max. Power Consumption | 2.41W |
LED | PWR, Link/Act |
Safety & Emission | FCC, CE, RoHS |
Package Content | • Media Converter MC112CS, • Power Adapter, • Installation Guide |
Operating Temperature | 0℃~40℃ (32℉~104℉) |
Storage Temperature | -40℃~70℃ (-40℉~158℉) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
General
- Ethernet Interface Type100 Gigabit Ethernet
- Fiber Optic ConnectorSFP
- Maximum Transfer Distance20000 m
