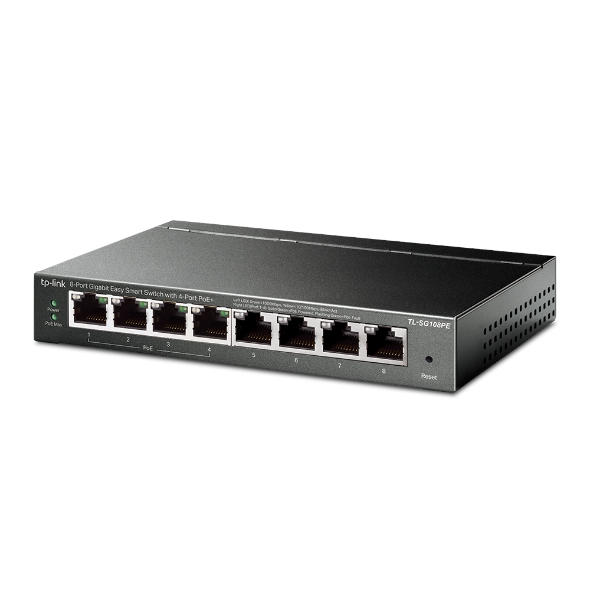

TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE+ (TL-SG108PE V4.20)

Model

TL-SG108PE

Standards & Protocols

IEEE 802.3i/u/ab/af/at, 802.3x, 802.1q, 802.1p

Interface

8 × 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media

UTP Cat 3–6 (max 100m), EIA/TIA-568 100Ω STP (max 100m)

Fan

Fanless

Power Supply

External Adapter (48V DC / 1.25A)

PoE

4 × PoE+ Ports (802.3af/at compliant)

PoE Power Budget

55W

Dimensions (W×D×H)

158 × 101 × 25 mm (6.2 × 4.0 × 1.0 in)

Max Power Consumption

5.15W (no PD), 65.18W (with 55W PD)

Max Heat Dissipation

17.57 BTU/h (no PD), 222.39 BTU/h (with 55W PD)

Switching Capacity

16 Gbps

Packet Forwarding Rate

11.9 Mpps

MAC Address Table

4K entries

Packet Buffer Memory

1.5 Mb

Jumbo Frame

15 KB

QoS Features

Port-Based / 802.1p / DSCP priority, 4 priority queues, Rate Limit, Storm Control

L2 Features

IGMP Snooping (V1/V2/V3), Link Aggregation, Port Mirroring, Cable Diagnostics, Loop Prevention

VLAN

Up to 32 VLANs (out of 4K IDs), MTU/Port/Tag VLAN support

Management

Web GUI, Easy Smart Configuration Utility

Transmission Method

Store-And-Forward

Certifications

FCC, CE, RoHS

Package Contents

TL-SG108PE, Power Adapter, Installation Guide, Rubber Feet

System Requirements

Windows OS (for Configuration Utility)

Operating Temp

0℃~40℃ (32℉~104℉)

Storage Temp

-40℃~70℃ (-40℉~158℉)

Humidity (Operating)

10%~90% RH non-condensing

Humidity (Storage)

5%~95% RH non-condensing
