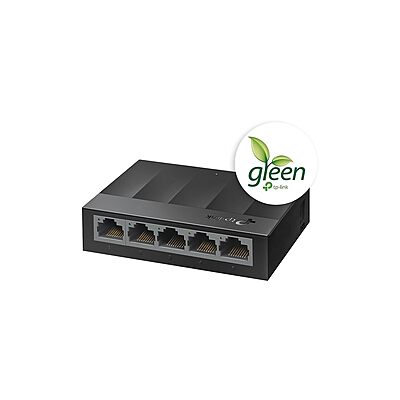

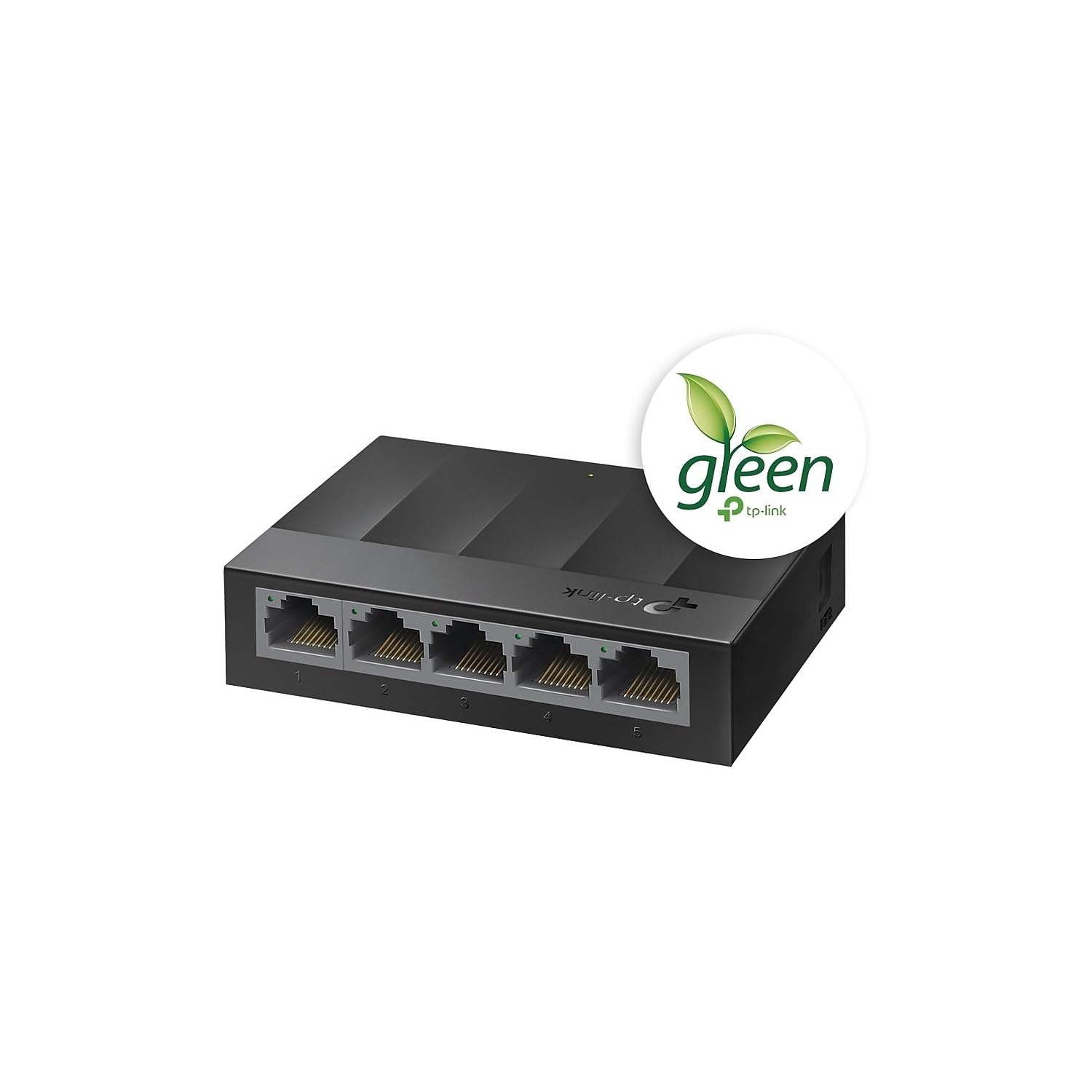

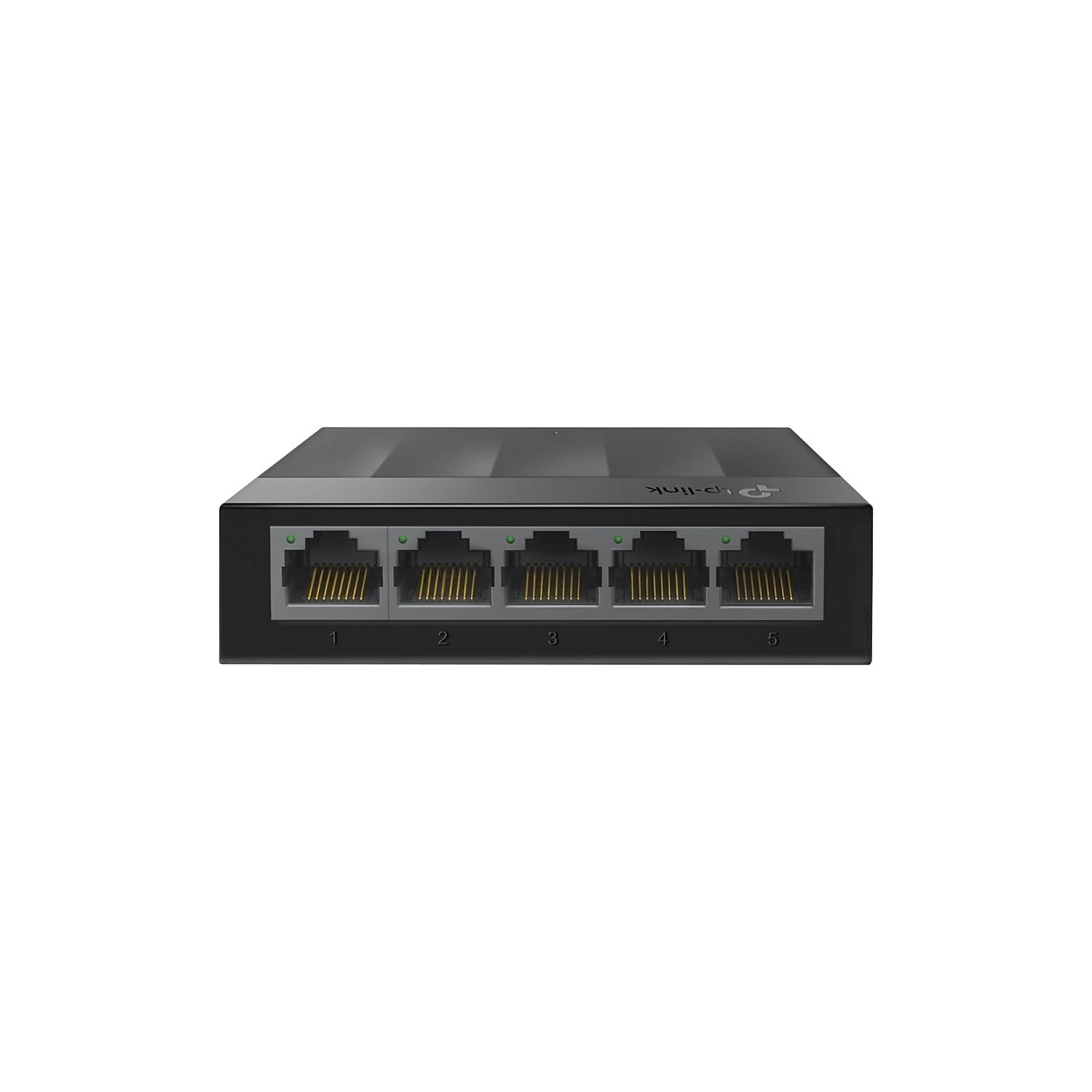

TP-Link 5-Port 10/100/1000Mbps Desktop Switch-LS1005G
Brand | TP-Link |
Number of Ports | 5 |
Included Components | 1 x LS1005G |
Compatible Devices | Laptop |
Switch Type | Ethernet Switch |
Feature | Details |
|---|---|
Standards and Protocols | IEEE 802.3i/802.3u/802.3ab/802.3x |

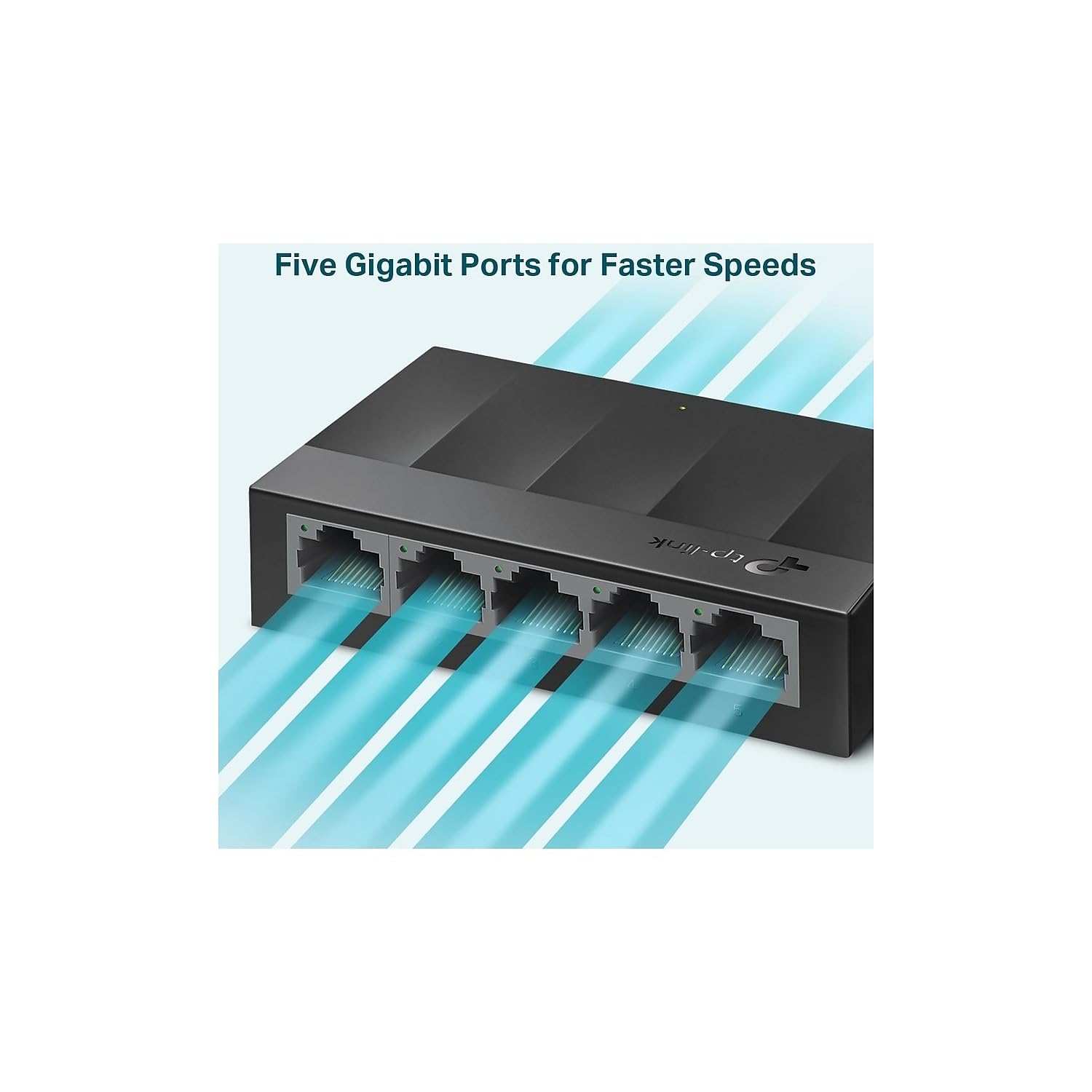

Interface | 5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |

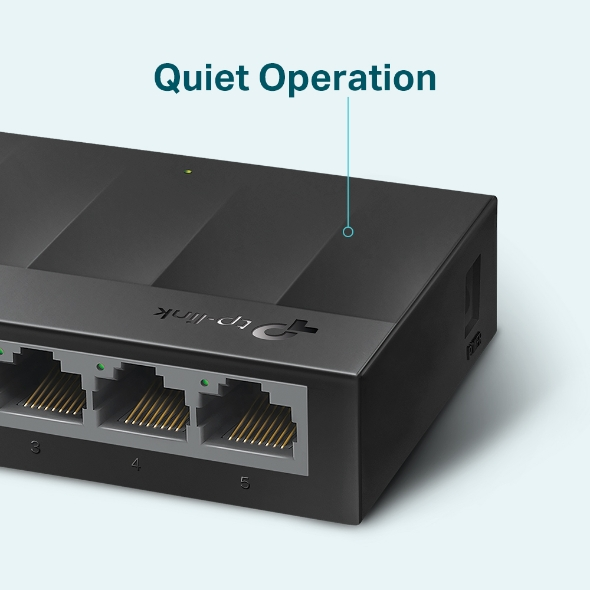

Fan Quantity | Fanless |
External Power Supply | External Power Adapter (Output: 5VDC/0.6A) |
Dimensions (W x D x H) | 3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm) |
Max. Power Consumption | 3.7W |
Max Heat Dissipation | 12.617 BTU/h |
Switching Capacity | 10 Gbps |
Packet Forwarding Rate | 7.4 Mpps |
MAC Address Table | 2K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 16 KB |
Advanced Features | Green Technology, 802.3X Flow Control, Back Pressure |
Transmission Method | Store and Forward |
Certification | CE, FCC, RoHS |
Package Content | 5-Port 10/100/1000Mbps Desktop Switch, Power Adapter, Installation Guide |
General
- TypesUnManaged
- Switching Capacity10 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports5
- No. Of Power Supplies Supported1
