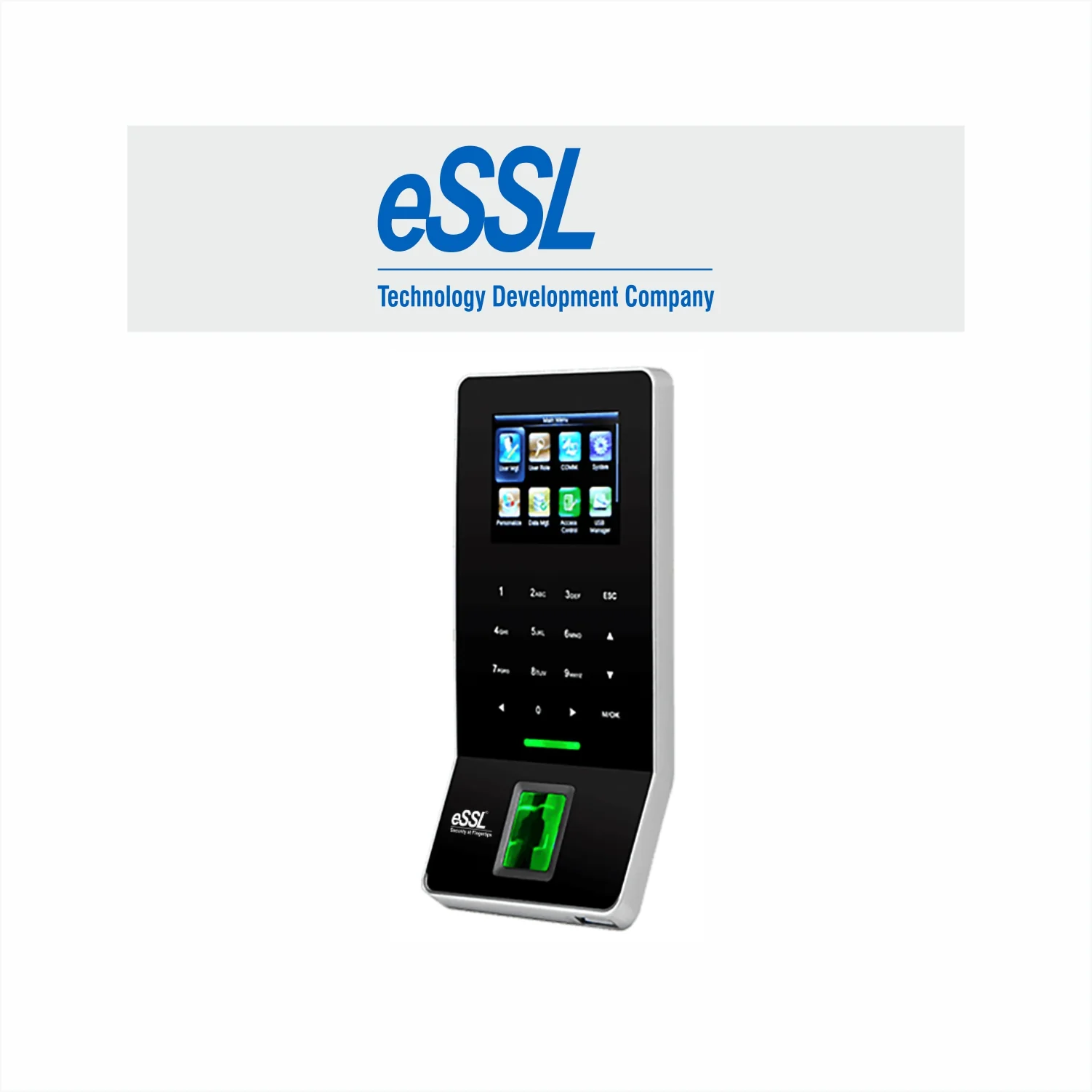

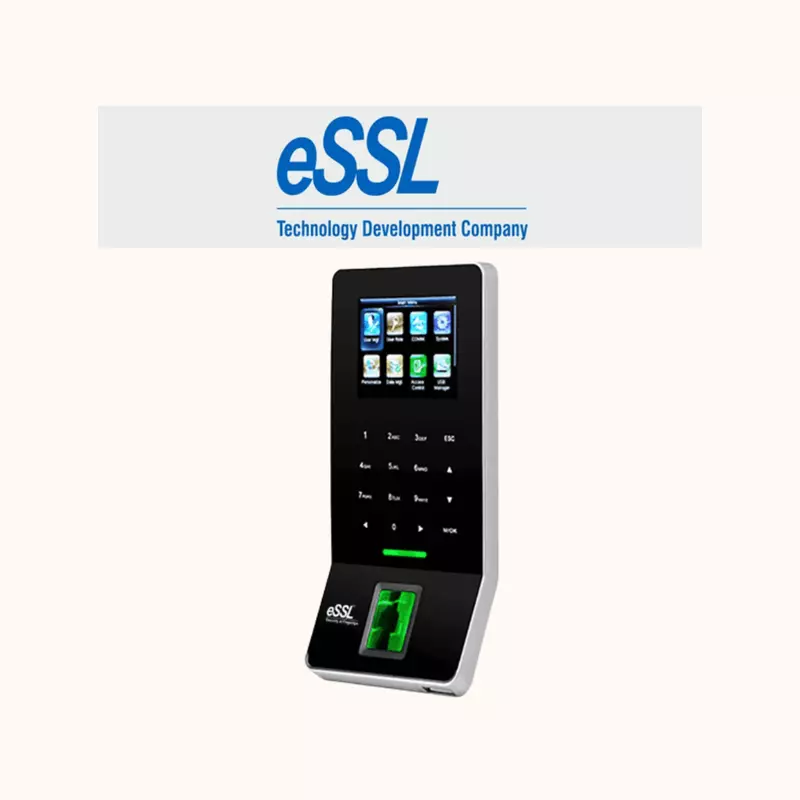

ESSL Biometrics Attendance Machine (Fingerprint - F22)
Feature
Description
Model
ESSL F22
Authentication Methods
Fingerprint, PIN, Card (RFID)
Fingerprint Capacity
3,000
Transaction Capacity
30,000
Display
2.4-inch TFT LCD Color Screen
Communication
TCP/IP, USB Host, Wi-Fi (optional)
Access Control
Built-in Relay for Door Lock
Power Supply
DC 12V, 3A
Operating Temperature
0°C to 45°C
Dimensions
158 × 78 × 19.4 mm
ESSL Biometrics Attendance Machine (Fingerprint - F22) - Specifications | |
|---|---|
Model | ESSL F22 |
Type | Biometric Fingerprint Time & Attendance Terminal with Access Control |
Fingerprint Capacity | 3,000 templates |
Card Capacity | 5,000 cards (optional) |
Transaction Capacity | 30,000 logs |
Display | 2.4-inch TFT LCD Color Screen |
Communication | TCP/IP, USB Host, RS485 |
Identification Mode | Fingerprint, Card (RFID), Password |
Access Control Interface | Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
Authentication Speed | ≤0.5 seconds |
Operating System | Linux-based firmware |
Power Supply | DC 12V, 1.5A |
Operating Temperature | 0°C to 45°C |
Operating Humidity | 20% to 80% |
Dimensions | 158mm x 78mm x 19.4mm |
Installation | Wall Mounted |
Software | Compatible with ETimeTrackLite & BioTime |
Features | Push Data Technology, Built-in WiFi (optional), Sleek Design, Access Control Integration |
General
- Type Of ProductMulti-Biometric
- Operating Humidity20% -80%
- Finger Print Capacity3000 - 3999
- FARLess Then 0.0001%
- FRRLess then 1%
- Face Capacity3000 (1:N), 3000 (1:1)
- Display2.4 Inches (Color Display)
- Sensor Type500 DPI Optical sensor
- Frequency1.0GHz
- Power Supply12 V
- Communication TypeCP/IP, RS232/485, USB Host ( Optional : Wifi, GPRS )
- LanguageMulti Language Support
- ID Card Capacity10,000 (optional)
