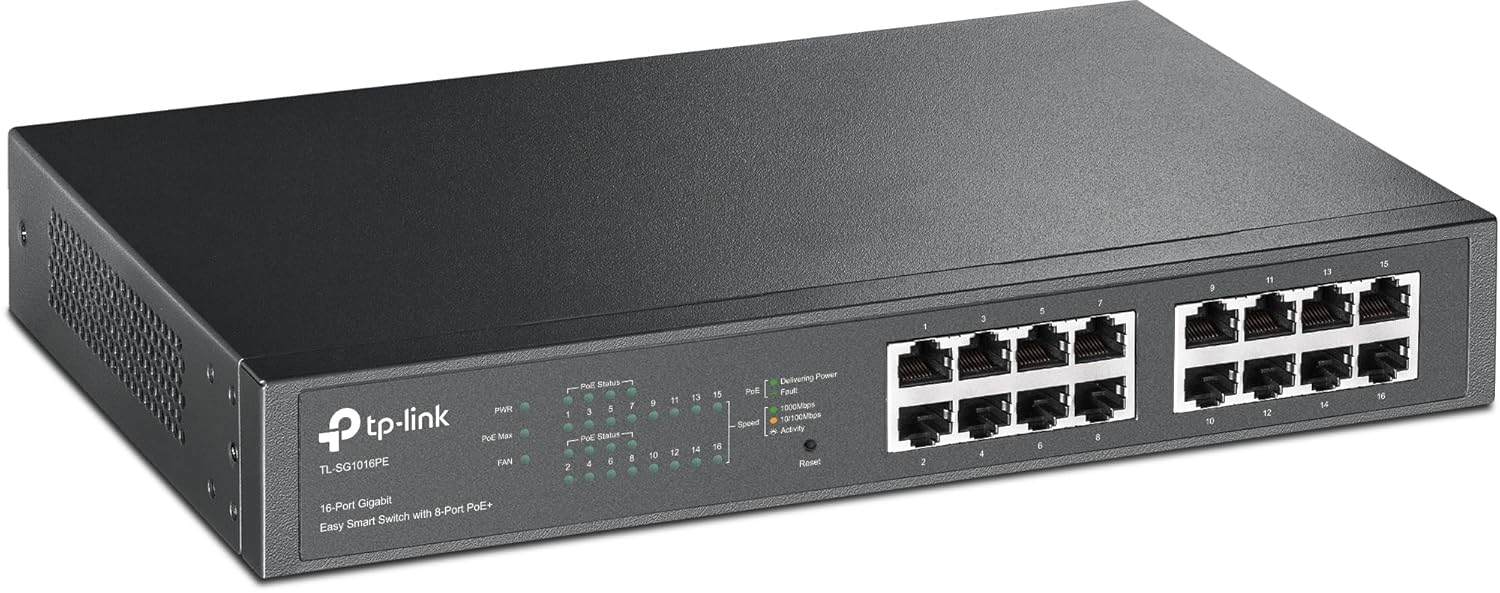

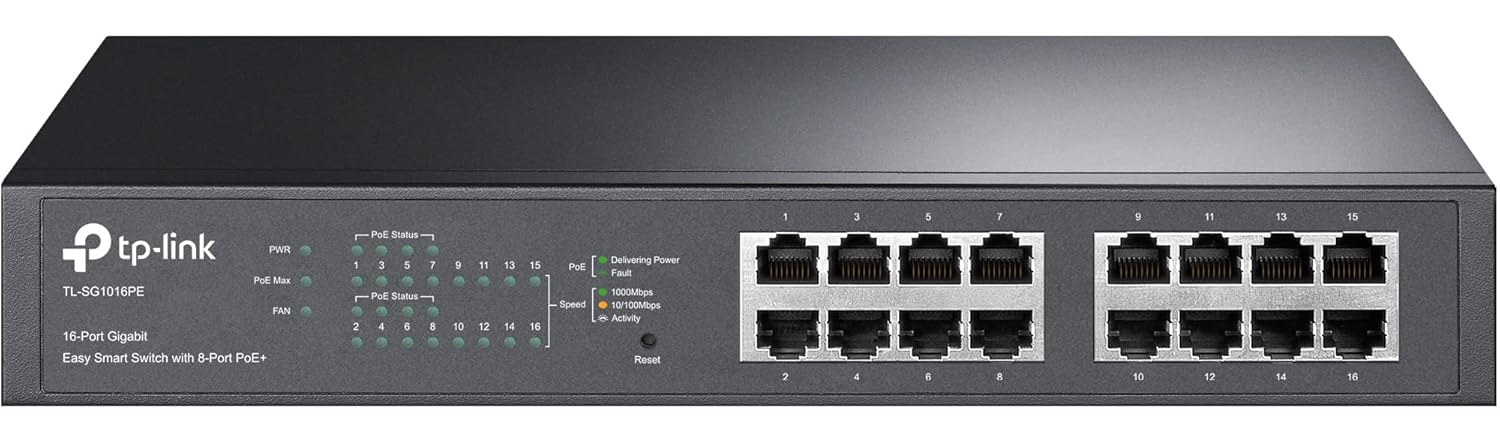

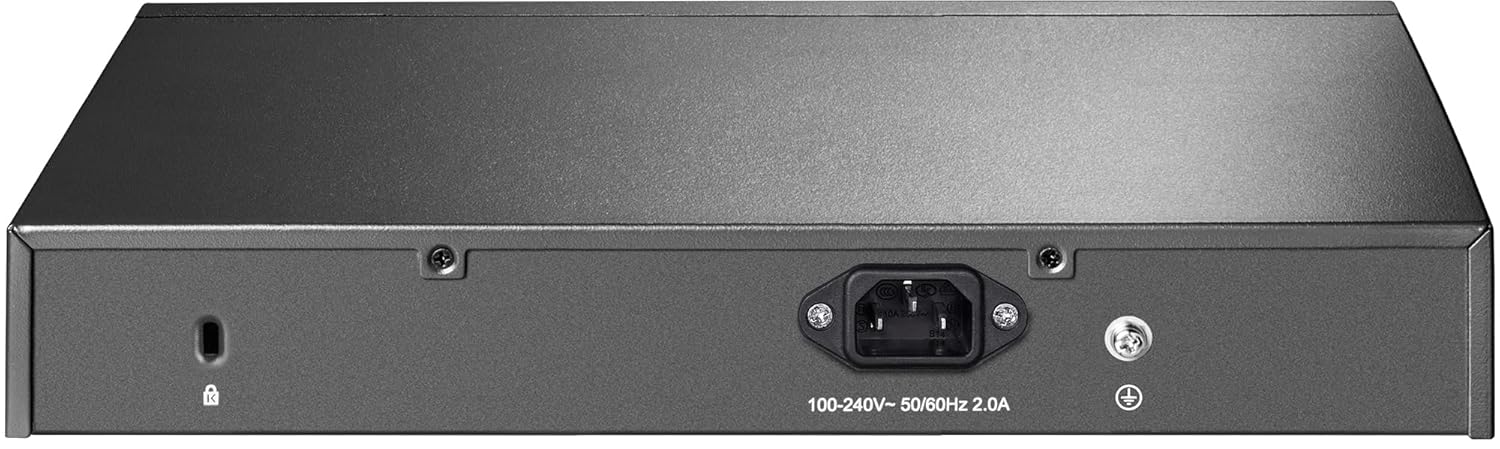

TP-Link 16-Port Gigabit Easy Smart Switch with 8-Port PoE-TL-SG1016PE
Brand | TP-Link |
Number of Ports | 16 |
Included Components | TL-SG1016PE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet |
Colour | Black |
Compatible Devices | Desktop |
Feature | Details |
|---|---|
Ports | 16× 10/100/1000 Mbps RJ45 Ports |
PoE Ports | 8× PoE Ports (802.3af/at compliant) |
PoE Power Budget | 150 W |
Switching Capacity | 32 Gbps |
Fan | Fanless Design |
Mounting Options | Rack Mountable / Desktop |
Management Interface | Web-based GUI, Easy Smart Configuration Utility |
QoS Support | 802.1p/DSCP, 4 Priority Queues, Rate Limit, Storm Control |
VLAN Support | Up to 32 VLANs (out of 4K IDs), MTU/Port/Tag VLAN |
L2 Features | IGMP Snooping, Link Aggregation, Port Mirroring, Loop Prevention |
Jumbo Frame | 10 KB |
MAC Address Table | 8K |
Power Supply | Internal, 100–240V AC, 50/60 Hz |
Max Power Consumption | 173.88W (fully loaded PoE) |
Dimensions (W×D×H) | 294 × 180 × 44 mm |
Operating Temperature | 0–45 ℃ (32–113 ℉) |
Certifications | FCC, CE, RoHS |
Package Includes | Switch, Power Cord, Rackmount Kit, Rubber Feet, Installation Guide |
General
- TypesSmart
- Switching Capacity32 Gbit/s
- Port TypeEthernet
- No. Of Ethernet Ports8
- No. Of RJ45 Ports8
- No. Of Power Supplies Supported1
- Rack MountingYes
