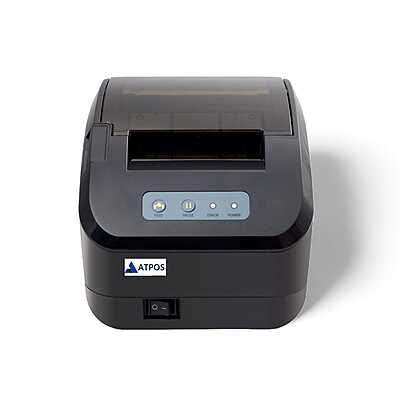

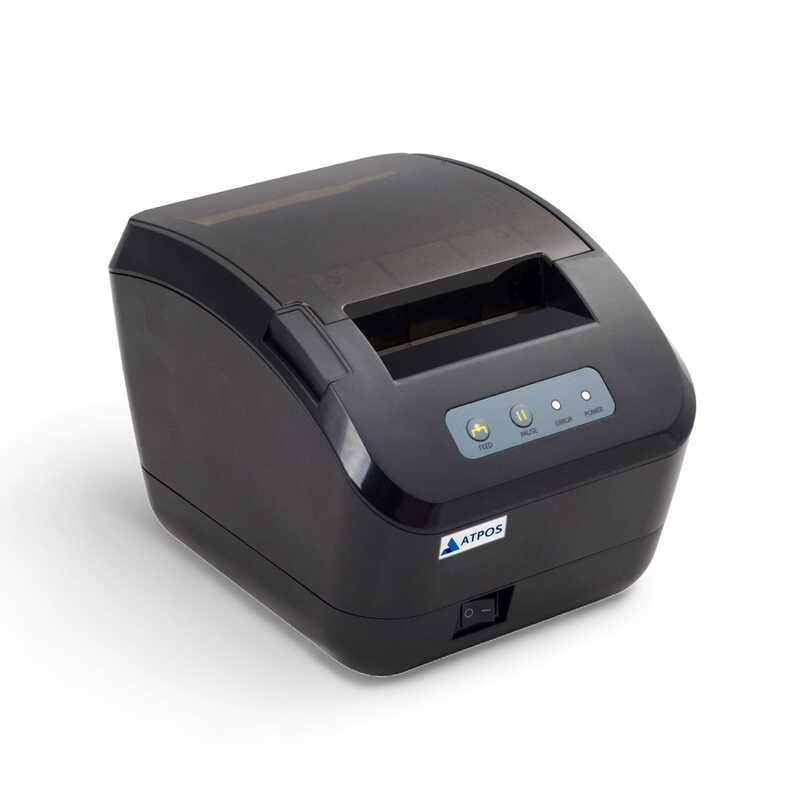

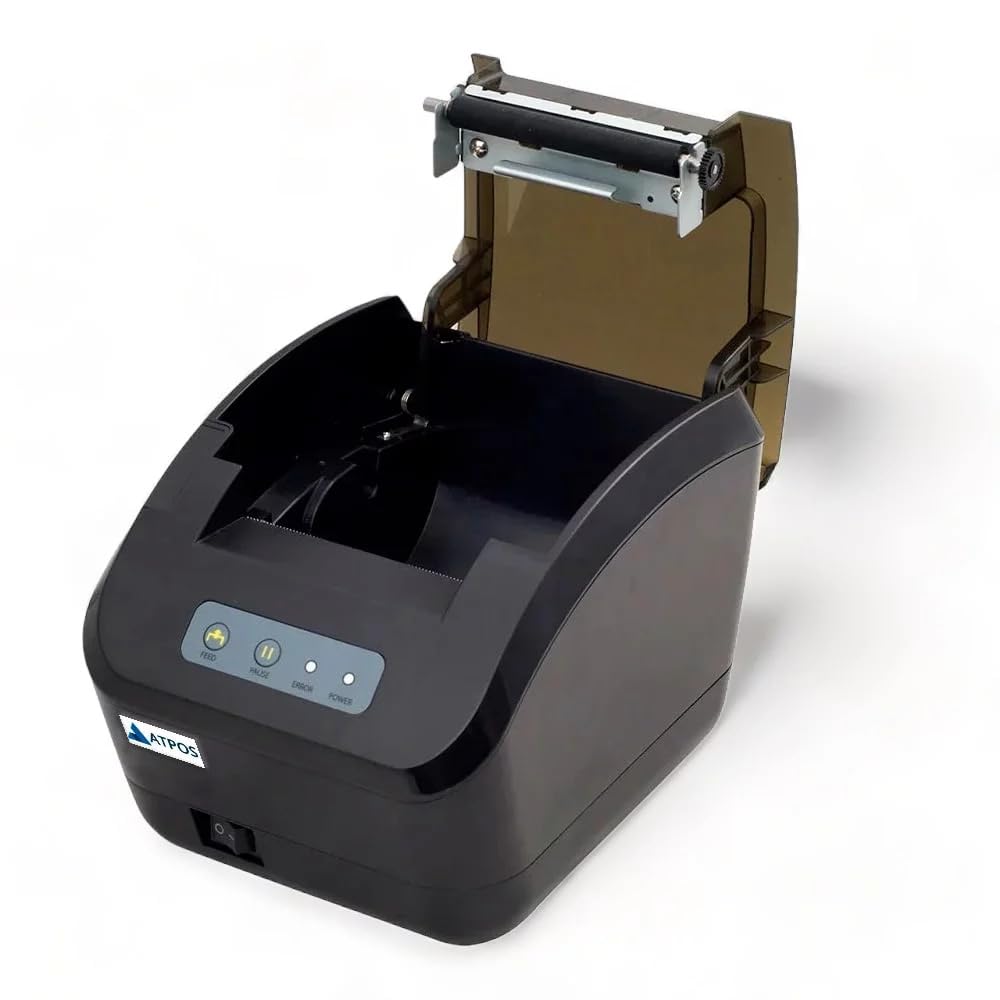

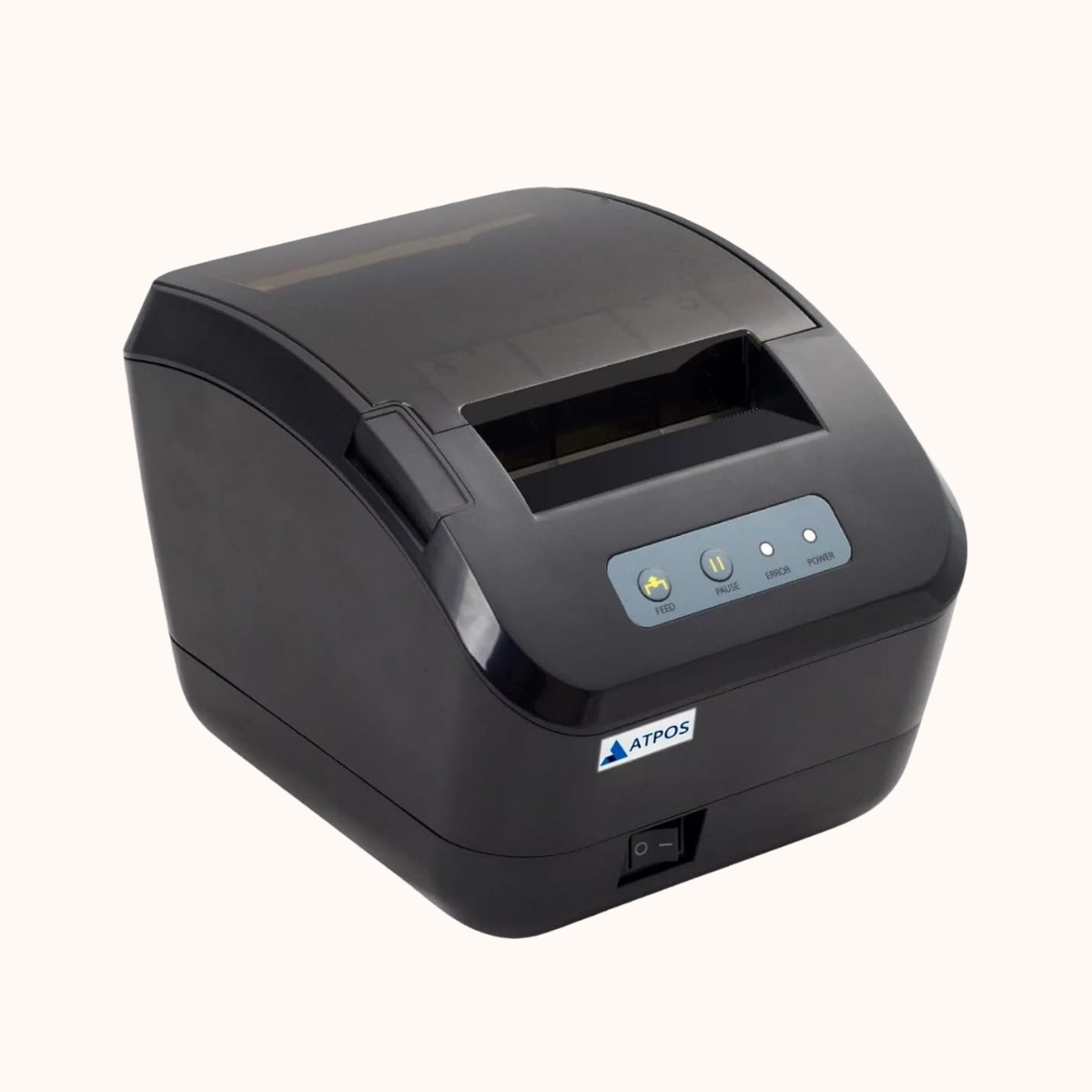

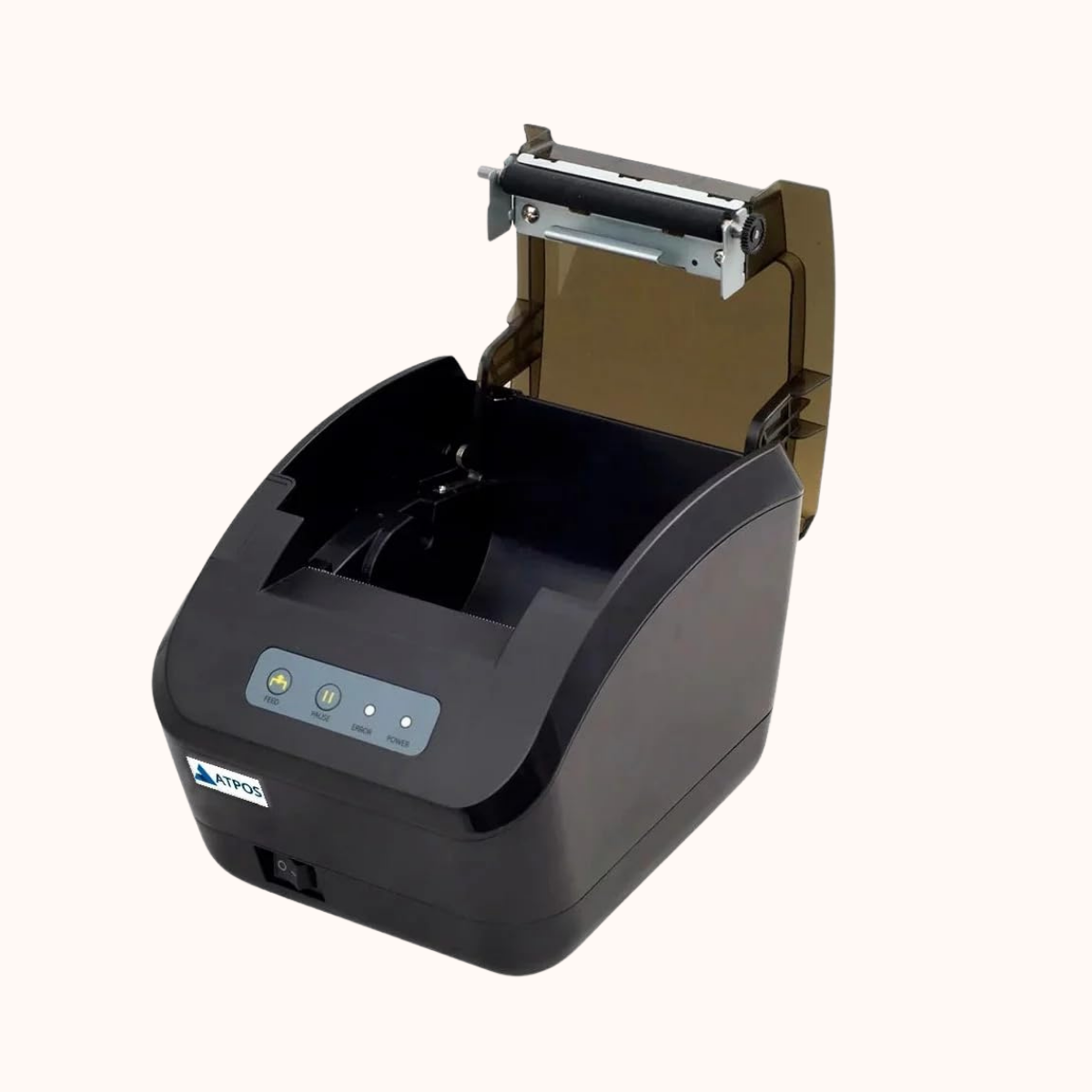

Atpos AT-602 80mm 3 Inch Dual Mode Thermal Receipt + Label Printer (USB+Bluetooth)
Dual Mode Printing Can Print Thermal Receipt and Barcode Label Sticker Paper
Adjustable label width 20mm-80mm, Interface: USB + Bluetooth PORT.
With high efficiency and clear printing, print speed can reach to 152mm/s.
Up to 100 Km Head Life, Support Window software based on ESC/POS command.
Printing
Printing Method: DirectThermal Line
Printing width: 72mm
Resolution: (8dots/mm,203dpi)
Printing Speed: Min: 50.8mm/sec Max: 152mm/sec

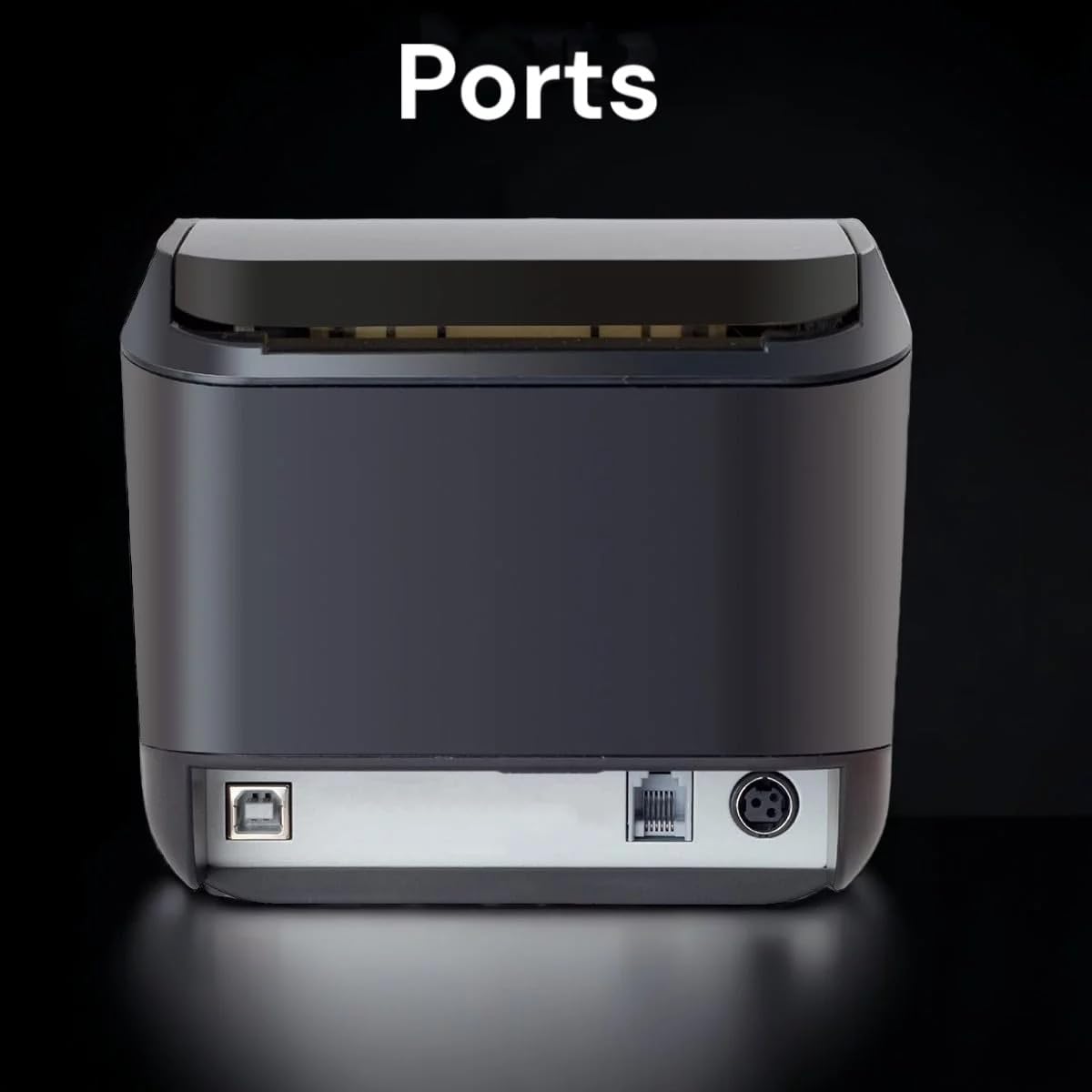

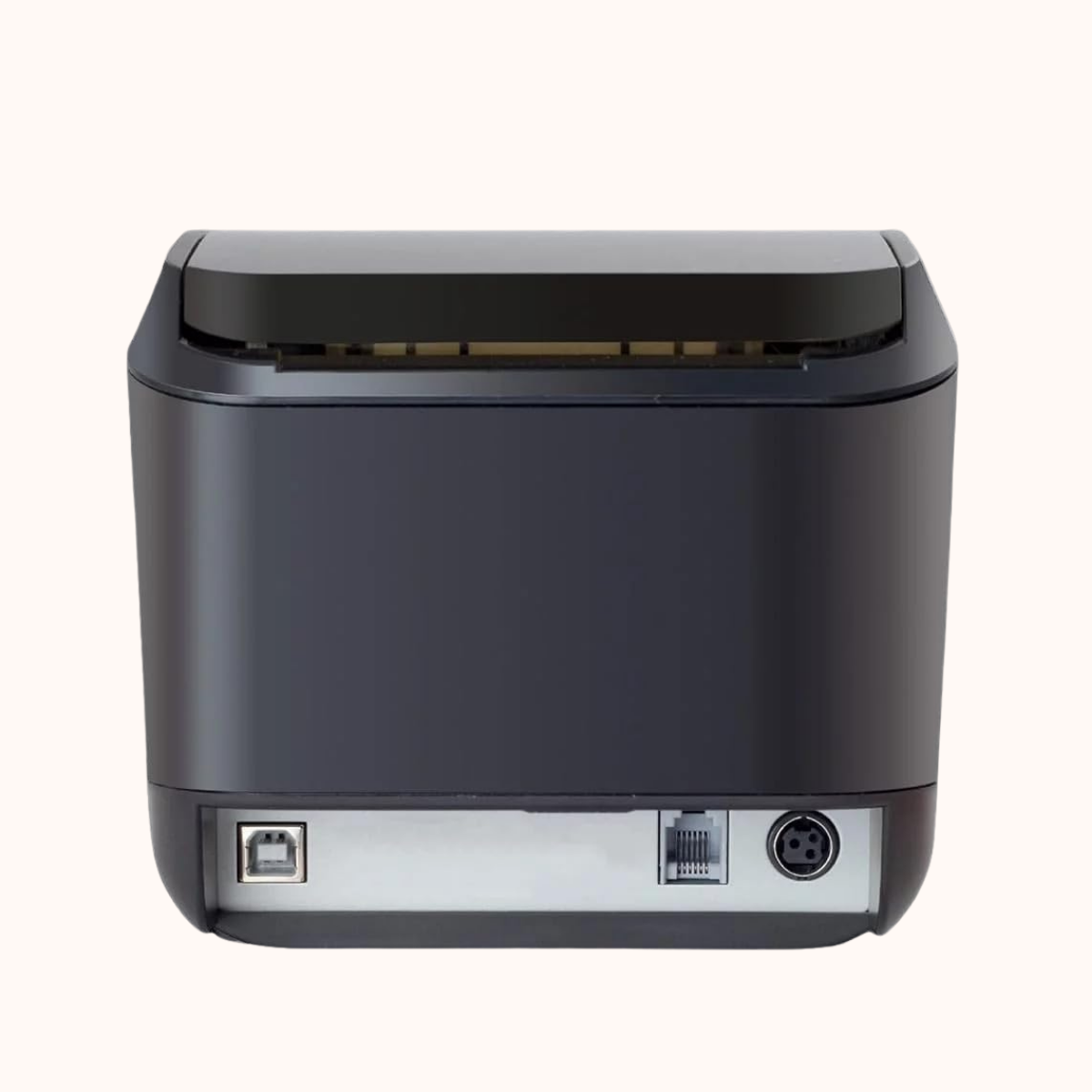

Interface: USB + Bluetooth
Memory
Input Buffer: 2M
NV Flast: 2M
Fonts
FONT A: 12X24
FONT B: 9ร17
User-Defined: Supports
Barcode
1D: CODE128 / 128M / EAN128 / CODE39 / 39C / 39S / CODE93 / EAN13 / EAN13+2 / EAN13+5 AN8 / EAN8+2 / EAN8+5
2D: PDF417/QR CODE/DATA MATRIX
Sensors
Print Head Temperature Sensor: Thermal Sensitive resistance
Paper Exit Detection: Photoelectric Sensor
Power
Input: AC 110V/220V,50~60Hz
Output: DC 24V/2.5A
Cash Drawer output: DC 24V/1A
Physical characteristics
Weight: 1.10KG
Dimension: 195*148*148(MM)
Environment
Working: Temp:5 ~ 45โ, Humidity:10 ~ 80%
Storage: Temp:-10 ~ 50โ ,Humidity:10 ~ 90%(No dew)
Reliability parameter
Print Head Life:100 KM(print densityโค12.5)
Cutter Life: No Cutter
Warranty: 1 Year
Software
Driver: Linux,WinXP,Win7,Win8,Win8.1, Win 10
Emulation: TSPL(Lable mode)/ ESC/POS(Receipt mode)
General
- Type Of PrinterLabel Printers
- InterfaceBluetooth + USB
Print Details
- Printing MethodDirect Thermal Line
- Resolution203 DPI
- Printing SpeedMax 152mm/s
- CutterNo Cutter
- DriverWindows/Linux
