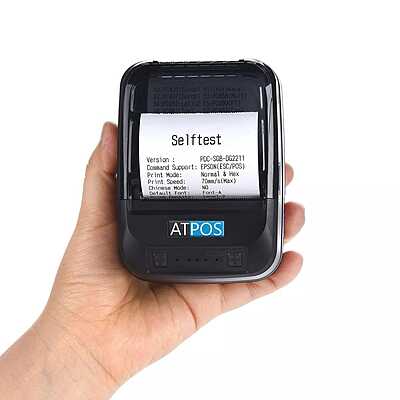

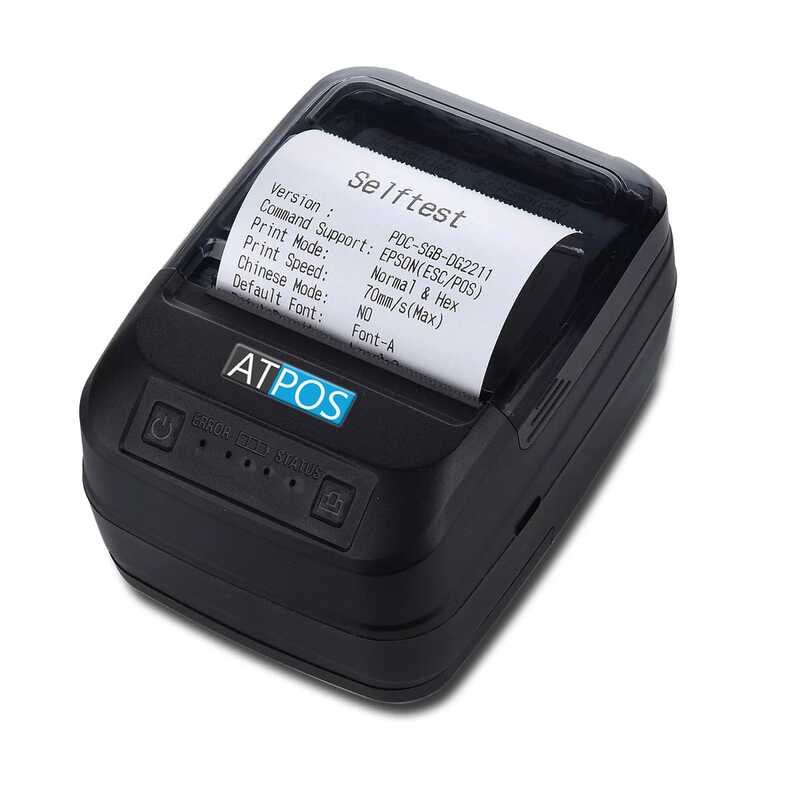

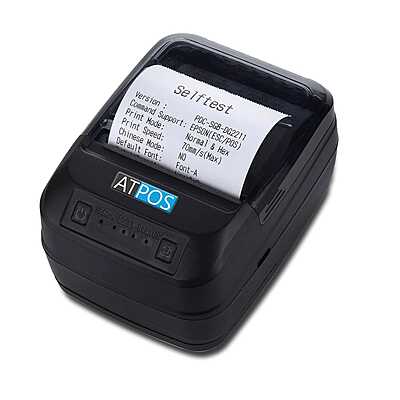

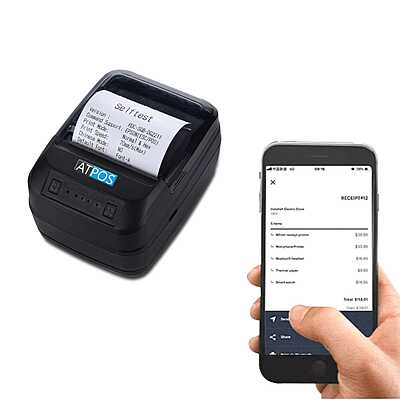

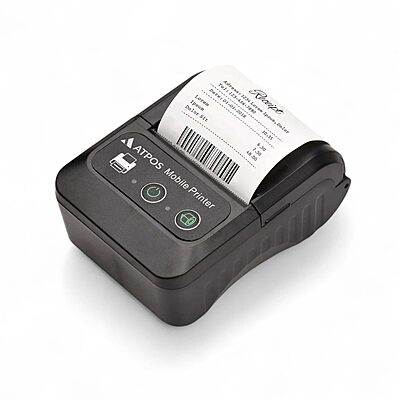

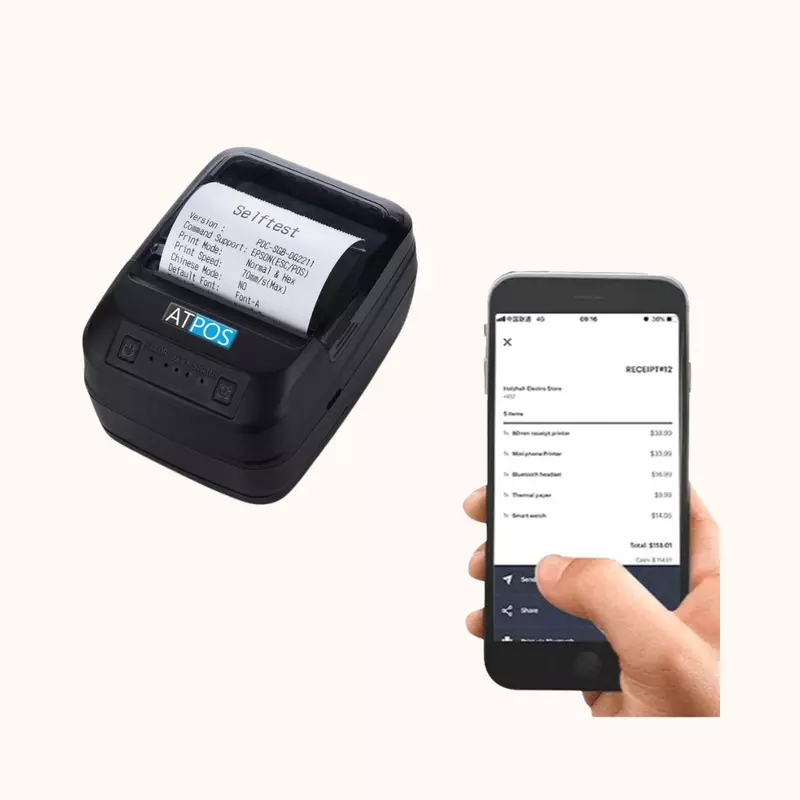

Atpos HL450 58mm Portable Thermal Receipt Printer | Bluetooth | Rechargeable

Printing Method

Thermal Line

Printing Width

48mm

Resolution

384 dots/line (8dots/mm, 203dpi)

Printing Speed

70-90 mm/s (MAX)

Interface

USB + B T

Line spacing

3.75mm (Can adjust line spacing by command)

Line No.

Font A: 32 character/Line Font B: 42 character/Line

Character Size

ANK character. Font A: 1.5×3.0mm (12×24 dots) Font B: 1.1×2.1mm (9×17 dots)

Extended character set

PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)

Bar code

1D. Bar code: UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 2D. Bar code: QRCODE

Graphics printing

Supports bitmap download and print (support each bitmap size Max. 8K, download up to 5pcs)

Sensor

Lack of paper detection

Indicator

Power Display: Support Charge Indicator: Support Lack of paper: Support

Paper Type

Thermal

Width

57.5±0.5mm

Thickness

≤0.12mm

Diameter

≤50mm

Feed

Easy (Clamshell feed)

Print commands

ESC/POS

Power Type

Rechargeable Lithium polymer battery

Capacity

2600mAh

Charger

5.0V/1A

Buffer Input

4KB

NV Flash

40KB

Physical features

Weight: 200g Dimension: 1218258(MM)

Environment

Operating: Temp: 5 ~ 45°C, Humidity: 10 ~ 80% Storage: Temp: -10 ~ 50°C, Humidity: 10 ~ 90% (No Dew)

Reliability

Print head life: 50KM (Printing Density ≤12.5)

Software Driver

Android, IOS, Linux, Windows
