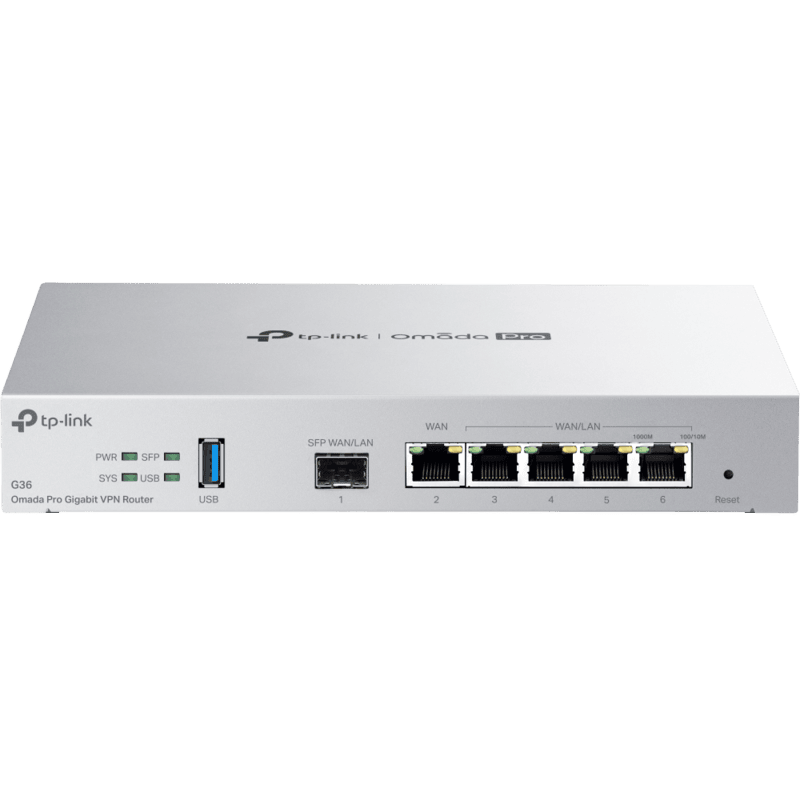

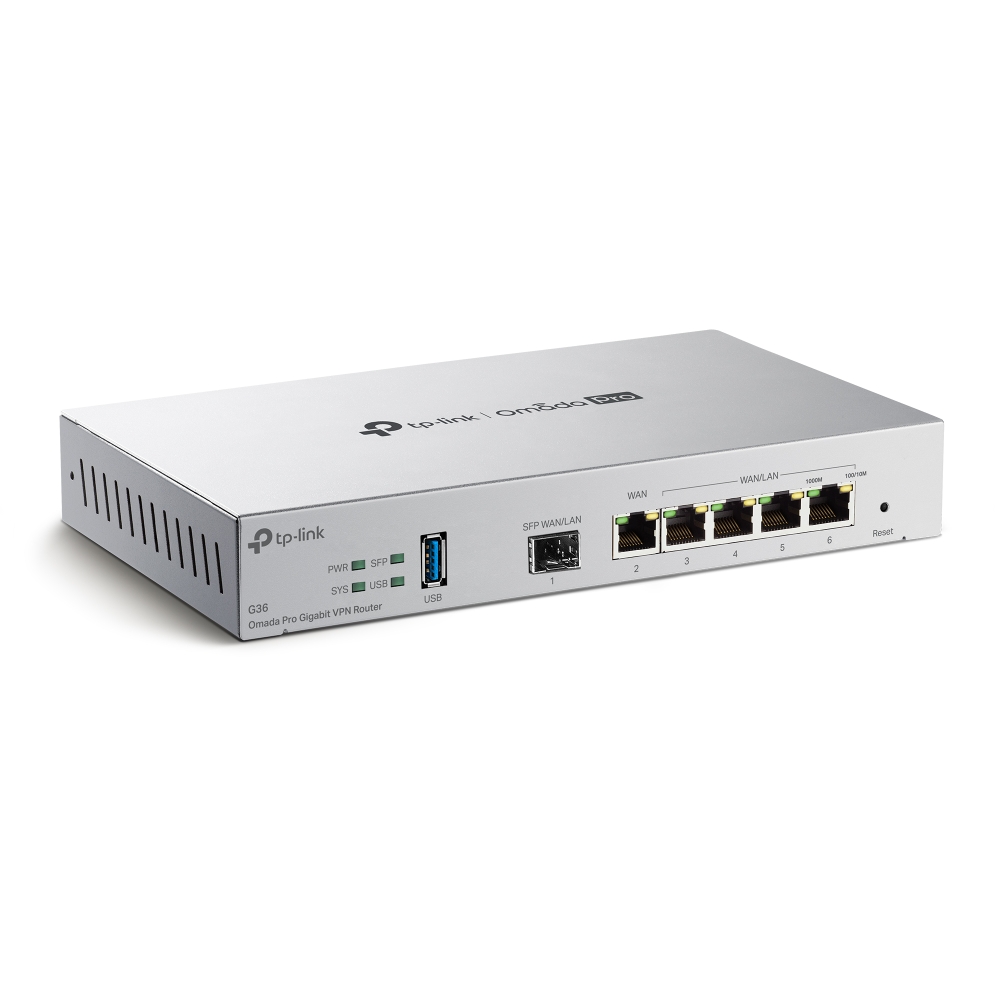

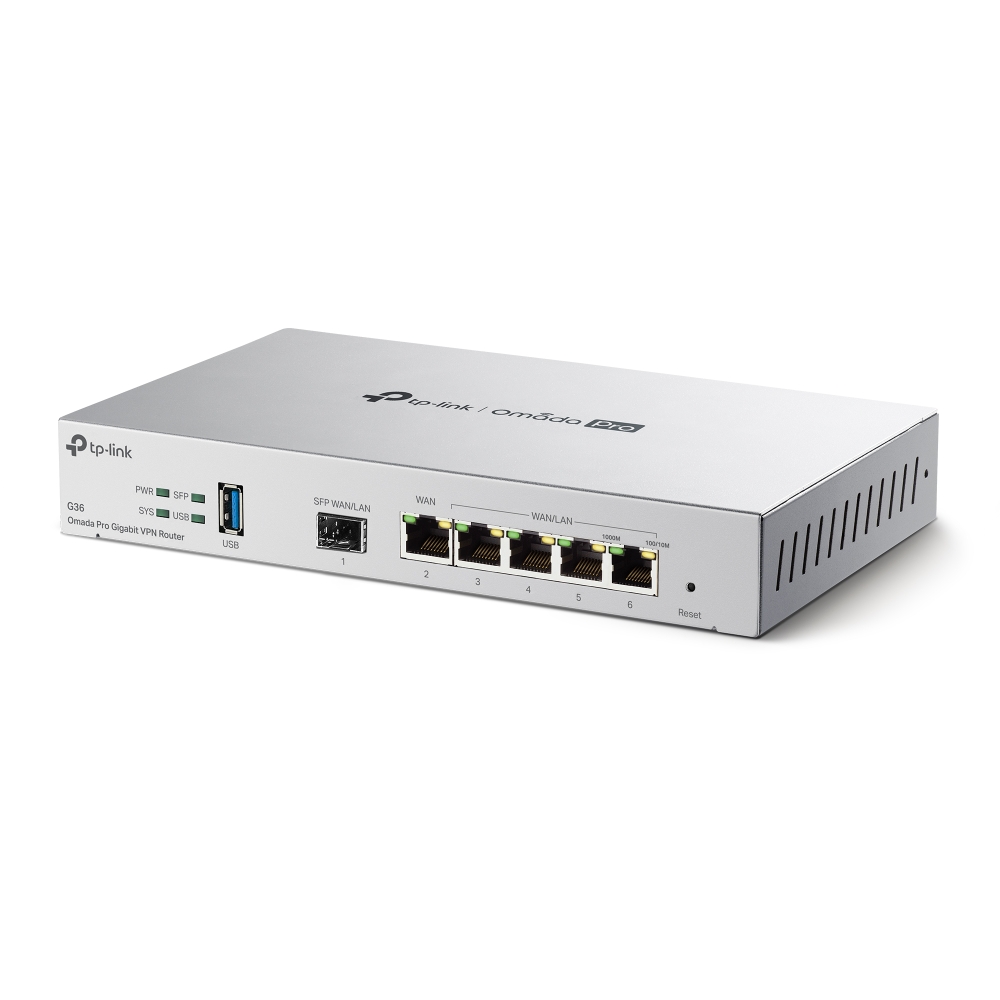

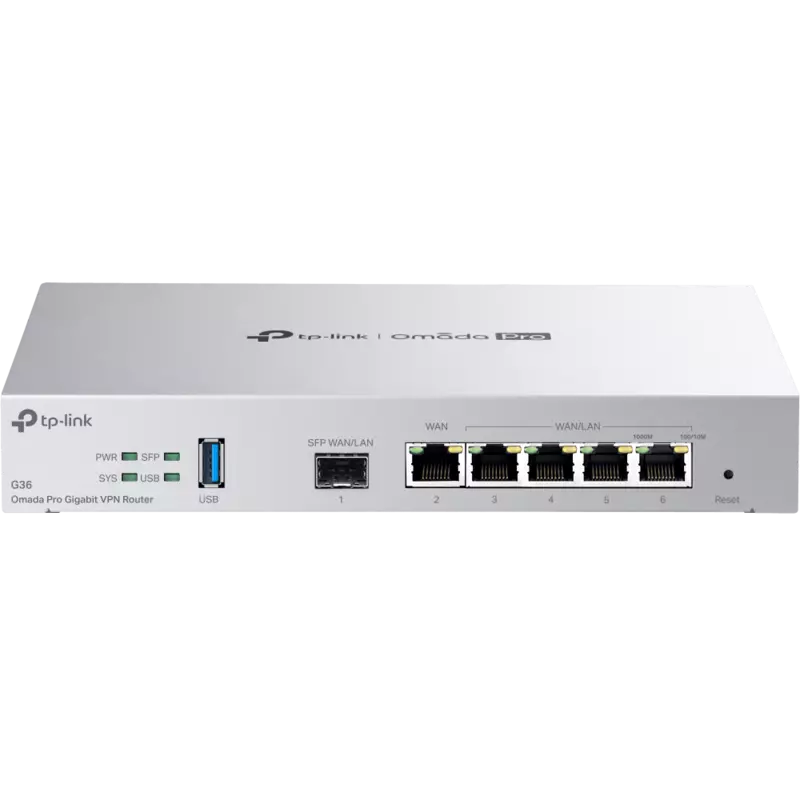

TP-Link Omada Pro Gigabit VPN Router-G36
Feature | Description |
|---|---|
Gigabit Ports | 1× Gigabit SFP & 5× Gigabit RJ45 ports for high-speed connectivity |
Flexible WAN Options | Up to 5 WAN ports with load balancing |
Secure VPN Support | Supports SSL, Wireguard, OpenVPN, GRE, IPSec, PPTP, L2TP & L2TP over IPSec |
Advanced Security | IDS/IPS, DPI, firewall, DoS defense, IP/MAC/URL filtering |
Cloud Integration | Centralized cloud management via Omada Pro with ZTP & anomaly detectiona |
Category | Key Details |
|---|---|
Security | DPI, IDS/IPS, Access Control, Filtering, ARP Inspection, Attack Defense |
Interfaces | 1×SFP WAN/LAN, 1×WAN, 4×WAN/LAN, 1×USB 3.0 |
Hardware | 128MB Flash, 512MB RAM, Fanless, Steel Case, Surge Protection |

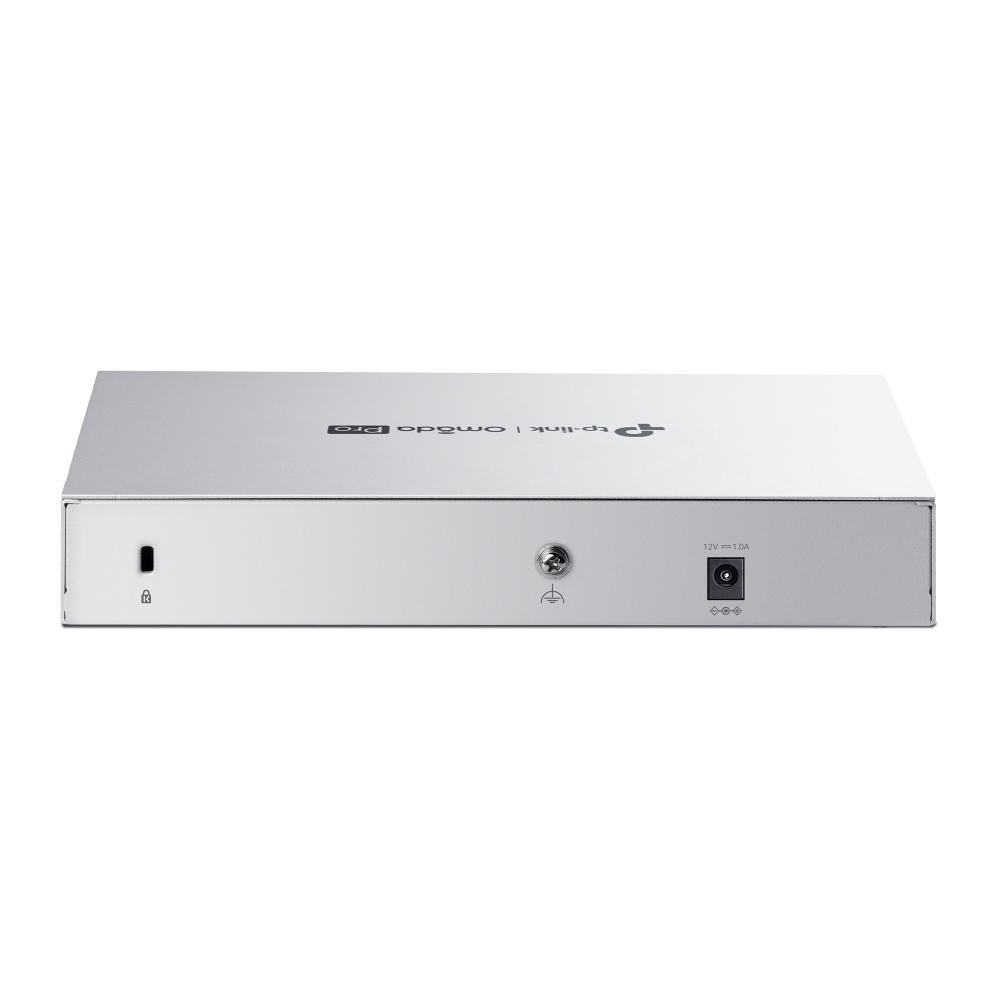

Power | 12V/1A, Max 7.5W |
Performance | 150,000 Sessions, 5,300 New Sessions/sec, NAT ≈ 940 Mbps |
VPN Support | IPSec (100 tunnels), PPTP/L2TP (50 tunnels), OpenVPN (55 tunnels), SSL (50) |
Routing & NAT | Static, Policy Routing, RIP, OSPF, Load Balance, Bandwidth Control |
IPv6 Support | Static, SLAAC, DHCPv6, PPPoE, 6to4 Tunnel |
Management | Web UI, SNMP, CLI, Omada App & Cloud Controller, Zero-Touch Provisioning |
Authentication | Web, Voucher, Radius, LDAP |
Mounting | Desktop / Wall-mount |
General
- Uses For ProductBusiness
- Connectivity TypeWired
- Router Connection TypeEthernet
